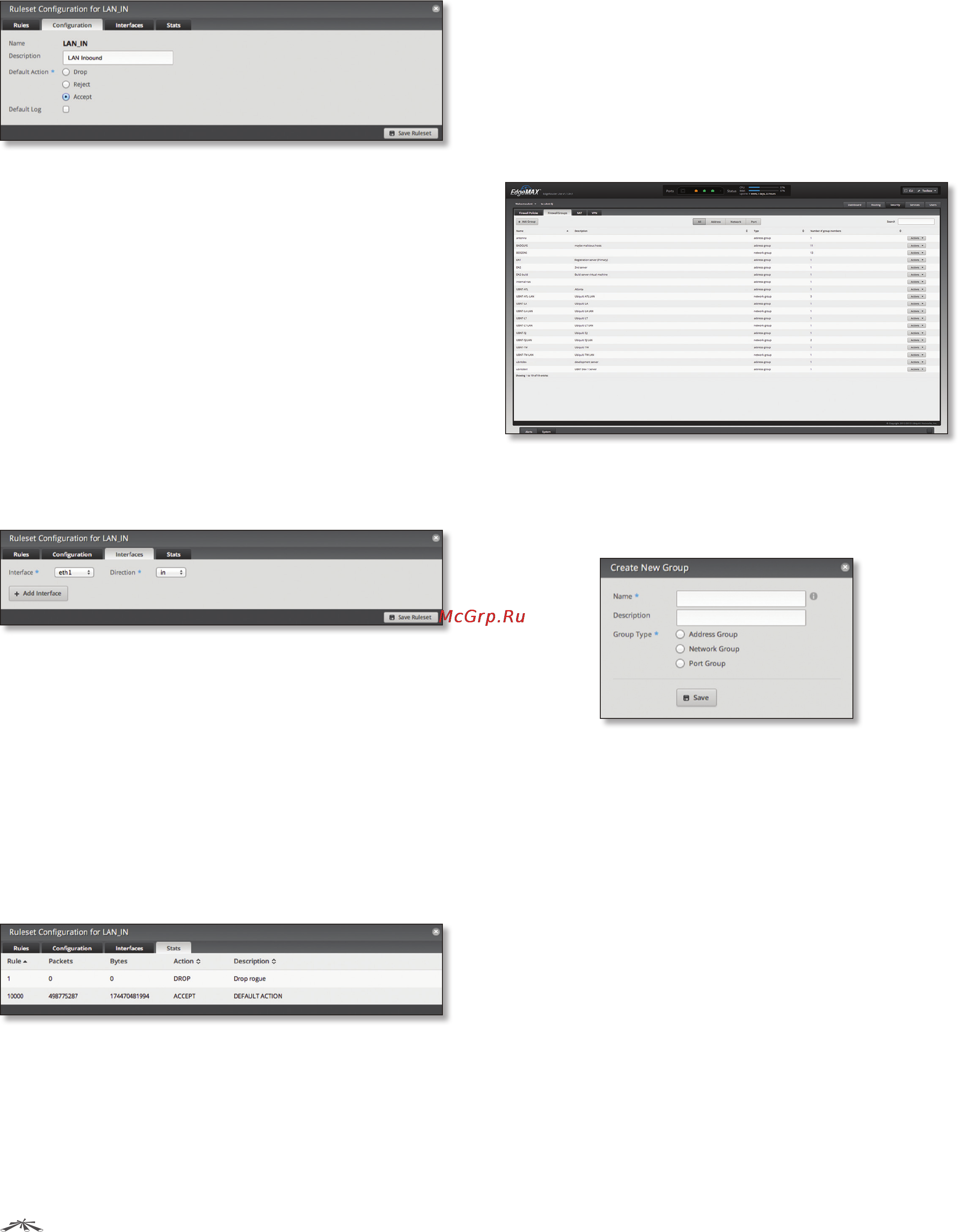

23
Chapter 6: Security TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
Configuration
Name The name of this policy is displayed.
Description Enter keywords to describe this policy.
Default action All policies have a default action if the
packets do not match any rule. Select the appropriate
default action:
• Drop Packets are blocked with no message.
• Reject Packets are blocked, and an ICMP (Internet
Control Message Protocol) message is sent saying the
destination is unreachable.
• Accept Packets are allowed.
Default Log Check this box to log packets that trigger the
default action.
Click Save Ruleset to apply your changes.
Interfaces
• Interface Select the appropriate interface from the
drop-down list.
• Direction Select the direction of the traffic flow.
- in Match inbound packets.
- out Match outbound packets.
- local Match local packets.
• Add Interface Click Add Interface to enter more
interfaces.
Click Save Ruleset to apply your changes.
Stats
A table displays the following statistics about each rule.
Click a column heading to sort by that heading.
Rule The rules are applied in the order specified. The
number of the rule in this order is displayed.
Packets The number of packets that triggered this rule is
displayed.
Bytes The number of bytes that triggered this rule is
displayed.
Action The action specified by this rule is displayed.
Description The keywords you entered to describe this
rule are displayed.
Firewall Groups
Create groups organized by IP address, network address,
or port number.
All/Address/Network/Port
Add Group To create a new group, click Add Group.
The Create New Group screen appears.
Complete the following:
• Name Enter a name for this group.
• Description Enter keywords to describe this group.
• Group Type Select the appropriate option:
- Address Group Define a group by IP address.
- Network Group Define a group by network address.
- Port Group Define a group by port numbers.
Click Save to apply your changes.
Search Allows you to search for specific text. Begin
typing; there is no need to press enter. The results are
filtered in real time as soon as you type two or more
characters.
All/Address/Network/Port Click the appropriate tab to
filter the groups as needed.
• All All groups are displayed by default.
• Address All of the address groups are displayed.
• Network All of the network groups are displayed.
• Port All of the port groups are displayed.
