19
Chapter 6: Security TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
Chapter 6: Security Tab
The Security tab displays status information about firewall
policies, firewall groups, (Network Address Translation)
rules, and PPTP VPN options. You can also configure these
policies, groups, rules, and options. Any setting marked
with a blue asterisk * is required.
You have four sub-tabs:
Firewall Policies Each firewall policy is a set of rules
applied in the order you specify.
Firewall Groups Create groups defined by IP address,
network address, or port number.
NAT View and create NAT rules.
VPN Configure the EdgeRouter as a PPTP VPN server.
Firewall Policies
A firewall policy is a set of rules with a default action.
Firewall policies are applied before SNAT (Source Network
Address Translation) and after DNAT (Destination Network
Address Translation).
To create a firewall policy:
1. Click the Firewall Groups tab, and create the
applicable firewall groups. See “Firewall Groups” on
page 23 for more information.
2. Click the Firewall Policies tab, and then click Add
Policy. Configure the basic parameters. See the
Add Policy description in the next column for more
information.
3. Configure the details of the firewall policy. See
“Configure the Firewall Policy” on page 20 for
more information.

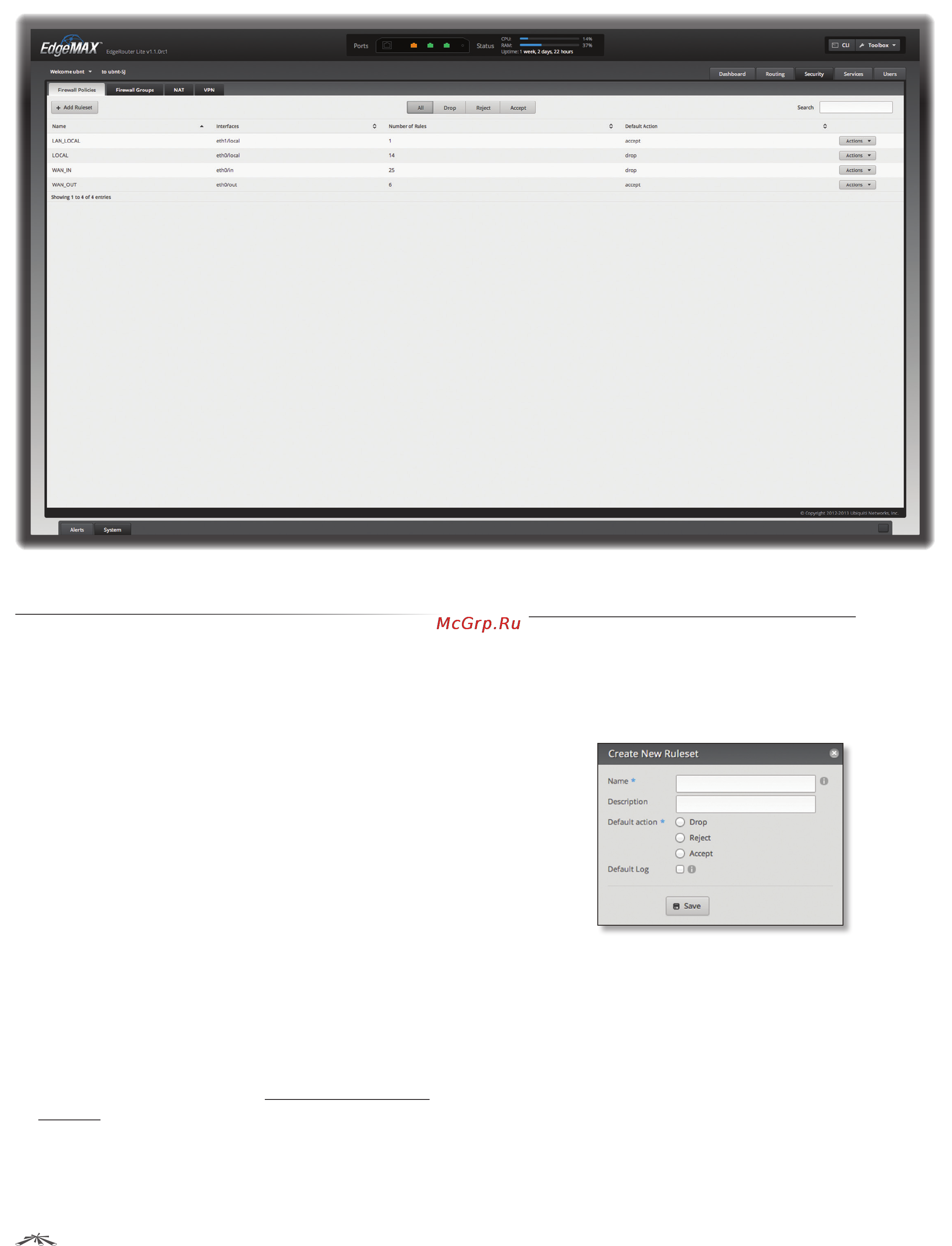

All/Drop/Reject/Accept
Add Policy To create a new policy, click Add Policy.
The Create New Ruleset screen appears.
Complete the following:
• Name Enter a name for this policy.
• Description Enter keywords to describe this policy.
• Default action All policies have a default action if the
packets do not match any rule. Select the appropriate
default action:
- Drop Packets are blocked with no message.
- Reject Packets are blocked, and an ICMP (Internet
Control Message Protocol) message is sent saying the
destination is unreachable.
- Accept Packets are allowed through the firewall.
