11
Chapter 4: Dashboard TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
DHCP
The DHCP server status and numbers of active and
inactive servers are displayed. Click DHCP to display the
Services tab. Go to “DHCP Server” on page 28 for more
information.

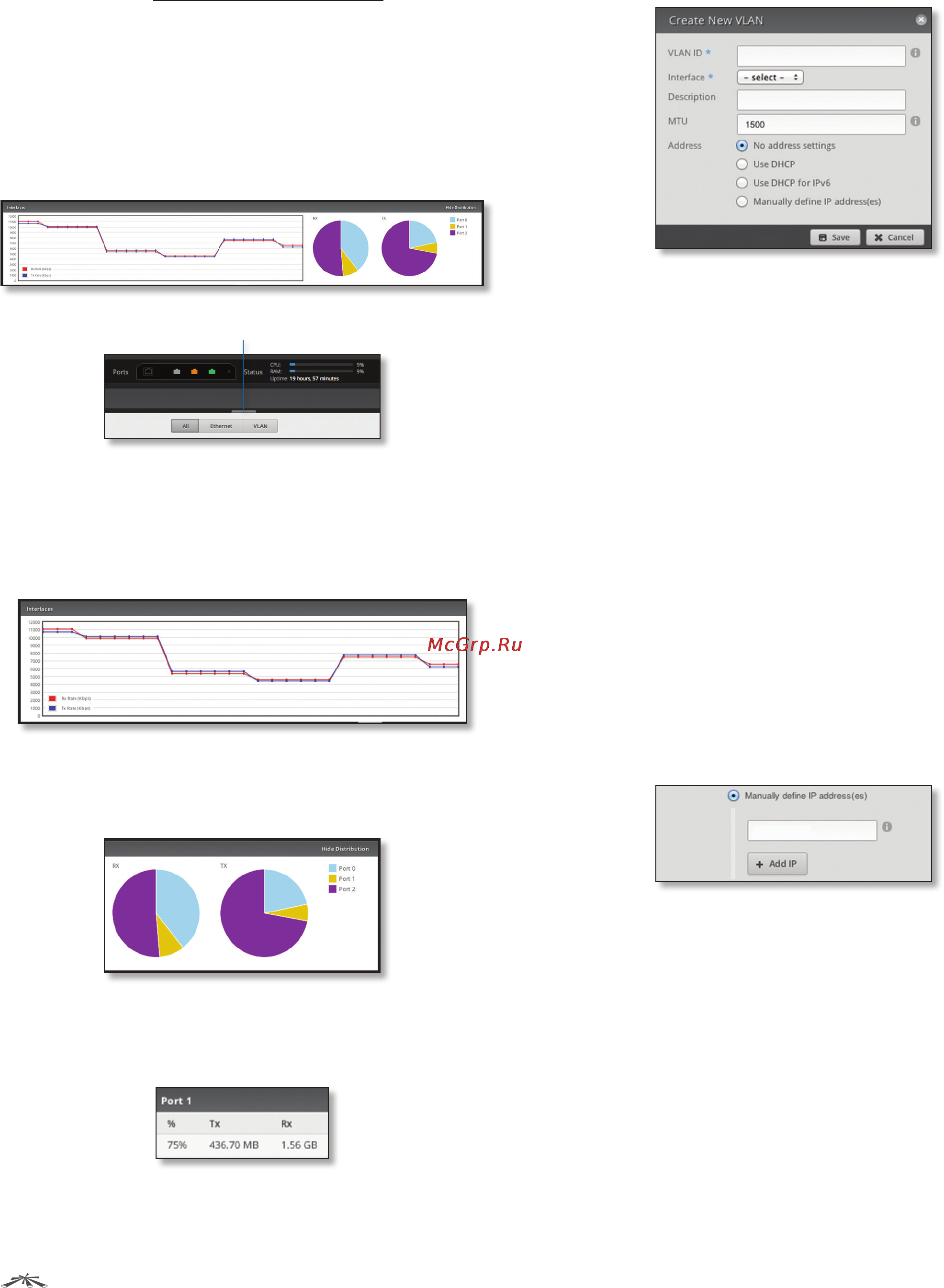

Interfaces
Distribution
Click Hide Distribution to hide the Interfaces > Distribution
section. Click the remaining open/close tab to display the
Interfaces > Distribution section again.
Open/Close Tab
The RX Rate and TX Rate graph displays the current data
traffic in both graphical and numerical form. The graph
scale and throughput dimension (Mbps, for example)
change dynamically depending on the mean throughput
value. The statistics are updated automatically.
The RX and TX pie charts display the data traffic allocated
among the ports of the EdgeRouter. The pie charts are
updated automatically.
Place your mouse over a port’s portion of the pie chart to
view its percentage of data traffic allocation, TX (amount
of transmitted data), and RX (amount of received data).
All/Ethernet/VLAN
Add VLAN To create a new VLAN, click Add VLAN.
The Create a New VLAN screen appears.
• VLAN ID The VLAN ID is a unique value assigned to
each VLAN at a single device; every VLAN ID represents
a different VLAN. The VLAN ID range is 2 to 4094.
• Interface Select the appropriate interface.
• Description Enter keywords to describe this VLAN.
• MTU Enter the MTU (Maximum Transmission Unit)
value, which is the maximum packet size (in bytes) that a
network interface can transmit. The default is 1500.
• Address Select one of the following:
- No address settings The VLAN uses no address
settings. (In most cases, an address is needed.)
- Use DHCP The VLAN acquires network settings from
a DHCPv4 server.
- Use DHCP for IPv6 The VLAN acquires network
settings from a DHCPv6 server.
- Manually define IP address(es) Enter the
static IP address (example: 192.0.2.1/24 for IPv4
or 2001:db8::1/32 for IPv6). Click Add IP to enter
additional IP addresses.
Click Save to apply your changes, or click Cancel.
Search Allows you to search for specific text. Begin
typing; there is no need to press enter. The results are
filtered in real time as soon as you type two or more
characters.
All/Ethernet/VLAN Click the appropriate tab to filter the
interfaces as needed.
• All All interfaces are displayed by default.
• Ethernet All of the Ethernet interfaces are displayed.
• VLAN All VLANs are displayed.
