38
Appendix A: Command Line InterfaceEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
Appendix A: Command Line
Interface
Overview
The Command Line Interface (CLI) is available if you
need to configure and monitor advanced features on the
EdgeRouter or prefer configuration by command line. The
CLI provides direct access to standard Linux tools and shell
commands. This chapter explains how to access the CLI
and describes a basic set of frequently used commands.
Access the CLI
There are four methods you can use to access the CLI:
• terminal emulator Go to the following section, Connect
to the Console Port.
• SSH If you are using the console port, go to the
following section, Connect to the Console Port; otherwise,
go to “Access Using SSH” on page 39.
• Telnet If you are using the console port, go to the
following section, Connect to the Console Port; otherwise,
go to “Access Using Telnet” on page 39.
• EdgeOS Configuration Interface Go to “Access Using
the EdgeOS Configuration Interface” on page 40.
Connect to the Console Port
Instructions may vary slightly, depending on your specific
terminal emulator.

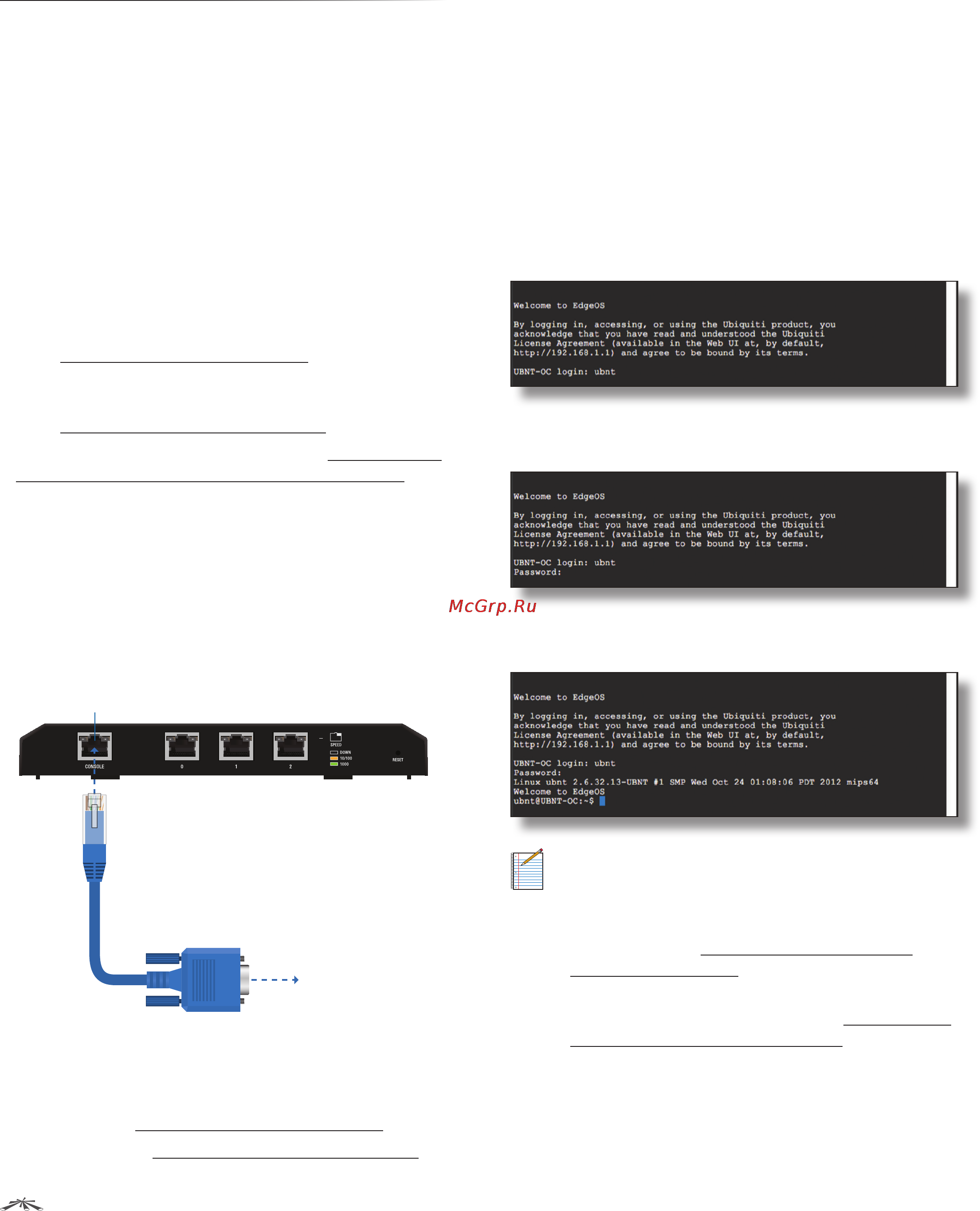

1. Use a RJ45 to DB9, serial console cable, also known
as a rollover cable, to connect the Console port of the
EdgeRouter to your computer. (If your computer does
not have a DB9 port, then you will also need a DB9
adapter.)
Computer
Console
2. Follow the appropriate set of instructions:
• terminal emulator Go to the following section,
Access Using a Terminal Emulator.
• SSH Go to “Access Using SSH” on page 39.
• Telnet Go to “Access Using Telnet” on page 39.
Access Using a Terminal Emulator
Instructions may vary slightly, depending on your specific
terminal emulator.
1. Open the terminal emulator on your computer, and
configure it with the following serial port settings:
• Baud rate 115200
• Stop bits 8
• Parity 1
• Flow control NONE
2. Select Serial as the connection type.
3. Click Open to connect to the EdgeRouter.
4. At the ubnt login prompt, enter the username (the
default is ubnt).
5. At the Password prompt, enter the password (the
default is ubnt).
6. For help with commands, you can either press the ? key
or enter show and press the ? key.
Note: To enhance security, we recommend that you
change the default login using at least one of the
following options:
• Set up a new user account (preferred option).
For details, go to “Remove the Default User
Account” on page 42.
• Change the default password of the ubnt login.
Use the set command as detailed in “Remove the
Default User Account” on page 42.
