10
Chapter 4: Dashboard TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.

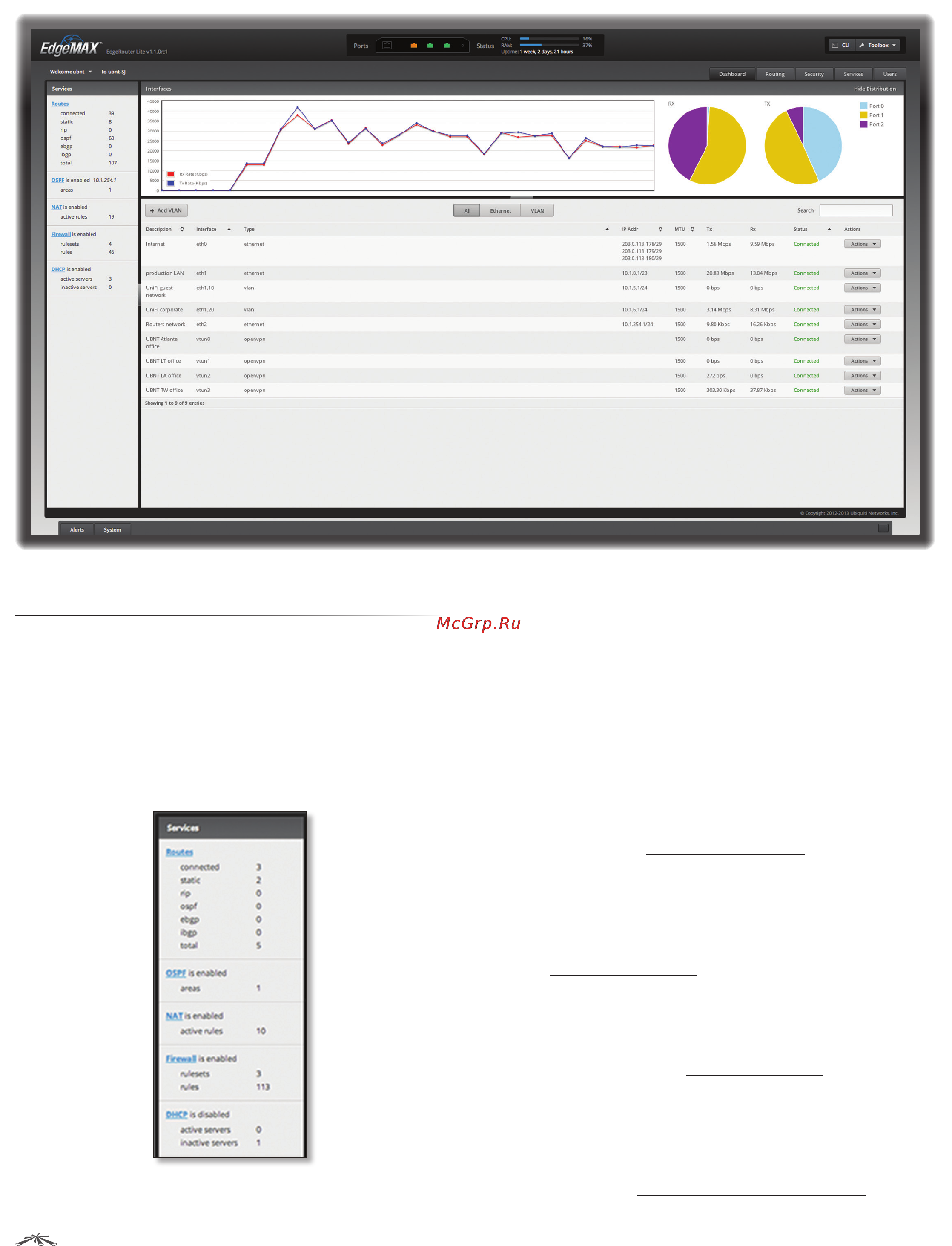

Chapter 4: Dashboard Tab
The Dashboard tab displays status information about
services and interfaces. You can also configure interfaces
and Virtual Local Area Networks (VLANs). Any setting
marked with a blue asterisk * is required.
Services
Status information is displayed. Each heading is a
convenient link to the appropriate tab.
Routes
The following route types are listed:
• Connected
• Static
• RIP (Routing Information Protocol)
• OSPF (Open Shortest Path First)
• EBGP (Exterior Border Gateway Protocol)
• IBGP (Interior Border Gateway Protocol)
The number of each route type and the total number of
routes are displayed. Click Routes to display the Routing
> Routes tab. Go to “Routes” on page 14 for more
information.
OSPF
The OSPF status, settings, and number of areas are
displayed. Click OSPF to display the Routing > OSPF tab.
Go to “OSPF” on page 16 for more information.
NAT
The NAT (Network Address Translation) status and number
of NAT rules are displayed. Click NAT to display the
Security > NAT tab. Go to “NAT” on page 24 for more
information.
Firewall
The firewall status and numbers of sets and rules are
displayed. Click Firewall to display the Security > Firewall
Policies tab. Go to “Firewall Policies” on page 19 for
more information.
