22

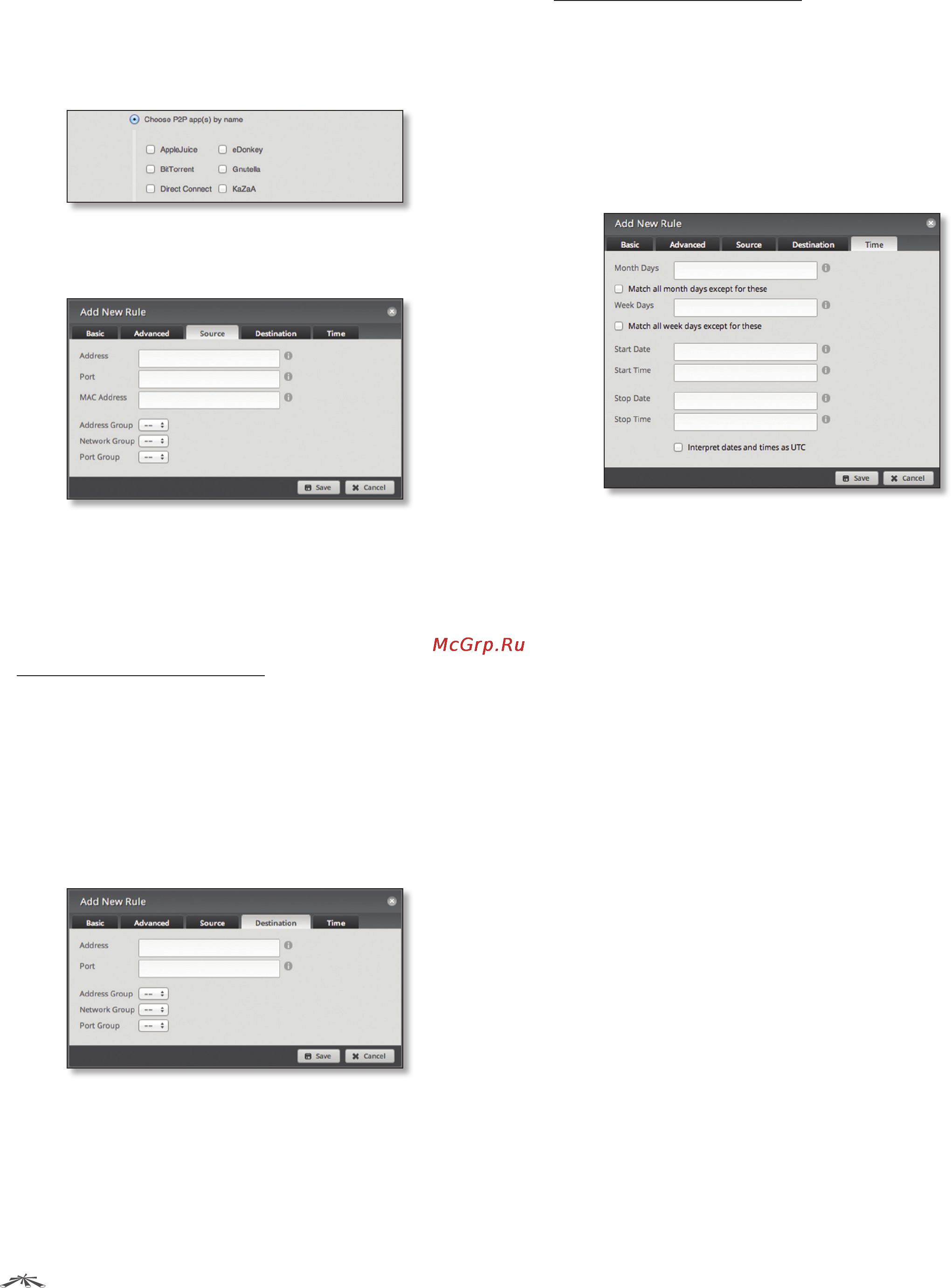

Chapter 6: Security TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
• P2P Match P2P (Peer-to-Peer) applications.
- None Do not match P2P connections.
- All Match all P2P connections.
- Choose P2P app(s) by name Match packets of the
selected P2P application(s). Check the box of any P2P
application on this list to select it.
Click Save to apply your changes, or click Cancel.
Source
• Address Enter the IP address of the source.
• Port Enter the port number or range of the source.
• MAC Address Enter the MAC address of the source.
• Address Group / Network Group / Port Group Firewall
groups are created on the Firewall Groups tab; see
“Firewall Groups” on page 23 for more information.
Select the appropriate group(s); you can specify up to
two groups maximum in these combinations:
• An address group and port group
• A network group and port group
The packets must match both groups to apply the rule.
Click Save to apply your changes, or click Cancel.
Destination
• Address Enter the IP address of the destination.
• Port Enter the port number of the destination.
• Address Group / Network Group / Port Group Firewall
groups are created on the Firewall Groups tab; see
“Firewall Groups” on page 23 for more information.
Select the appropriate group(s); you can specify up to
two groups maximum in these combinations:
• An address group and port group
• A network group and port group
The packets must match both groups to apply the rule.
Click Save to apply your changes, or click Cancel.
Time
• Month Days Enter the days of the month when the rule
should be applied. Enter numbers in the range 1 to 31.
If you enter more than one day, use commas to separate
the numbers (example: 3, 4, 5).
- Match all month days except for these Match all
days of the month except for the selected days.
• Week Days Enter the days of the week when the rule
should be applied. Enter Sun, Mon, Tue, Wed, Thu, Fri,
or Sat. If you enter more than one day, use commas to
separate the days (example: Mon, Tue, Wed).
- Match all week days except for these Match all days
of the week except for the selected days.
• Start Date Enter the date the rule should start being
applied. Use the YYYY-MM-DD (year-month-day) format.
• Start Time Enter the time the rule should start
being applied. Use the 24-hour format, HH:MM:SS
(hours:minutes:seconds).
• Stop Date Enter the date the rule should stop being
applied. Use the YYYY-MM-DD (year-month-day) format.
• Stop Time Enter the time the rule should stop
being applied. Use the 24-hour format, HH:MM:SS
(hours:minutes:seconds).
• Interpret dates and times as UTC Check the box if
your network uses UTC.
Click Save to apply your changes, or click Cancel.
