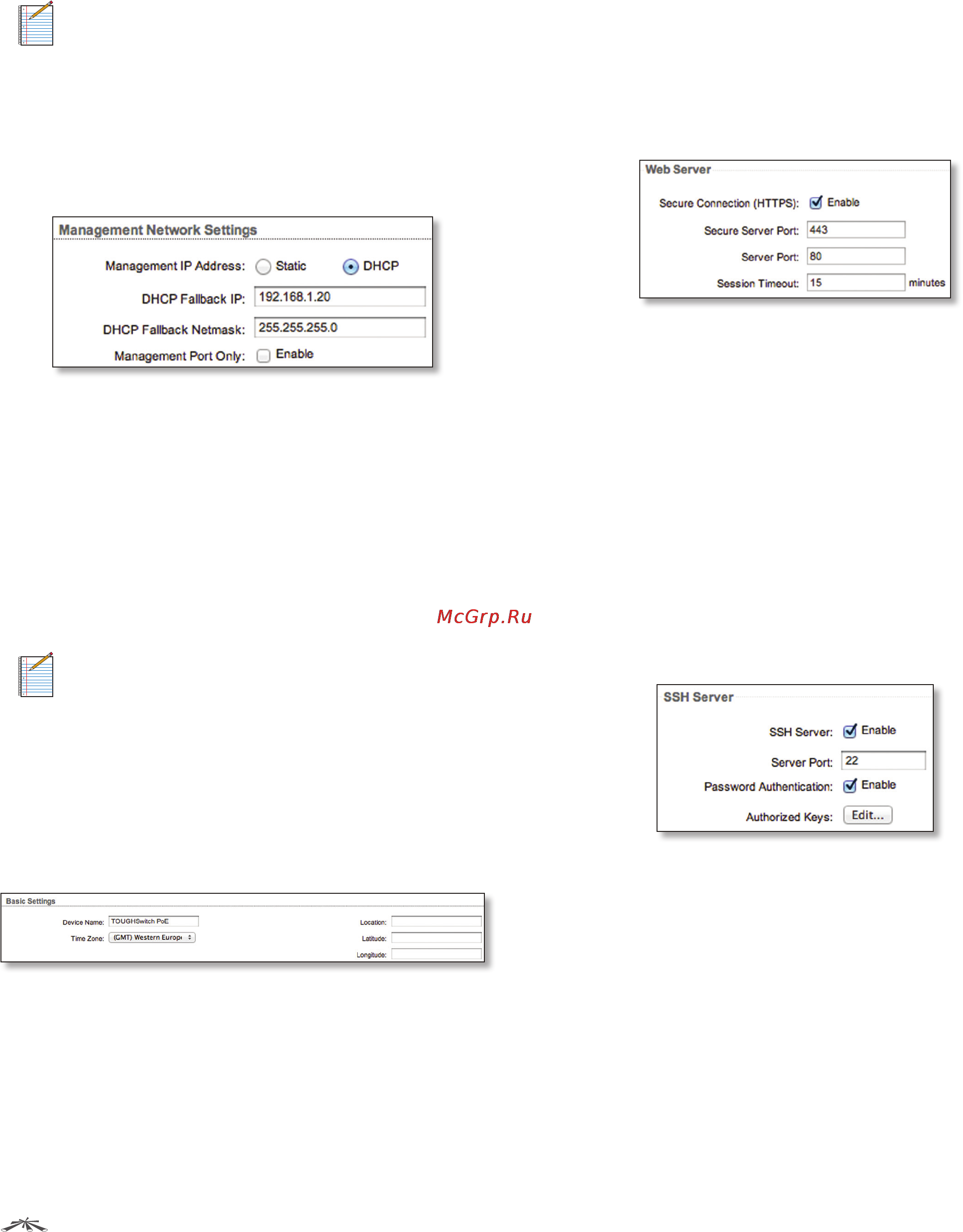

19
Chapter 5: Device Tab TOUGHSwitch
™
PoE User Guide
Ubiquiti Networks, Inc.
- Secondary DNS IP Specify the IP address of the
secondary DNS server. This entry is optional and used
only if the primary DNS server is not responding.
• DHCP The local DHCP server assigns a dynamic IP
address, netmask, gateway IP address, and DNS address
to the TOUGHSwitch.
Note: We do not recommend the DHCP option.
The IP address may change, and you will need
to use the Discovery tool from another Ubiquiti
device or computer to discover the IP address
of the TOUGHSwitch. You can also reset the
TOUGHSwitch to its factory default settings.
(Press and hold the Reset button for more than
10 seconds.) Its default IP Address is reset to
192.168.1.20.
- DHCP Fallback IP Specify the IP address the
TOUGHSwitch should use if a DHCP server is not
found. The default is 192.168.1.20.
- DHCP Fallback Netmask Specify the netmask the
TOUGHSwitch should use if a DHCP server is not
found. The default is 255.255.255.0.
- Management Port Only By default, this option is
disabled and you can manage the TOUGHSwitch
through any port. To restrict management access to
only the Management port, check this box.
Note: The Management Port Only option must be
disabled if you want traffic to flow between the
Management port and numbered ports. Traffic
will be limited to 10/100 Mbps and, under heavy
load, may cause performance degradation of the
TOUGHSwitch.
Basic Settings
The Basic Settings configure the device, date, and location
settings of the TOUGHSwitch.
Device Name Specify the Device Name (host name),
which is the system-wide device identifier. The SNMP
agent reports it to authorized management stations. The
Device Name will be used in popular router operating
systems, registration screens, and discovery tools.
Time Zone Specify the time zone in relation to Greenwich
Mean Time (GMT). The default is (GMT) Western Europe.
Location Enter a description of the device’s location.
Latitude Enter the latitude of the device’s location in
decimal format, if available. Use a minus sign (-) to indicate
a latitude south of the equator.
Longitude Enter the latitude of the device’s location in
decimal format, if available. Use a minus sign (-) to indicate
a longitude west of the Prime Meridian.
Management Connection Settings
The Management Connection Settings section configures
system connection services: Web Server, Telnet Server, and
SSH Server.
Web Server
The following Web Server parameters can be set:
Secure Connection (HTTPS) By default, the web server
uses secure HTTPS mode.
• Secure Server Port If secure HTTPS mode is used,
specify the TCP/IP port of the web server. The default is
443.
Server Port If HTTP mode is used, specify the TCP/IP port
of the web server. The default is 80.
Session Timeout Specify the maximum timeout before
the session expires. Once a session expires, you must log
in again using the username and password. The default is
15 minutes.
SSH Server
The following SSH Server parameters can be set:
SSH Server SSH access to the device is enabled by
default.
• Server Port Specify the TCP/IP port of the SSH server.
The default is 22.
• Password Authentication By default, this option is
enabled and you must authenticate using administrator
credentials to grant SSH access to the device. If you
disable this option, then an authorized key is required.
• Authorized Keys Click Edit to import a public key file
for SSH access to the device instead of using an admin
password.
