Ubiquiti TOUGHSwitch PoE [7/43] Back panel

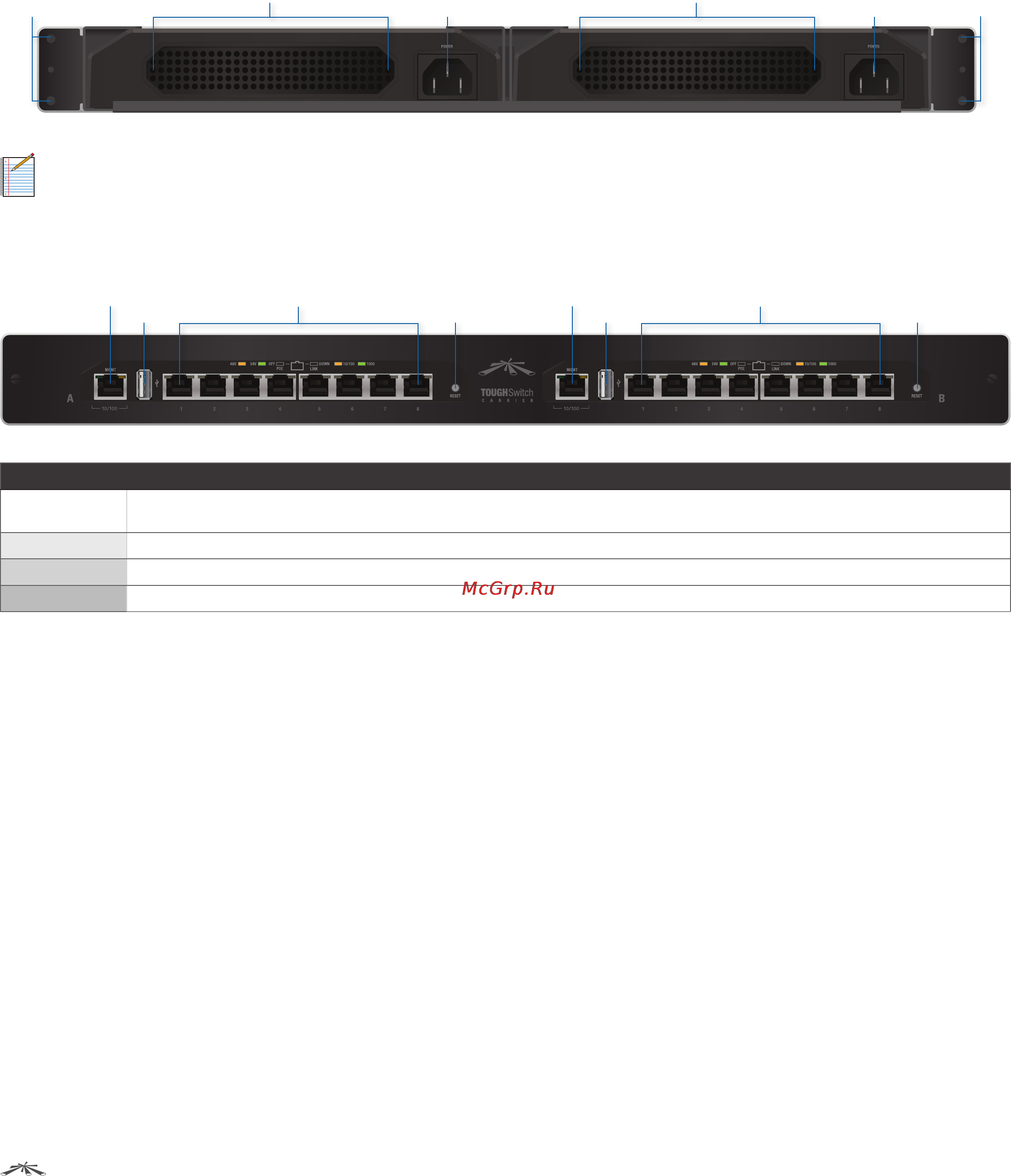

![Ubiquiti TOUGHSwitch PoE [7/43] Back panel](/views2/1072914/page7/bg7.png)
4
Chapter 1: OverviewTOUGHSwitch
™
PoE User Guide
Ubiquiti Networks, Inc.
TOUGHSwitch PoE CARRIER
A and B designate the two 8-Port TOUGHSwitch PoE PROs housed in the rack. This may be useful for the Location setting on
the Device tab in the Configuration Interface.
Back Panel
TOUGHSwitch B TOUGHSwitch A
Power
Mounting
Screws
Ventilation Holes
Power
Ventilation Holes
Mounting
Screws
Note: There are additional ventilation holes on the top and sides of the TOUGHSwitch.
Front Panel Ports
TOUGHSwitch A TOUGHSwitch B
Management
Ports 1-8
ResetUSB
Management
Ports 1-8
ResetUSB
Interface Description
Management
10/100 Mbps port for management. Traffic between the Management port and numbered ports will be limited to 10/100 Mbps and,
under heavy load, may cause performance degradation of the TOUGHSwitch.
USB Reserved for future use.
1-8 10/100/1000 Mbps ports for switching and PoE (also available for management by default).
Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is already powered on.
