Chapter 7: VLANs Tab TOUGHSwitch
PoE User Guide
Ubiquiti Networks, Inc.
Chapter 7: VLANs Tab

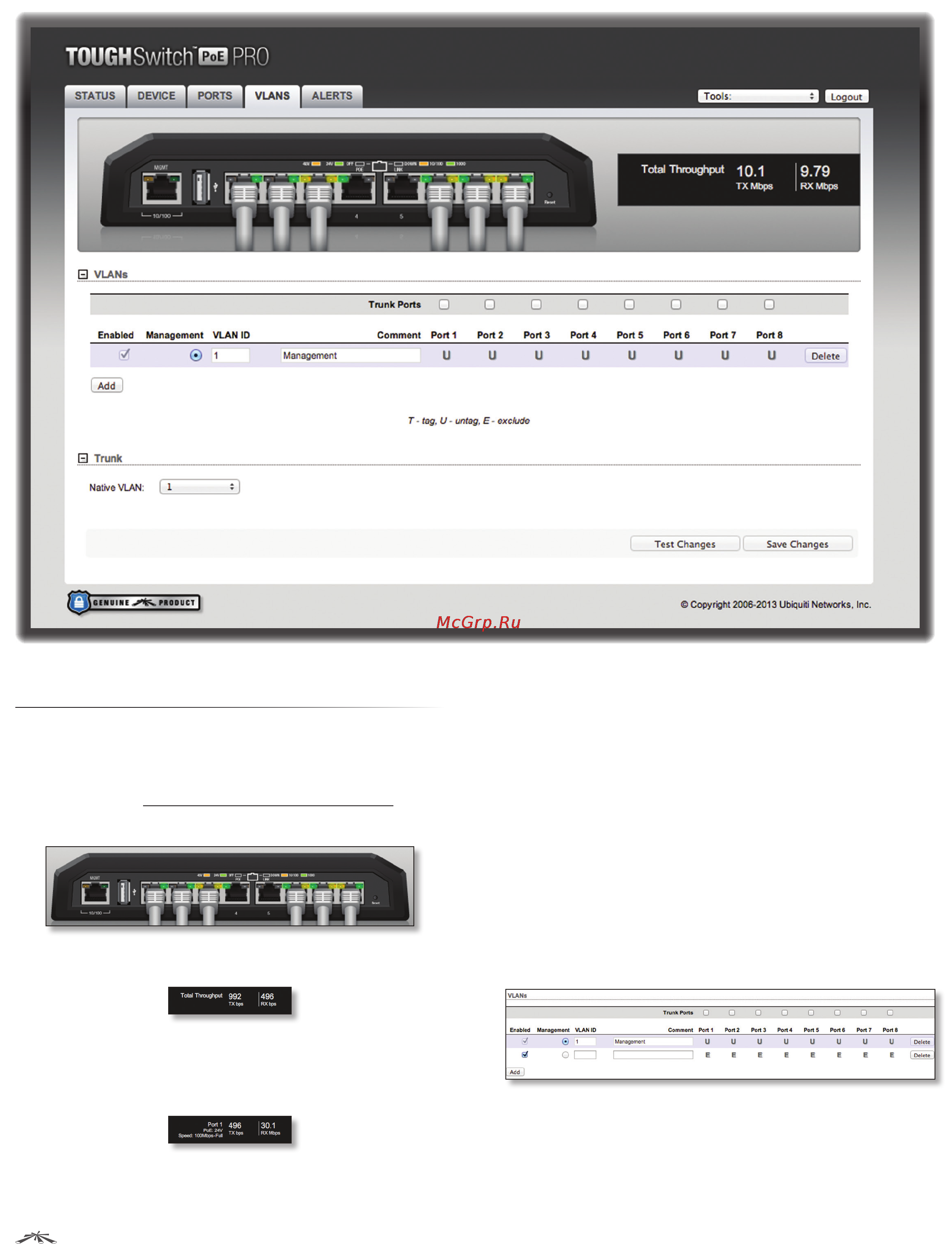

The VLANs tab configures Virtual Local Area Networks
(VLANs) and trunk ports.
The TOUGHSwitch image displays the active LEDs and
connections. See “Hardware Overview” on page 1
for more information.
Total Throughput for TX and RX are also displayed.
Place your mouse over a port to view its PoE status,
Speed setting, duplex mode, and statistics for TX and RX
throughput.
Revert Changes To cancel your changes, click Revert
Changes.
Test Changes To try the changes without saving them,
click Test Changes. To keep the changes, click Apply. If
you do not click Apply within 180 seconds (the countdown
is displayed), the device times out and resumes its earlier
configuration.
Save Changes To immediately save your changes, click
Save Changes.
VLANs
All ports belong to VLAN1, which is enabled as a
management VLAN by default. A port can belong to more
than one VLAN.
Trunk Ports Trunk mode is enabled by default. Trunk
ports carry both untagged and tagged traffic from
multiple VLANs.
