27
Chapter 7: VLANs Tab TOUGHSwitch
PoE User Guide
Ubiquiti Networks, Inc.

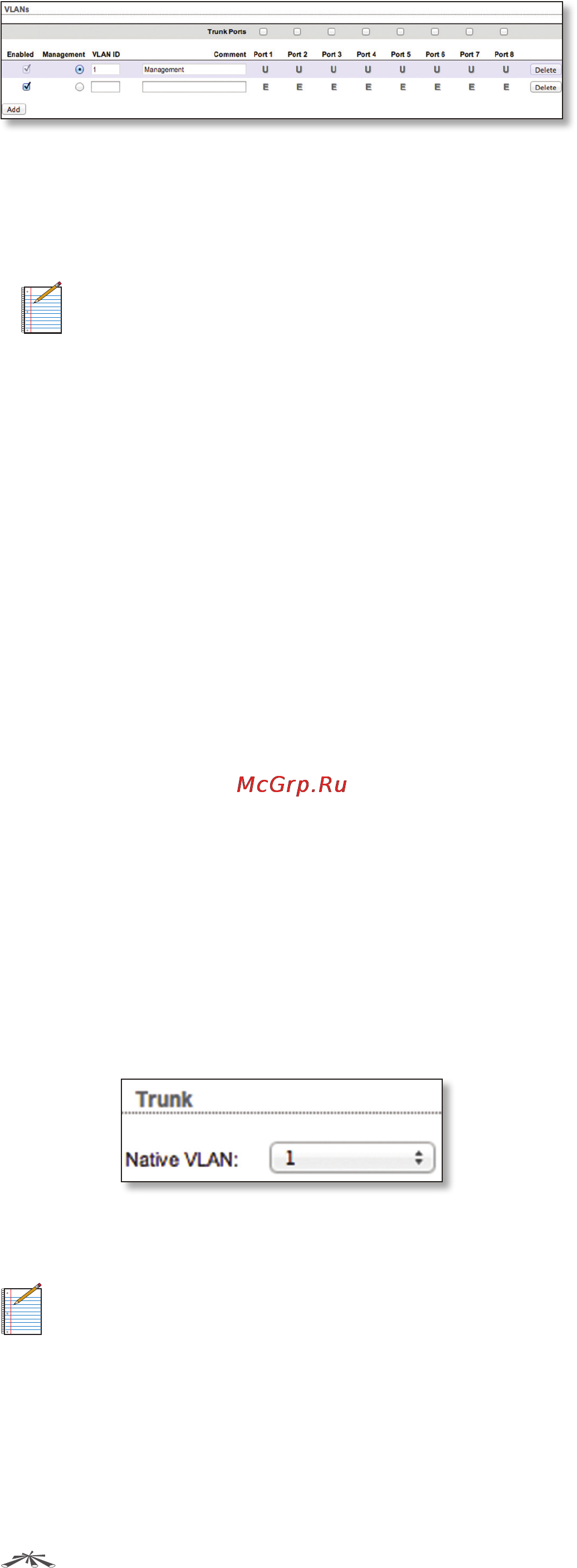

Add Create a new Virtual Local Area Network (VLAN).
Enabled Check the box to enable the VLAN.
Management Create the VLAN before you select this
option. Ensure that you have access via the new VLAN
before you choose to manage through this VLAN.
Note: If you configure a new VLAN as Management,
then VLAN 1 is no longer the management VLAN.
If you cannot access the new management VLAN,
then you are locked out of the Configuration
Interface. (If you are locked out, you can reset the
TOUGHSwitch to its factory defaults.)
VLAN ID Enter a unique VLAN ID from 2 to 4095.
Comment Enter a description of this VLAN.
Port _ For each port, assign its membership status as a
tagged or untagged member of this VLAN. You can also
exclude a port from this VLAN.
- T (tag) The port belongs to this VLAN, and VLAN tags
are included on outgoing frames. Click the letter until
it becomes a “T.
- U (untag) The port belongs to this VLAN, and VLAN
tags are excluded from outgoing frames. Click the
letter until it becomes a “U”.
- E (exclude) The port does not belong to this VLAN.
Click the letter until it becomes a “E”.
Delete Permanently removes the VLAN. If you want to
temporarily disable the VLAN, remove the check from
the Enabled box.
Trunk
You can specify an existing VLAN to be the native VLAN for
all trunk ports. Untagged frames received on trunk ports
become members of the native VLAN.
Native VLAN By default, the Native VLAN is 1. To specify a
different Native VLAN, select it from the drop-down list.
Note: Both ends of the trunk must use the same
Native VLAN.
