Ubiquiti TOUGHSwitch PoE [4/43] Introduction

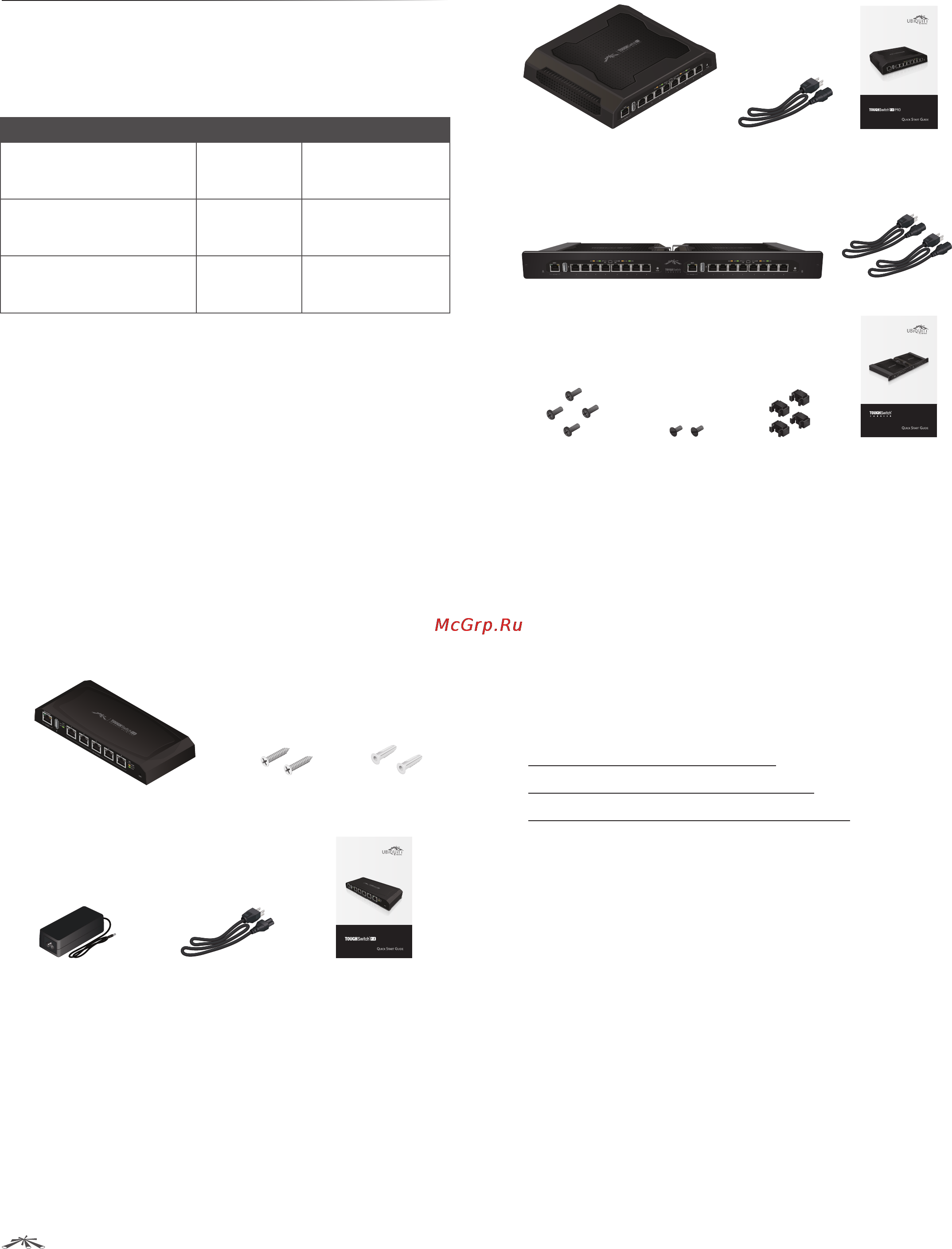

![Ubiquiti TOUGHSwitch PoE [4/43] Introduction](/views2/1072914/page4/bg4.png)
1
Chapter 1: OverviewTOUGHSwitch
™
PoE User Guide
Ubiquiti Networks, Inc.
TOUGHSwitch PoE PRO
8-Port Power over Ethernet
Managed Switch PRO
Model: TS-8-PRO
TOUGHSwitch PoE PRO Power Cord Quick Start Guide
TOUGHSwitch PoE CARRIER
TOUGHSwitch PoE CARRIER Power Cords (Qty. 2)
Rackmount
Power over Ethernet
Managed Switches
Model: TS-16-CARRIER
#10-32 x 5/8" Phillips
Screws (Qty. 4)
M3x8 Flathead
Screws (Qty. 2)
#10-32 x 5/8"
Cage Nuts (Qty. 4)
Quick Start Guide
Configuration Interface System
Requirements
• Microsoft Windows XP, Windows Vista, Windows 7,
Windows 8, Linux, or Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Apple Safari, Google
Chrome, or Microsoft Internet Explorer 8 (or above)
Hardware Overview
Proceed to the description for your TOUGHSwitch model:
• “TOUGHSwitch PoE” on page 2
• “TOUGHSwitch PoE PRO” on page 3
• “TOUGHSwitch PoE CARRIER” on page 4
Chapter 1: Overview
Introduction
Thank you for purchasing the Ubiquiti TOUGHSwitch
™
PoE,
which is part of the TOUGHSwitch series:
Name Model Description
TOUGHSwitch PoE TS-5-POE 5-port managed
switch featuring
24VPoE
TOUGHSwitch PoE PRO TS-8-PRO 8-port managed
switch featuring
24V/48V PoE
TOUGHSwitch PoE CARRIER TS-16-CARRIER Two TOUGHSwitch
PoE PROs mounted
in a rack
The TOUGHSwitch is a managed switch designed
to deliver Power over Ethernet (PoE) on the
10/100/1000ports you have configured for PoE. It also
features a variety of features, including port monitoring,
system connection and management services, Virtual
Local Area Network (VLAN) configuration, Spanning Tree
Protocol (STP), Ping Watchdog, and alerts setup.
This User Guide is designed to provide instructions about
installation of the TOUGHSwitch and to provide details
about how to set up and use the Configuration Interface.
This intuitive interface allows you to conveniently manage
your TOUGHSwitch using your web browser.
Package Contents
TOUGHSwitch PoE
TOUGHSwitch PoE M2.9x20 Screws
(Qty. 2)
M2.9 Anchors
(Qty. 2)
5-Port Power over Ethernet
Managed Switch
Model: TS-5-POE
Power Adapter
(24V, 2.5A)
Power Cord Quick Start Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s responsibility
to follow local country regulations, including operation within legal frequency channels, output
power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.
