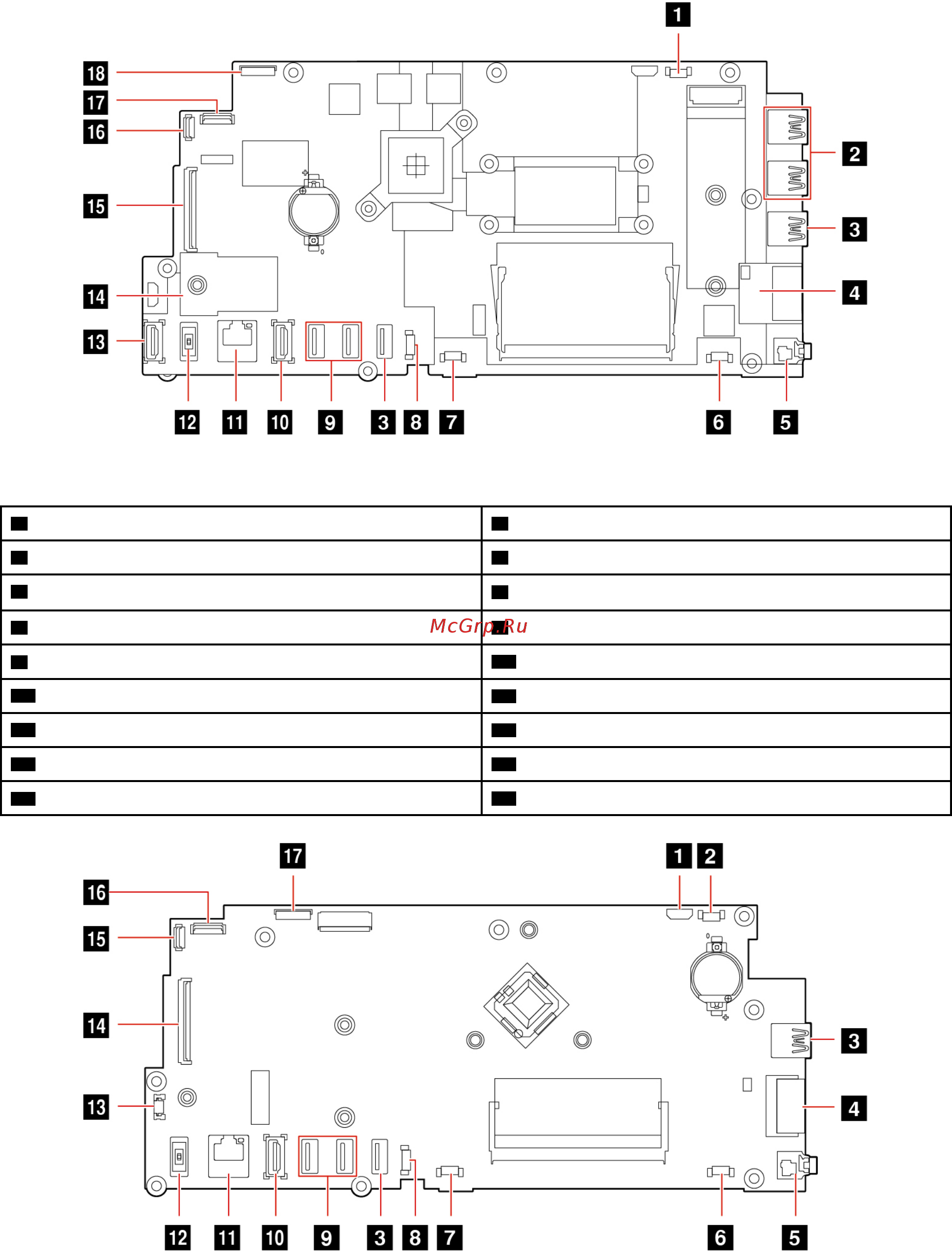

Figure 6. Parts on the system board (A340-22IWL/24IWL)
1 CAMERA & Mic 2 USB 2.0 / USB 3.0 connector
3 USB 3.1 Gen 2 connector 4 Card reader
5 Audio jack
6 Speaker connector
7 Fan connector 8 Touch connector
9 USB 2.0 connectors
10 HDMI-out connector
11 RJ45 connector
12 DC IN connector
13 HDMI-in connector 14 Power board connector
15 LVDS FFC connector 16 HDD FFC connector
17 ODD FFC connector 18 Converter connector
Figure 7. Parts on the system board (A340-22IGM/24IGM)
24 ideacentre A340 Hardware Maintenance Manual
