Lenovo IdeaCentre AIO340-22IWL (F0EB009TRK) [29/57] Parts on the system boards
![Lenovo IdeaCentre A340-22IGM (F0EA000MRK) [29/57] Parts on the system boards](/views2/1733825/page29/bg1d.png)
Parts on the system boards

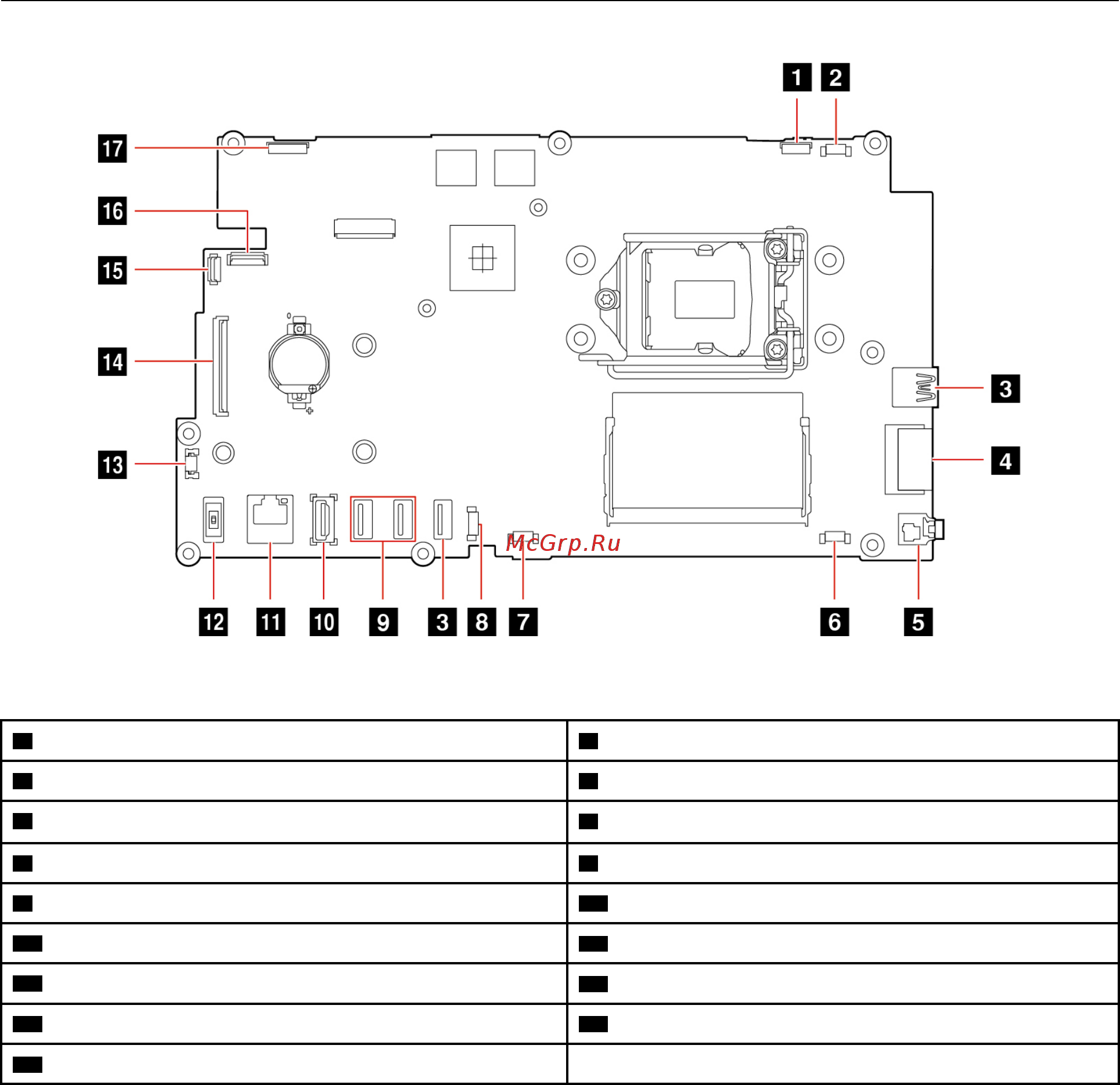

Figure 5. Parts on the system board (A340-22IBC/24IBC)
1 CAMERA & Mic 2 Mic Connector
3 USB 3.1 Gen 2 connector 4 Card reader
5 Audio jack
6 Speaker connector
7 Fan connector 8 Touch connector
9 USB 2.0 connectors
10 HDMI-out connector
11 RJ45 connector
12 DC IN connector
13 Power board connector
14 LVDS FFC connector
15 HDD FFC connector 16 ODD FFC connector
17 Converter connector
Chapter 6. Hardware locations 23
