Lenovo IdeaCentre AIO340-22IWL (F0EB009TRK) [43/57] Replacing the antennas
![Lenovo IdeaCentre AIO340-24IWL (F0E8000FRK) [43/57] Replacing the antennas](/views2/1733825/page43/bg2b.png)

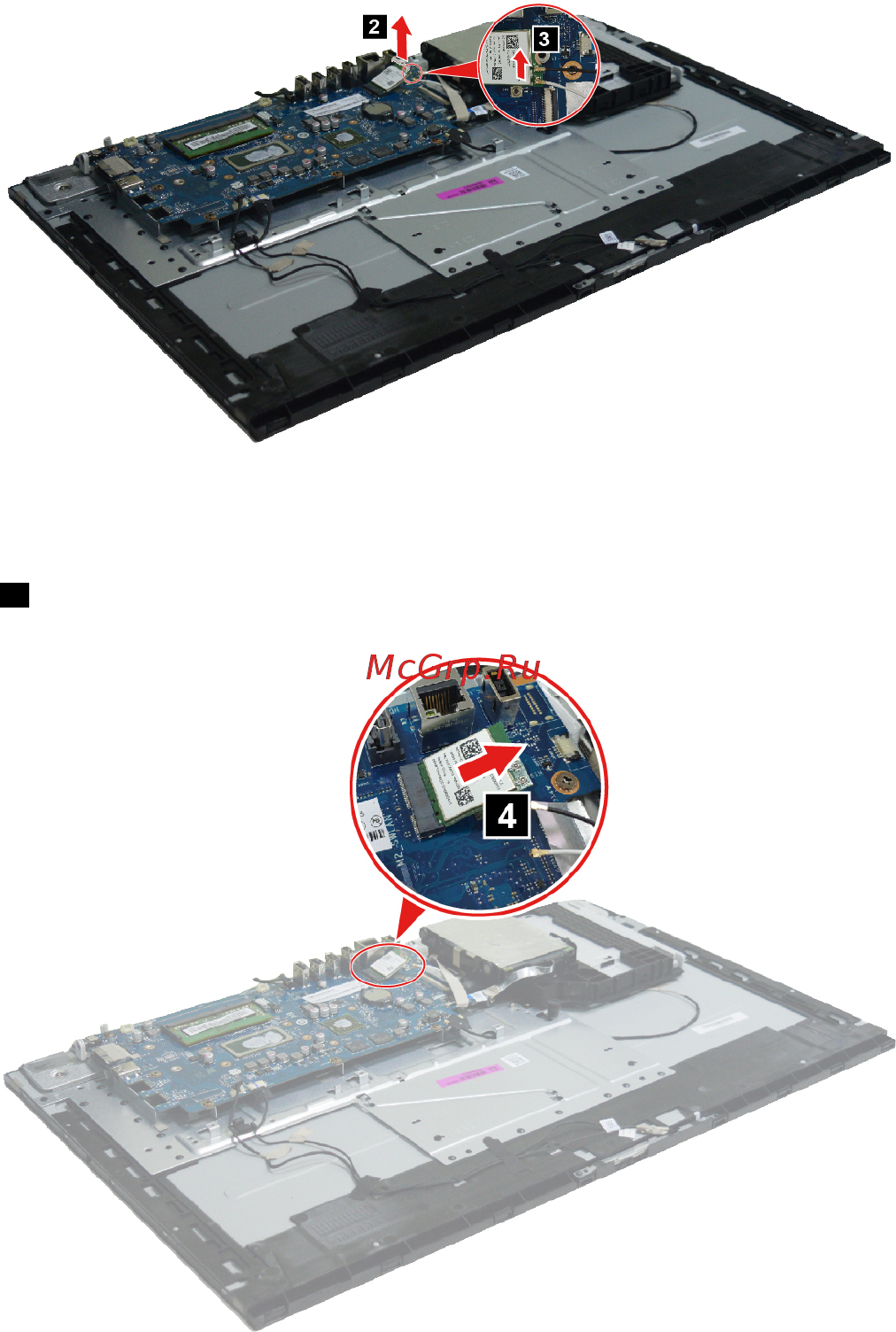

Figure 25. Removing the cover and detaching the antenna connectors
3. Remove the Wi-Fi card 4 .
Figure 26. Removing the Wi-Fi card
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 48.
Replacing the antennas
Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter
1 “Read this first: Important safety information” on page 1.
Make sure the following FRUs (or CRUs) have been removed.
“Removing the computer stand base” on page 27
“Removing the rear cover” on page 29
“Replacing the speakers” on page 30
“Replacing the hard disk drive” on page 30
“Replacing the middle frame” on page 32
“Replacing the system board frame” on page 34
“Replacing the Wi-Fi card” on page 36
Chapter 7. Installing or replacing hardware 37
