Lenovo IdeaCentre AIO340-22IWL (F0EB009TRK) [41/57] Replacing the heat sinks

Detach the hard disk drive cable connector from the system board 1 . Then unplug the hard disk drive cable

2 .

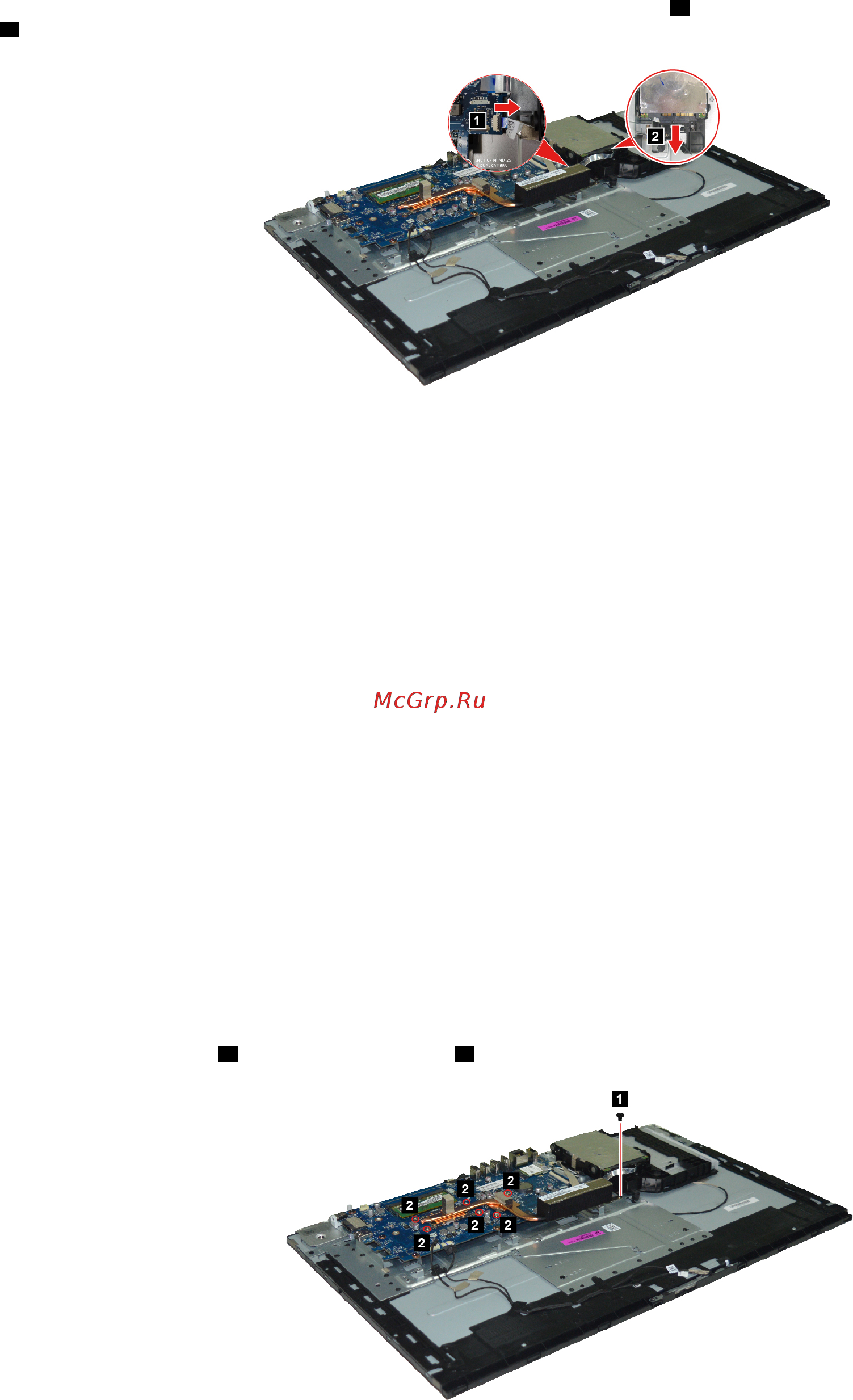

Figure 21. Removing screws and camera module

What to do next:

• To work with another piece of hardware, go to the appropriate section.

• To complete the installation or replacement, go to “Completing the parts replacement” on page 48.

Replacing the heat sinks

Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter

1 “Read this first: Important safety information” on page 1.

“Replacing the system board frame” on page 34

To remove the heat sinks, do the following:

1. Remove 1 screw

1 and loosen 6 screws 2 .

Figure 22. Removing 1 screw and loosening 6 screws

Chapter 7. Installing or replacing hardware 35
