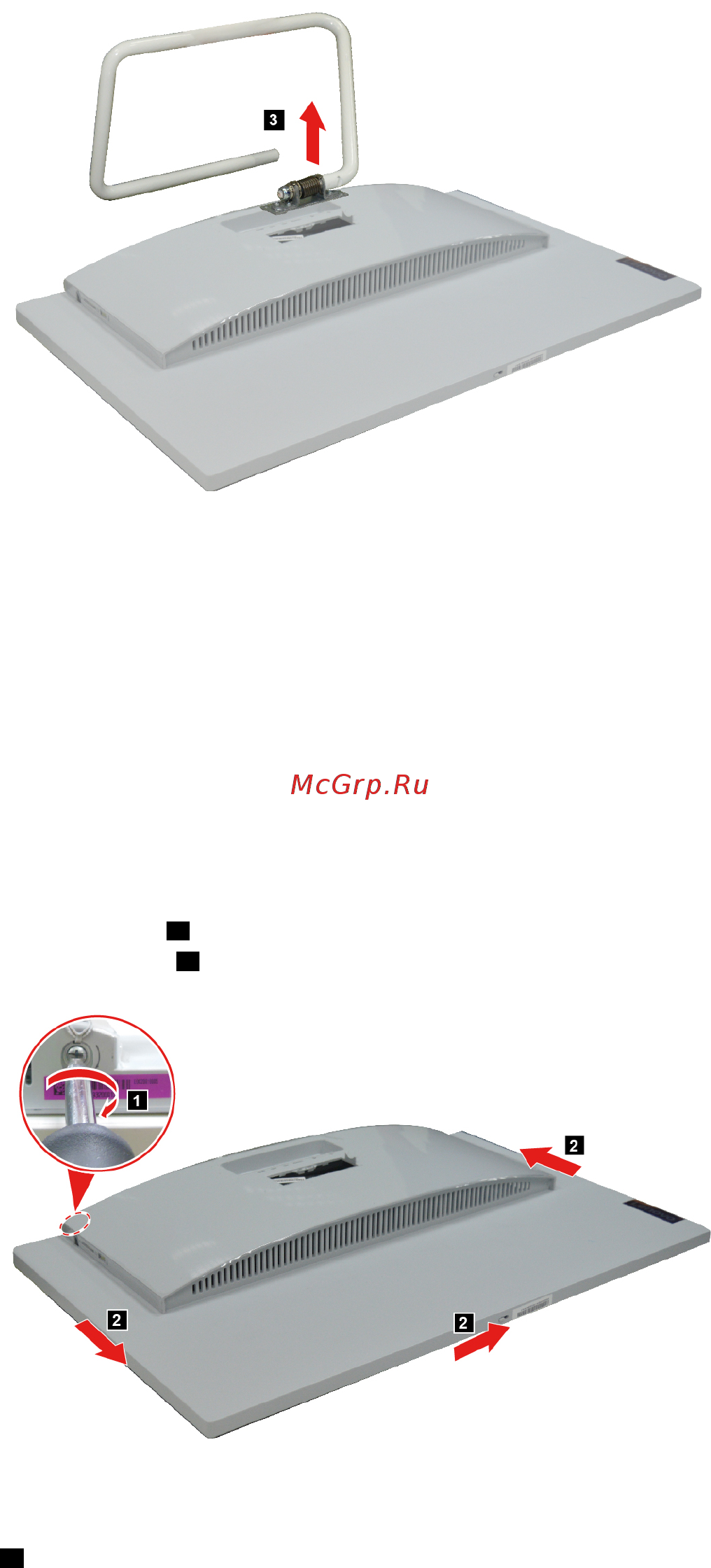

Figure 11. Removing the stand base

Removing the rear cover

Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter

1 “Read this first: Important safety information” on page 1.

Make sure the following FRUs (or CRUs) have been removed.

“Removing the computer stand base” on page 27

To remove the rear cover, do the following:

1. Twist the hand screw ring clockwise

1 until the rear cover is loosened. Then insert a pry tool to separate

the rear cover from the panel module

2 .

Figure 12. Separating the rear cover from the panel module

2. Remove the rear cover 3 .

Chapter 7. Installing or replacing hardware 29
