“Replacing the microprocessor (for selected models)” on page 41

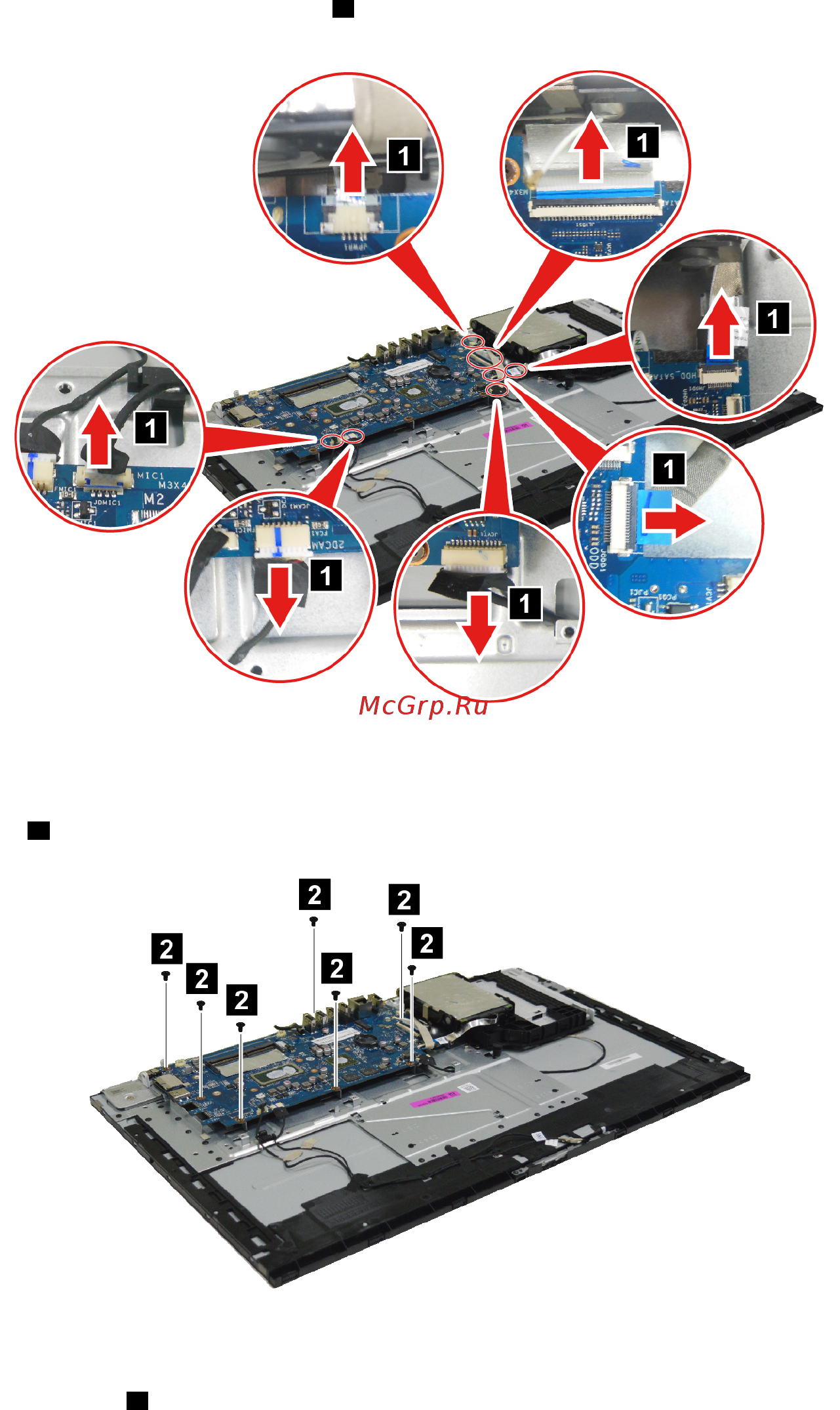

To remove the system board, do the following:
1. Detach 7 connectors from the system board
1 .
Figure 33. Detaching 7 connectors
2. Remove 7 screws 2 that secure the system board to the panel module.
Figure 34. Removing the system board
3. Remove the system board 3 .
Chapter 7. Installing or replacing hardware 43
