7
2
PANEL DESCRIPTION
New2001 New2001New2001

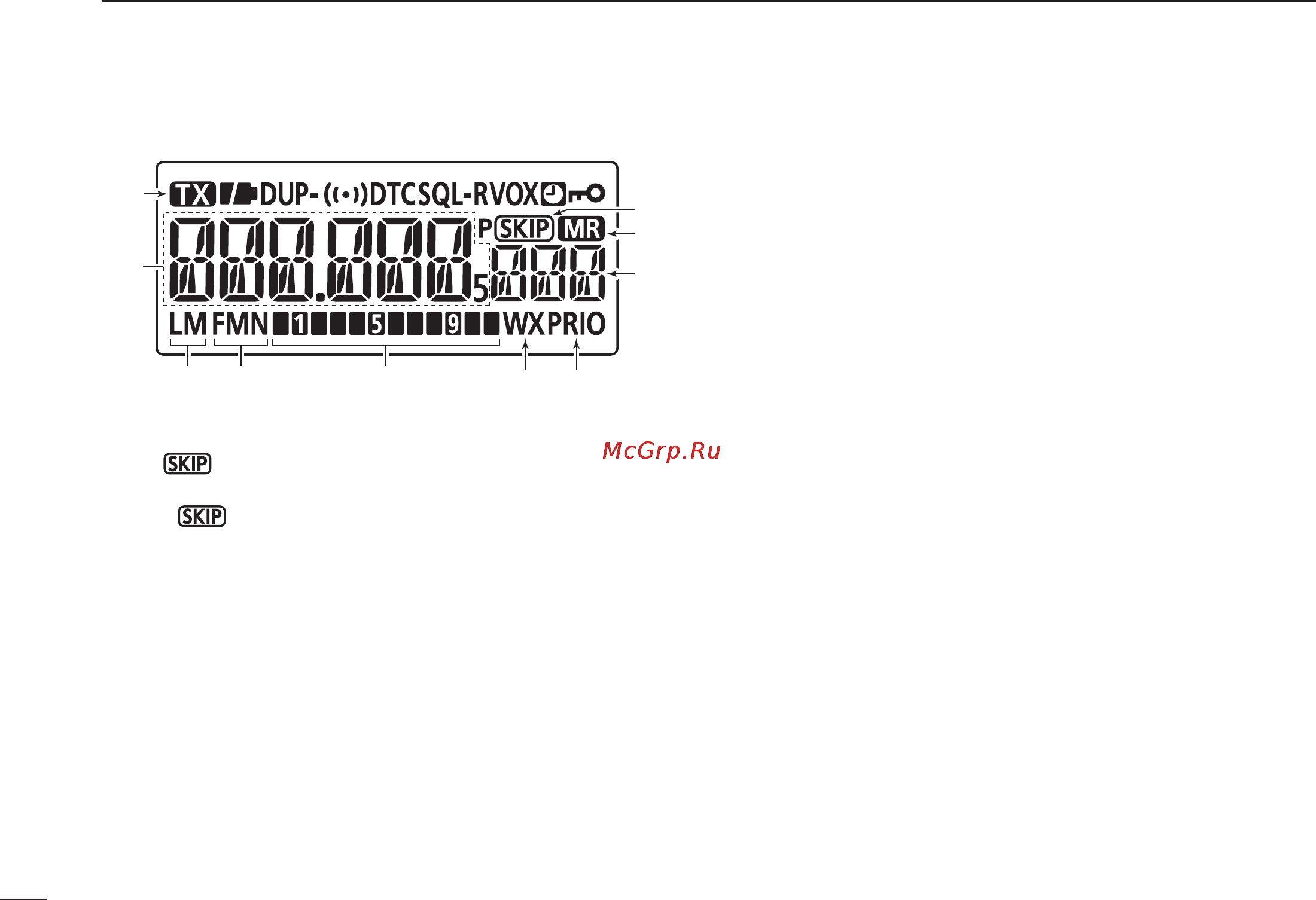

Function display (continued)
!4 !3 !2
i
o
u
!5
!6
!1 !0
u SKIP ICONS
appears when the selected memory channel is
set as a skip channel. (p. 46)
P appears when the displayed frequency is set
as a skip frequency in memory mode. (p. 46)
i
MEMORY ICON (pp. 18, 30)
Appears when memory mode is selected.
o
MEMORY CHANNEL NUMBER
Shows the selected memory channel number.
(pp. 18, 30)
“C0” or “C1” appears when the call channel is selected.
(pp. 18, 29)
!0
PRIORITY WATCH ICON (pp. 49, 50)
Appears when priority watch is in use.
!1
WEATHER CHANNEL ICON (pp. 72–73)
Appears when the weather alert function is in use.
!2
S/RF METER
Shows the relative signal strength while receiving sig-
nals. (p. 22)
Shows the output power level while transmitting.
(pp. 22, 23)
!3
OPERATING MODE ICONS (p. 21)
Shows the selected operating mode.
FM and FMN are selectable.
!4 POWER ICONS (p. 22)
L” appears when low power is selected.
M” appears when middle power is selected.
No indicator appears when high power is selected.
!5
FREQUENCY READOUT
Displays a variety of information, such as operating fre-
quency, set mode contents.
• The decimal point blinks during scan.
During memory mode operation, the programmed
memory or memory bank name is displayed.
!6
TRANSMIT ICON (p. 23)
Appears during transmit.
