SET MODES
New2001 New2001

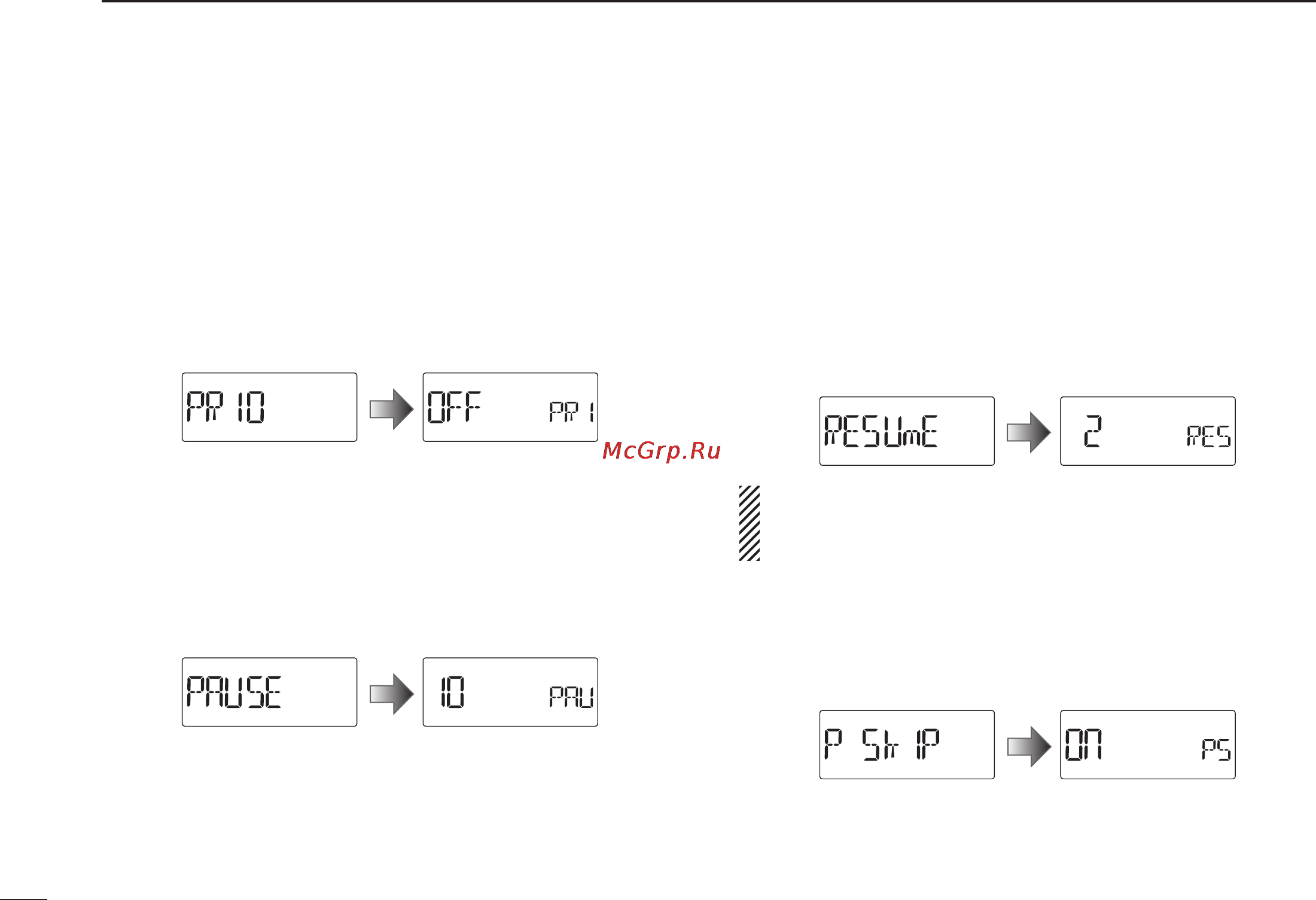

D Priority watch (PRIO)
Activates priority watch or priority watch with priority beep.
(default: OFF)
• OFF : The priority watch is turned OFF.
• On : The transceiver checks the memory channel frequency
every 5 seconds.
• bELL : The transceiver checks the memory channel frequency
every 5 seconds. You can be alerted with beeps and a
blinking “S” icon.
D Scan pause timer (PAUSE)
Selects the scan pause time. When receiving signals, the
scan pauses according to the scan pause timer. (default: 10)
• 2–20 : Scan pauses for 2–20 seconds while receiving a signal
in 2 seconds steps.
• HOLd : Scan pauses on a received signal until it disappears.
D Scan resume timer (RESUME)
Selects the scan resume time of a pause after the received
signal disappears. (default: 2)
• 0 : Scan resumes immediately after the received signal
disappears.
• 1–5 : Scan pauses 1–5 seconds after the received signal dis-
appears.
• HOLd : Scan remains paused on the received signal according
to the scan pause timer, even if it disappears. Rotate
[DIAL] to manually resume the scan.
The scan resume timer must be set shorter than the scan
pause timer (previous item), otherwise this timer will not be
activated.
D Program skip scan (P SKIP)
Turns the programmed skip scan function ON or OFF for
a VFO scan operation (full scan, programmed scan, etc.).
(default: On)
