Icom IC-T70A [58/96] Set modes
![Icom IC-T70A [58/96] Set modes](/views2/1074089/page58/bg3a.png)
51
New2001New2001
SET MODES
9
New2001
■ General

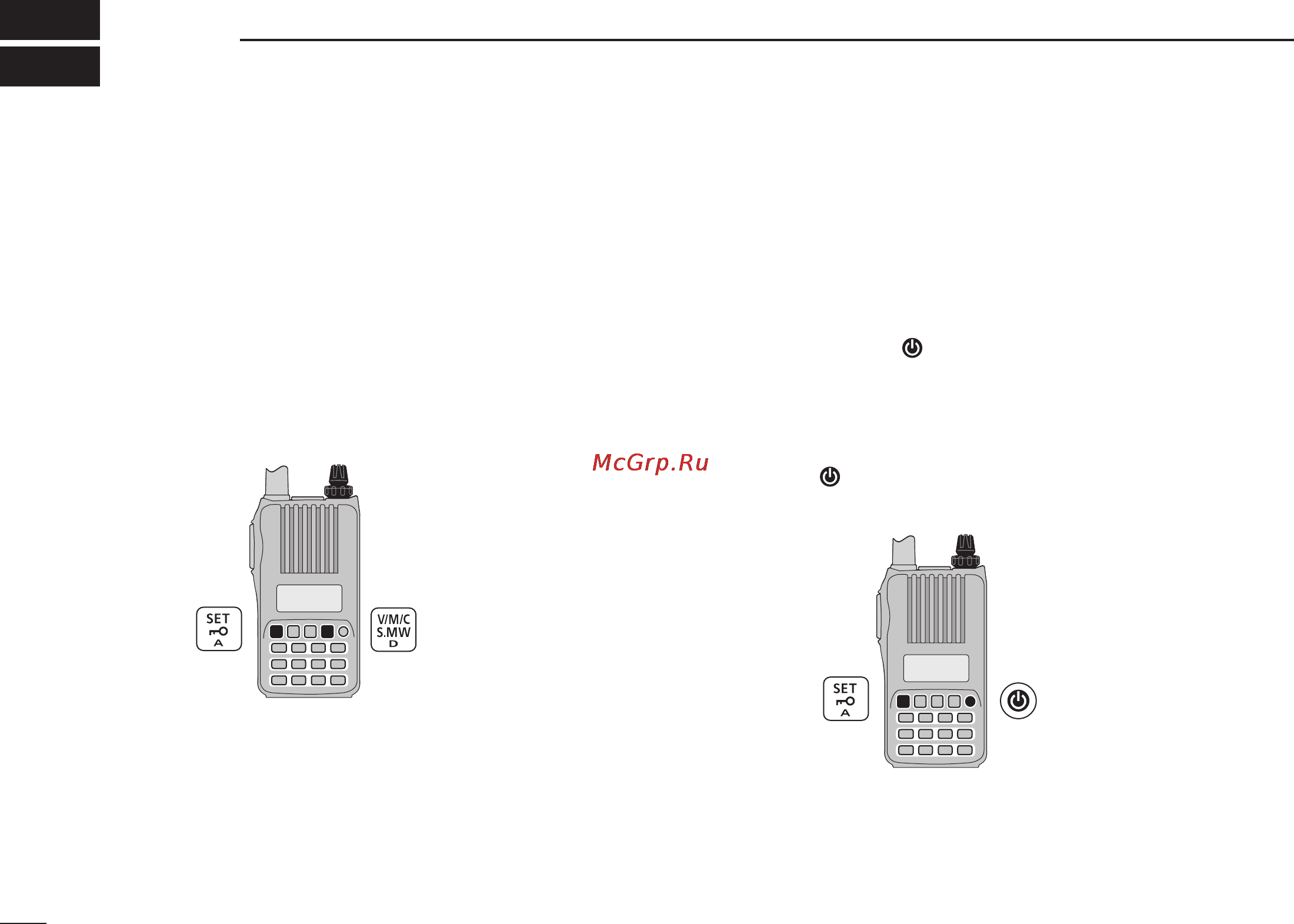

D Entering and using the Set mode
The Set mode is used to change the settings of the trans-
ceiver
’s functions.
q Push [SET] to enter the Set mode.
w Rotate [DIAL] to select the desired set item.
e Rotate [VOL] to set the desired value or option.
r
Push [V/M/C] to return to frequency display, or repeat
steps w and e to set other items.
[VOL]
[DIAL]
D Entering and using the Initial set mode
The Initial set mode can be accessed at power ON, and al-
lows you to set seldom-changed settings to suit your prefer-
ence and operating style.
q
Push and hold [ ] for 1 sec. to turn the power OFF.
w
While continuing to push [SET], turn the power ON to
enter the Initial set mode.
e Rotate [DIAL] to select the desired set item.
r Rotate [VOL] to set the desired value or option.
t
Push [ ] to return to the frequency display, or repeat
steps w and e to set other items.
[VOL]
[DIAL]
