■ Scan resume setting

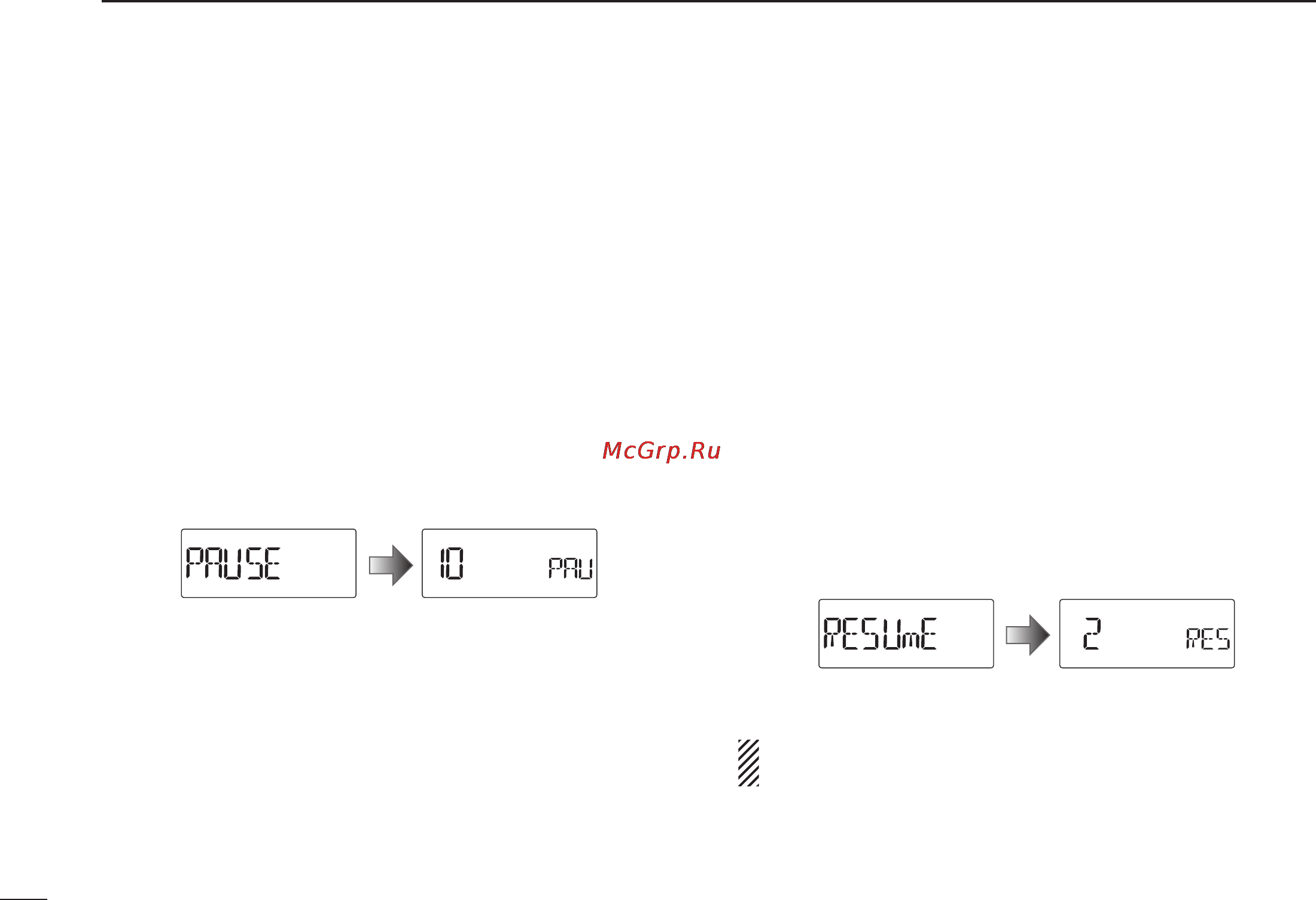

D Scan pause timer
The scan pauses while receiving signals, depending on the
scan pause time. It can be set from 2 to 20 seconds or un-
limited.
q
Push [SET] to enter the Set mode.
w
Rotate [DIAL] to select the scan pause timer item.
e
Rotate [VOL] to select a desired scan pause time from
2–20 seconds (2 seconds steps) or “HOLd.”
• “2”–“20” : Scan pauses for 2–20 seconds while receiving a sig-
nal.
• “HOLd” : Scan pauses on a received a signal until it disap-
pears.
r Push [V/M/C] to return to the frequency display.
D Scan resume timer
The scan restarts after the signal disappears, depending on
the resume time. It can be set from 0–5 seconds or unlim-
ited.
q
Push [SET] to enter the Set mode.
w
Rotate [DIAL] to select the scan resume timer item.
e
Rotate [VOL] to select a desired scan resume time from
0–5 seconds (1 second steps) or “HOLd.”
• “0” : Scan restarts immediately after the signal disap-
pears.
• “1”–“5” : Scan restarts 1–5 seconds after the signal disap-
pears.
• “HOLd” : Scan remains paused on the received signal accord-
ing to the scan pause timer even if it disappears. Ro-
tate [DIAL] to manually resume the scan.
r Push [V/M/C] to return to the frequency display.
The scan resume timer must be set shorter than the scan
pause timer, otherwise this timer will not be activated.
