Icom IC-T70A [24/96] Monitor function
![Icom IC-T70A [24/96] Monitor function](/views2/1074089/page24/bg18.png)
17
4
BASIC OPERATION
New2001 New2001

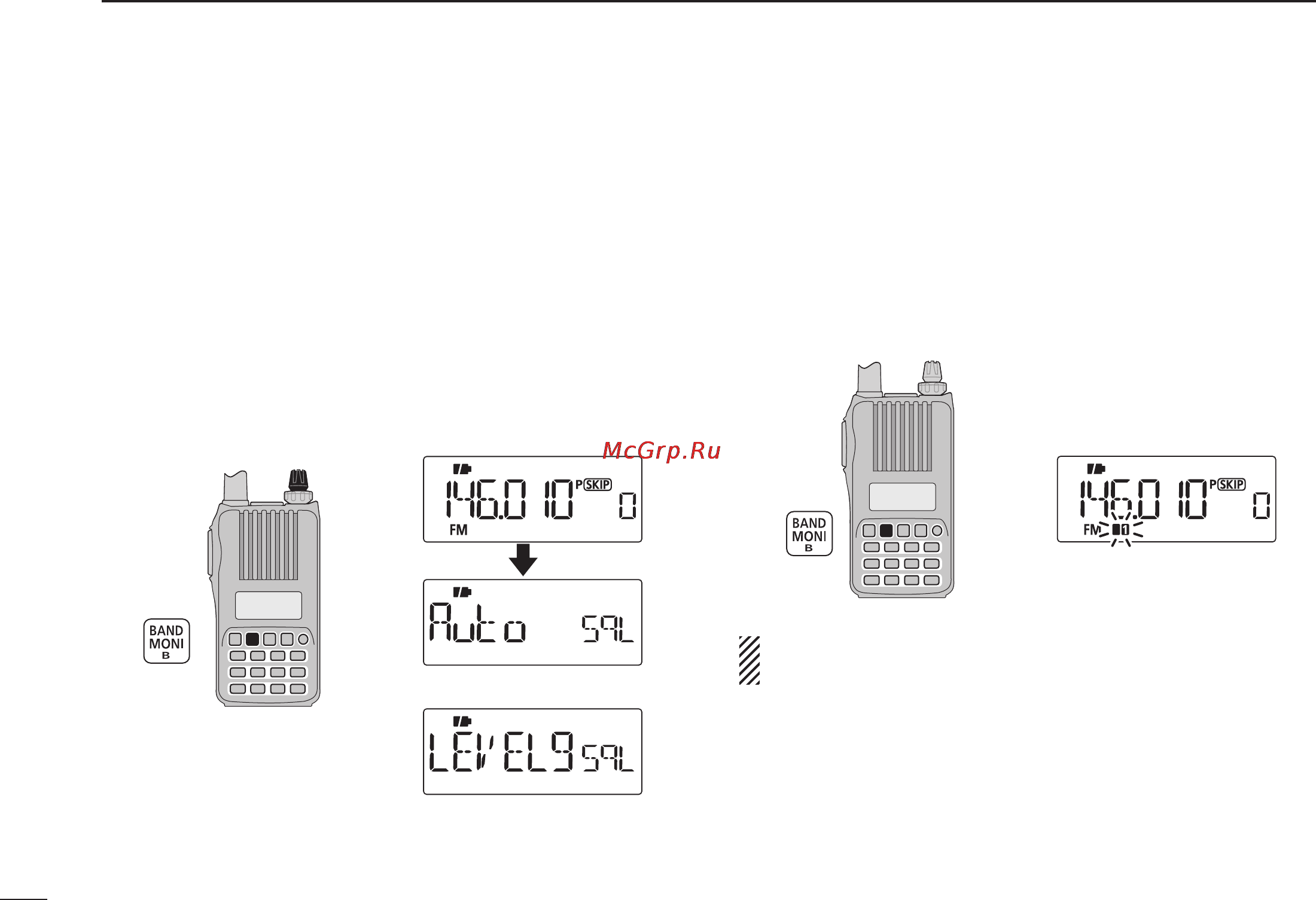

■ Setting the squelch level
The squelch circuit mutes the received audio signal, depend-
ing on the signal strength. The transceiver has 9 squelch lev-
els, a continuously open setting and an automatic setting.
➥
While continuing to push [MONI](BAND), rotate [DIAL] to
select the squelch level.
• “ LEVEL1” is loose squelch (for weak signals) and “LEVEL9” is
tight squelch (for strong signals).
• “ Auto” indicates the automatic level adjustment by a noise pulse
counting system.
• “ OPEn” indicates the continuously open setting.
[DIAL]
Maximum level
Automatic squelch
■ Monitor function
This function is used to listen to weak signals without disturb-
ing the squelch setting; or to open the squelch manually even
when mute functions such as the tone squelch are in use.
➥
Push and hold [MONI](BAND) to monitor the operating
frequency.
• The 1st and 2nd segments of the S-meter blink.
Two segments blink
The [MONI] key can be set to a ‘sticky’ operation in the
Initial set mode. See page 63 for details.
