New2001
61
9
SET MODES
New2001

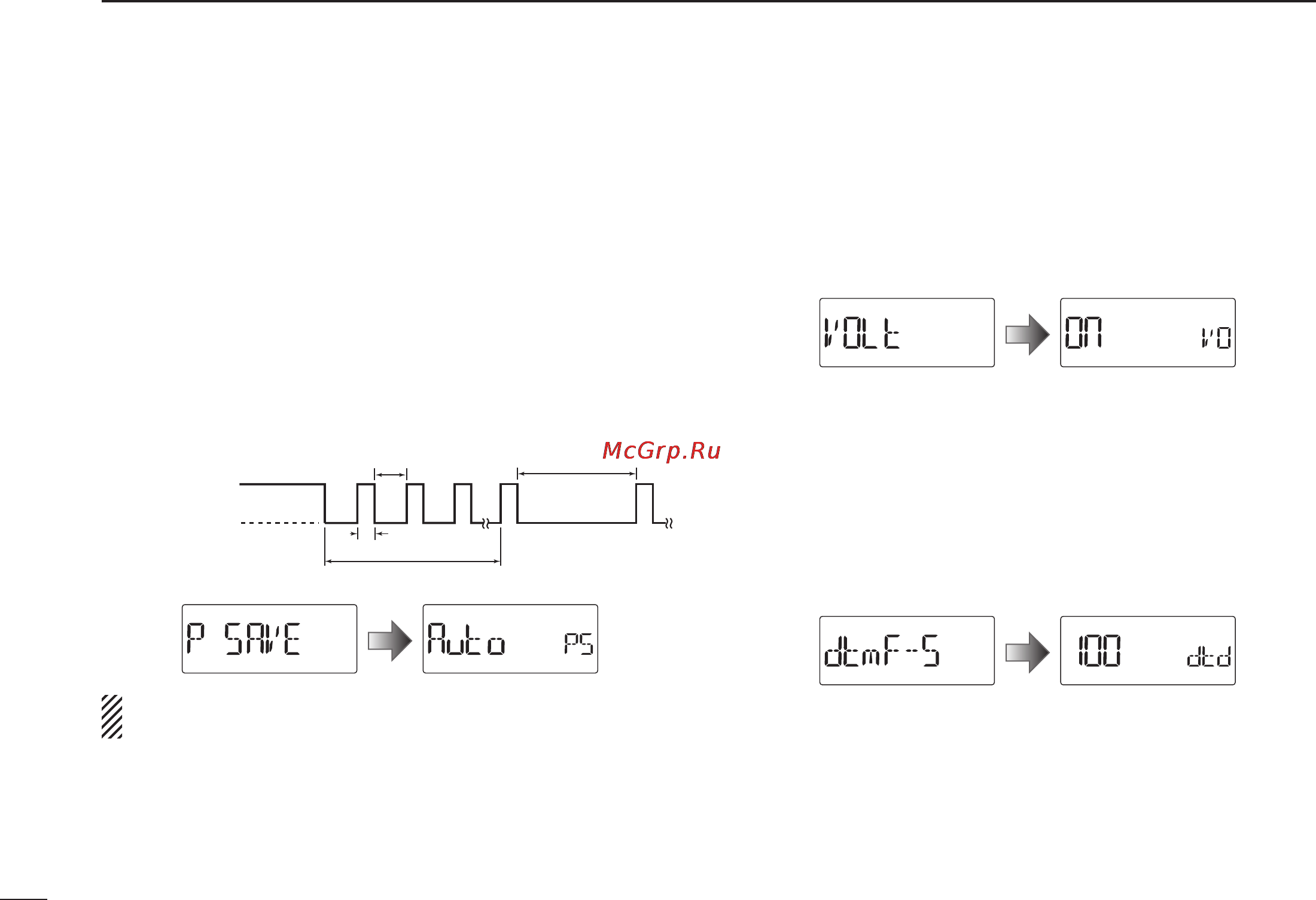

D Power save (P SAVE)
The power save function allows you conserve battery life by
selecting the duty cycle of the receiver. Select the ratio of the
power save time to the standby time. (default: Auto)
• OFF : Turns the function OFF.
• 2 : Sets the duty cycle to 1:2.
• 8 : Sets the duty cycle to 1:8.
• 16 : Sets the duty cycle to 1:16.
• 32 : Sets the duty cycle to 1:32.
• Auto : Transceiver sets “1:2” duty ratio when receiving nosets “1:2” duty ratio when receiving no
signal for 5 seconds, then it sets “1:16” after 60 sec-
onds has past.
62.5 msec.
60 sec.
125 msec.
1000 msec.
No signal
5 sec.
Circuit ON
Circuit OFF
NOTE: Power save function is disabled when using an ex-
ternal power supply (more than 10 V DC).
D Voltage indication (VOLT)
The power voltage, battery voltage or external power supply
voltage, is displayed at power ON. This setting can be turned
ON or OFF. (default: On)
• OFF : The power voltage display is skipped.
• On : The power voltage is displayed at power ON.
D DTMF speed (DTMF-S)
Select the desired DTMF transmission speed from 100, 200,
300 or 500 msec. (default: 100)
• 100 : 100 msec. interval; 5.0 characters per second
• 200 : 200 msec. interval; 2.5 characters per second
• 300 : 300 msec. interval; 1.6 characters per second
• 500 : 500 msec. interval; 1.0 character per second
