D Memory bank link function (B-LINK)
Turns the memory bank link function ON (default) or OFF.
The link function provides continuous bank scan, scanning all
channels in the selected banks during bank scan.

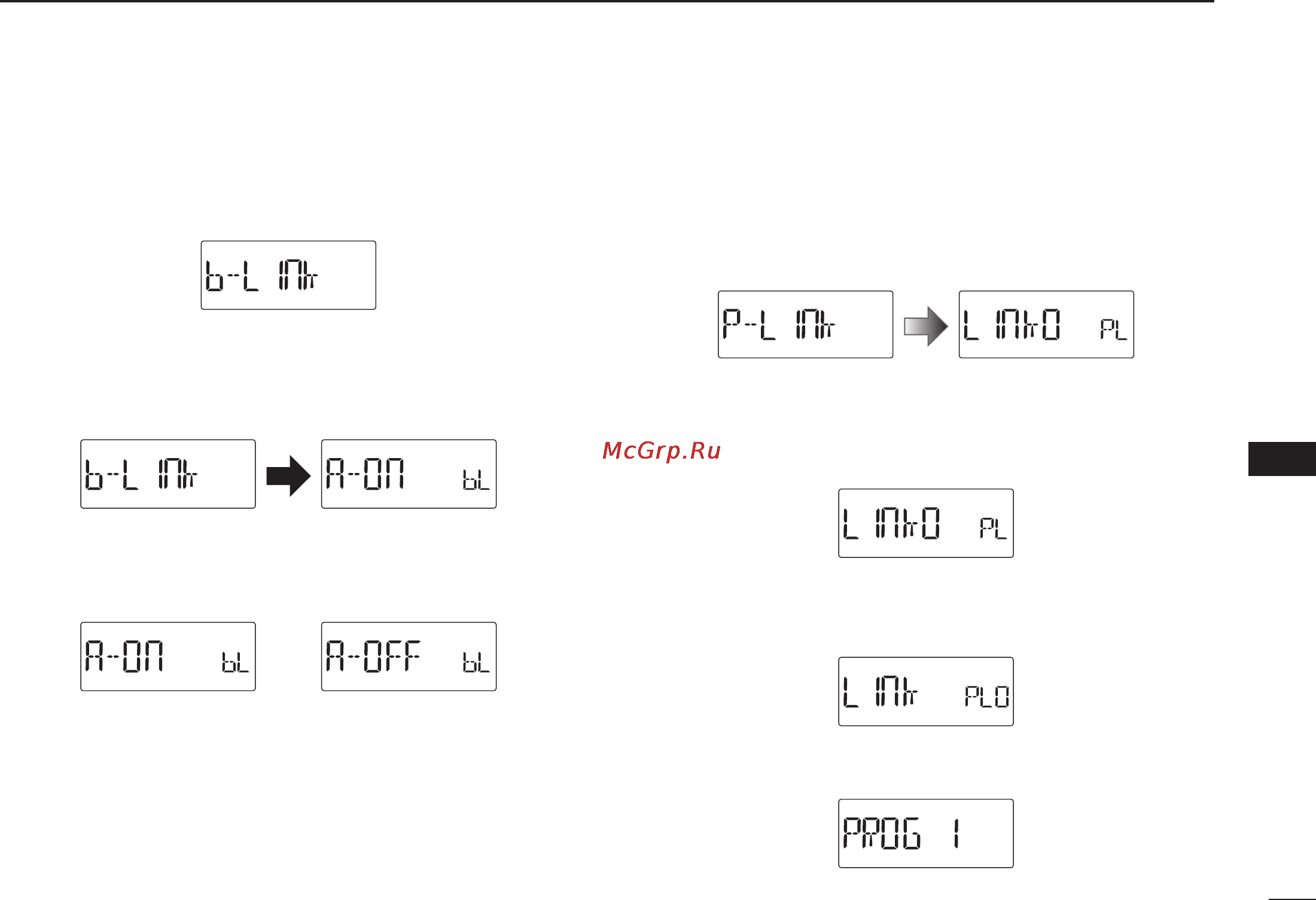

• Bank link setting
q Push and hold [SET] for 1 sec. to enter the bank link
setting.
w Rotate [DIAL] to select the bank that you want to change
the link setting.
e
Rotate [VOL] to select the option.
Setting is OFFSetting is ON
r Rotate [DIAL] to select next bank and repeat steps w
and e, or push [BAND] to exit the BANK link setting.
D Program scan link function (P-LINK)
Sets the program scan link function. During program scan,
link function performs a continuous program scan in the se-
lected program scan number during program scan.
Default settings for LInk0 to LInk9;
PROG 1 to PROG 24 are linked, but PROG 0 is not linked.
• Confirming program scan link
q Rotate [VOL] to select the program scan link number that
you want to confirm.
w Push and hold [SET] for 1 sec. to enter the program scan
link setting.
• “LInk” appears.
e Push and hold [SET] for 1 sec., then rotate [DIAL] to
confirm the linked program scans
.
r Push [BAND]
twice to exit the program scan link setting.
