PANEL DESCRIPTION
New2001

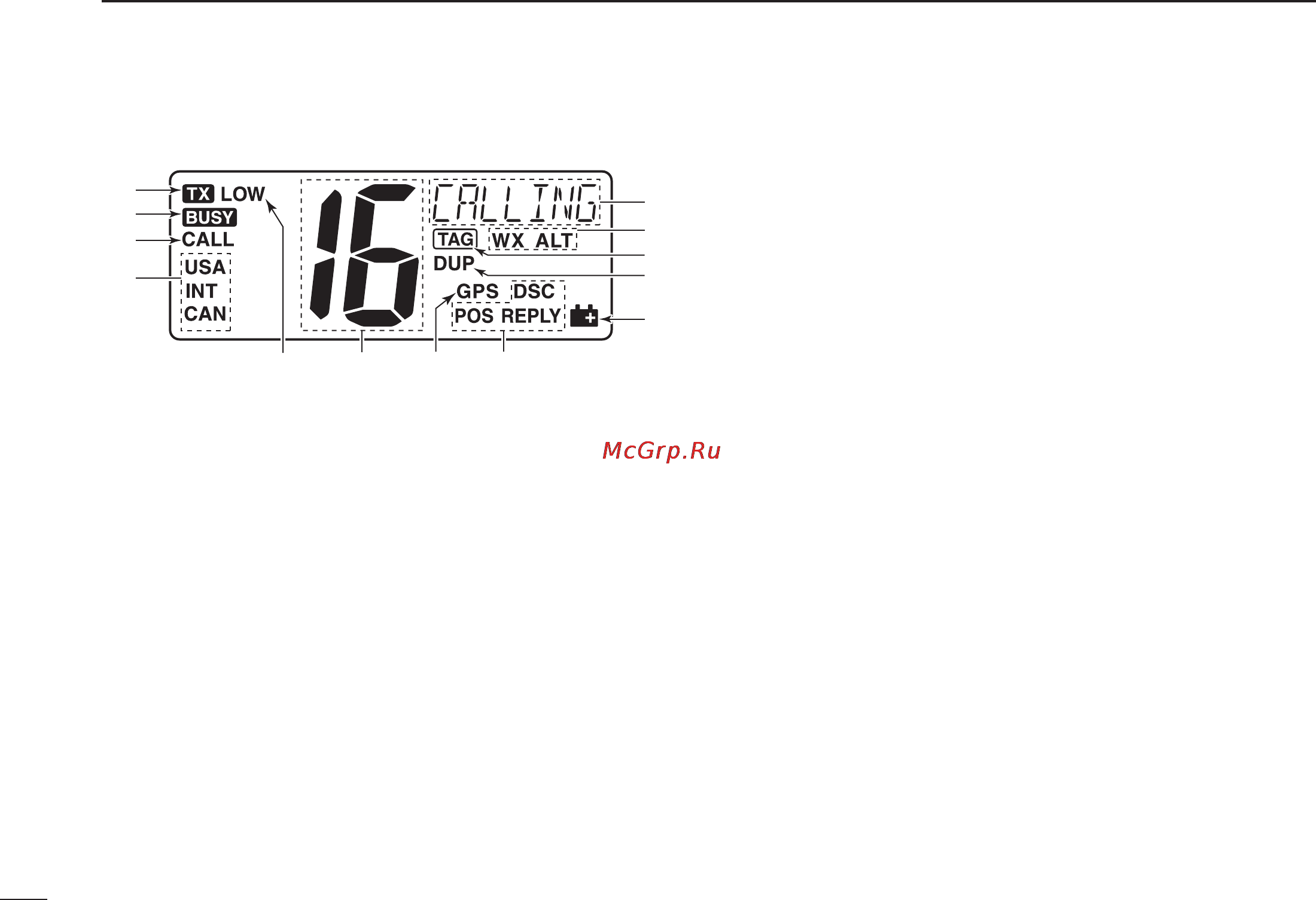

n Function display
yio u
!2
!3
!1
!0
w
e
r
t
q
q CHANNEL COMMENT DISPLAY
➥
A channel comment appears and scrolls for about 10 sec-
onds after the channel is selected, if programmed. (p. 8)
➥ “ SCAN 16” appears during Priority scan; “SCAN” appears
during Normal scan. (p. 11)
➥ “DW 16” appears during Dualwatch; “TW 16” appears
during Tri-watch. (p. 12)
➥ In the Set mode, displays and scrolls the selected item. (p. 44)
w WEATHER CHANNEL ICONS (pp. 6, 45)
➥ “ WX” appears when a weather channel is selected.
➥ “ WX ALT” appears when the Weather Alert function is
in use; blinks when an alert tone is received.
e
TAG CHANNEL ICON (p. 11)
Appears when a TAG channel is selected.
r DUPLEX ICON (p. 6)
Appears when a duplex channel is selected.
t LOW BATTERY ICON
Appears when the battery voltage drops to approximately
10 V DC or below.
y
DSC ICONS
Indicates the DSC status.
•“DSC” appears when a DSC call is received. (pp. 23, 34)
•“POS REPLY” appears when a Position Reply call is received.
(p. 38)
u GPS ICON
➥ Appears while valid position data is received.
➥ Blinks when invalid position data is received.
➥ Disappears when no GPS receiver is connected.
i CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
•“A” appears when a simplex channel is selected.
➥ In the Set mode, displays the selected option. (p. 44)
o LOW POWER ICON (p. 7)
Appears when low power is selected.
!0 CHANNEL GROUP ICON (p. 6)
Indicates whether a U.S.A. “USA,” International “INT” or
Canadian “CAN” channel group is selected.
!1
CALL CHANNEL ICON (p. 5)
Appears when the Call channel is selected.
!2 BUSY ICON (p. 7)
Appears when receiving a signal or when the squelch
opens.
!3
TRANSMIT ICON (p. 7)
Appears while transmitting.
