24
6
DSC OPERATION
New2001
n Transmitting DSC calls (Continued)
D Transmitting an Individual acknowledgement
When receiving an Individual call, you can transmit an ac-
knowledgement (‘Able to comply’ or ‘Unable to comply’) by
using the on screen prompts (Quick ACK.) Also, you can
send an acknowledgement through the menu system (Man-
ual ACK.)
Quick ACK:
➥
After an Individual call is received, push [CLR] to stop the
beeps, and then push [ENT]. (Go to step r below.)
Manual ACK:
q Push [MENU] to enter the DSC menu.
w Push [Y] or [Z] to select “INDV ACK,” the push [ENT].
•“INDVACK”itemappearsafterreceivinganIndividualcall.

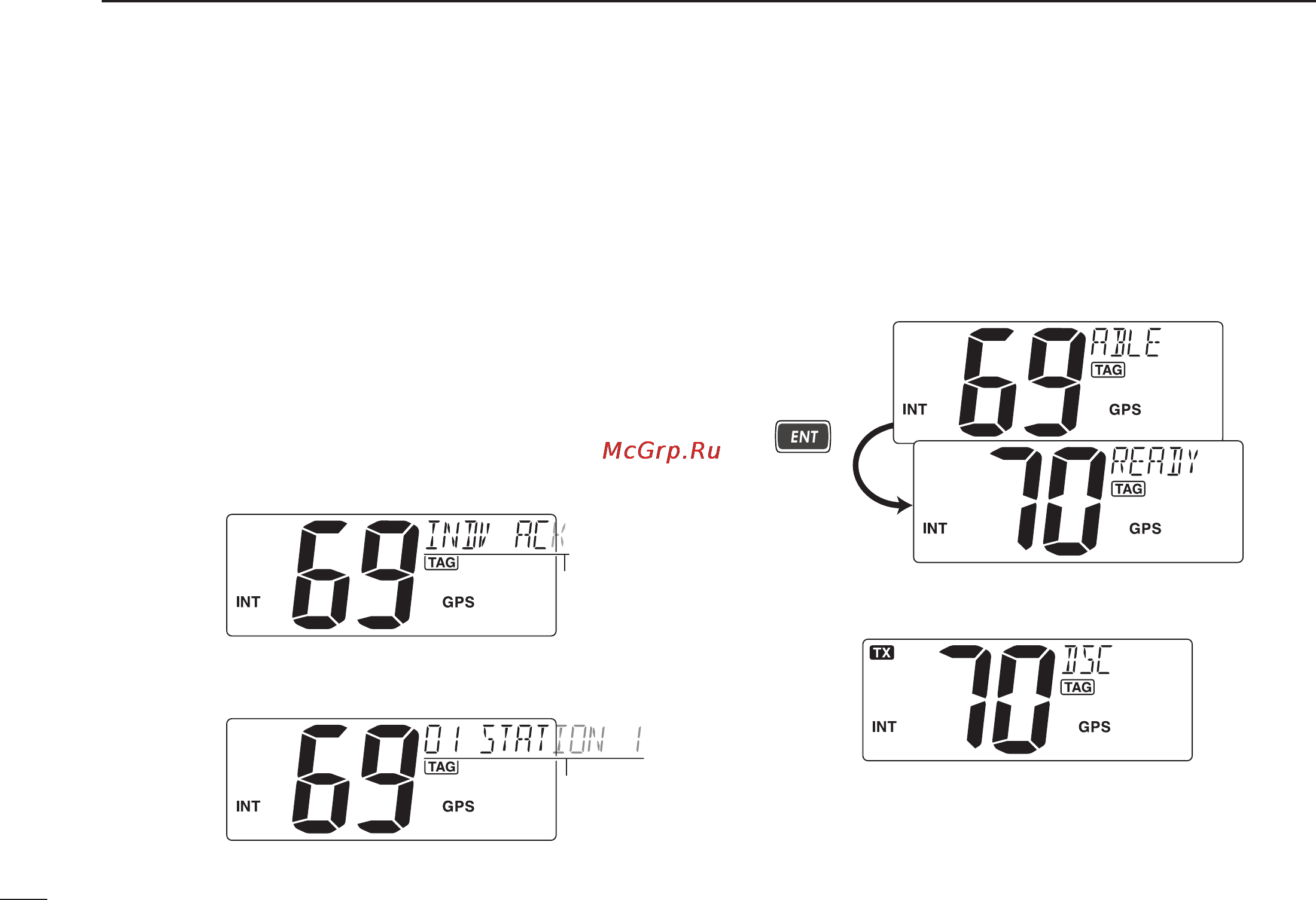

Scrolls
e Push [Y] or [Z] to select a desired individual address or
ID code, then push [ENT].
Scrolls
r Push [Y] or [Z] to select the acknowledgement “ABLE” or
“UNABLE,” then push [ENT].
•“UNABLE” selection will transmit the reason “No Reason
Given”.
•Afterpushing[ENT], Channel 70 is automatically selected and
“READY” appears in the channel comment display.
‘ABLE’ is
selected.
Push
t Push [ENT] to transmit the acknowledgement call to the
selected station.
Transmitting
