23
6
DSC OPERATION
New2001
6
y Stands by on the operated channel (before entering the
DSC menu in step q), until an acknowledgement call is
received.

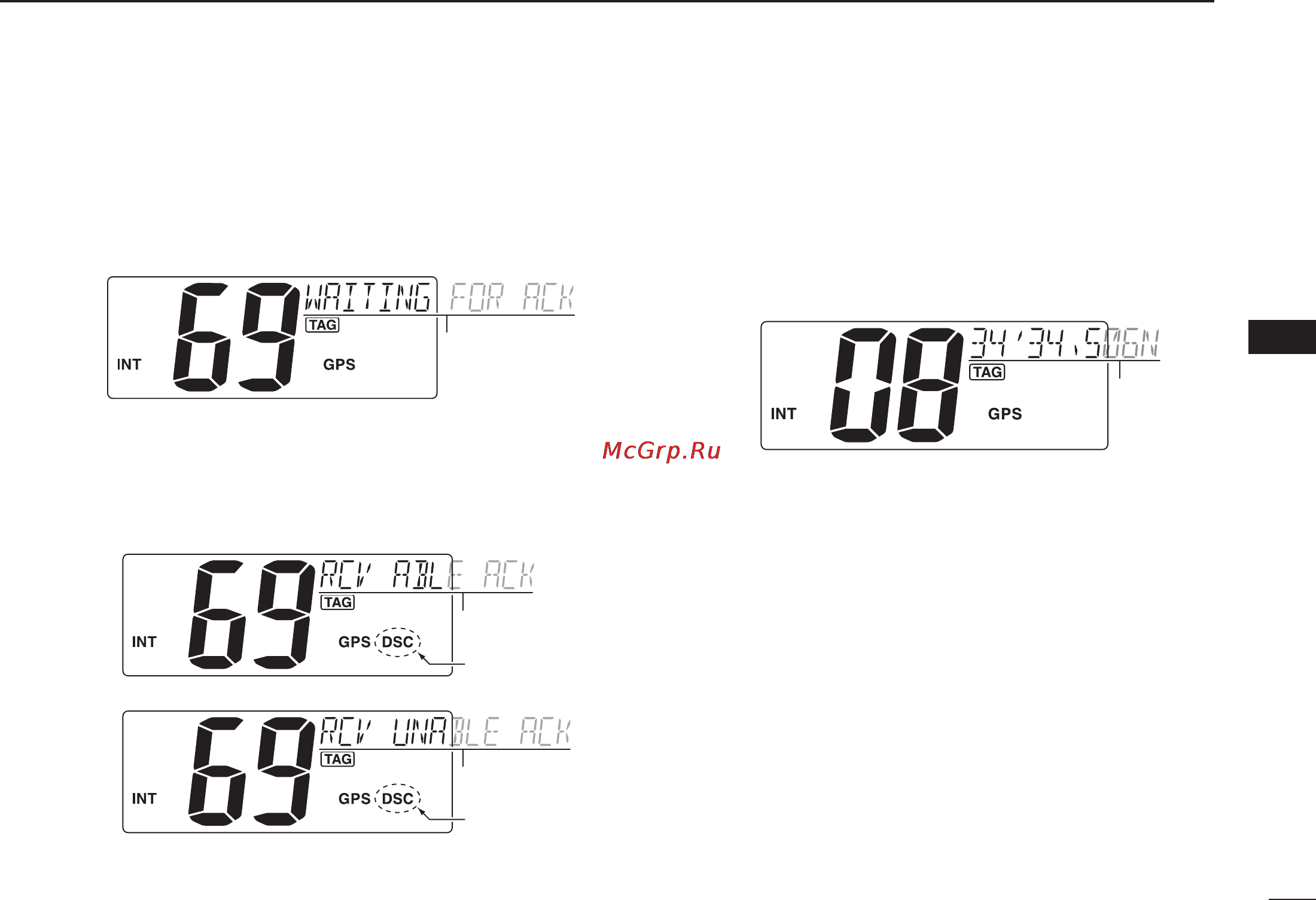

•“WAITINGFORACK”scrollsinthechannelcommentdisplay.
Scrolls
u When the acknowledgement is received, beeps sound,
and “DSC” appears and “RCV ABLE ACK” or “RCV UN-
ABLE ACK” scrolls in the channel comment display with
beeps.
•Push[CLR] to stop the beeps.
‘Able to comply’ is received.
‘Unable to comply’ is received.
Scrolls
Scrolls
Appears
Appears
i
Push [ENT] to select to the intership channel, specified in step
r, then hold down [PTT] to communicate your message to
the responding ship when ‘Able to comply’ is received.
•Push[CLR] to return to normal operation.
•When‘Unabletocomply’isreceived,push[ENT] to return to
normal operation.
Scrolls
After receiving ‘ABLE’ ACK
