DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D Receiving an All Ships call
When an All Ships call is received:
➥ The emergency alarm sounds for 2 minutes, depending on
the received categories.
•Push[CLR] to stop the alarm or beeps.
➥ “ DSC” appears and “RCV ALL SHIPS” scrolls in the chan-
nel comment display.
➥
Push [ENT] to monitor Channel 16 for an announcement
from the calling vessel, push [CLR] to ignore the call.

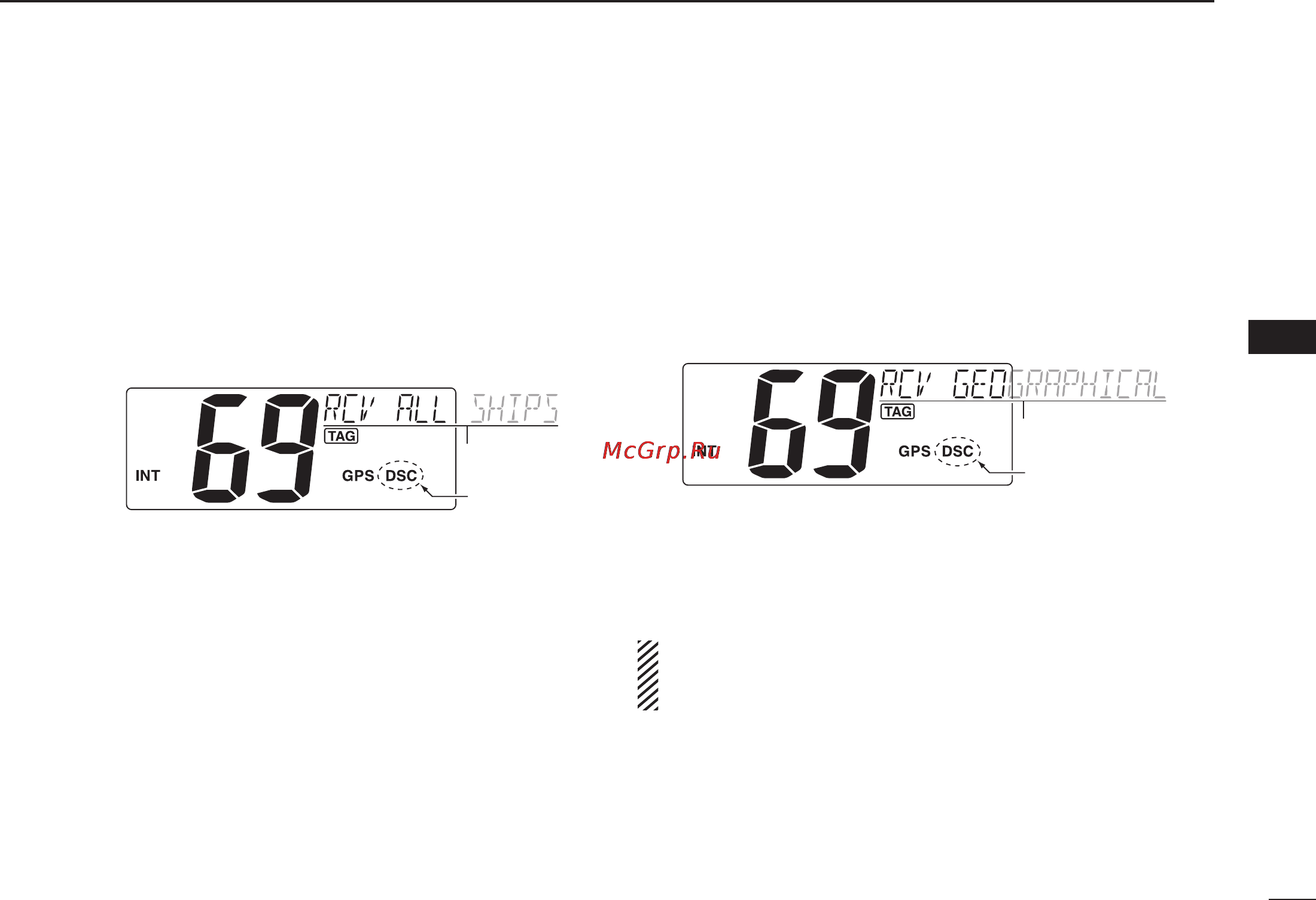

Scrolls
Appears
D Receiving a Geographical Area call
When a Geographical Area call (for the area you are in) is
received:
➥
The emergency alarm or beeps sound for 2 minutes, de-
pending on the received category.
•Push[CLR] to stop the alarm or beeps.
➥ “ DSC” appears and “RCV GEOGRAPHICAL” scrolls in the
channel comment display.
Scrolls
Appears
➥
Push [ENT] to select the channel specified by the calling sta-
tion for voice communication; push [CLR] to ignore the call.
➥ Monitor the selected channel for an announcement from
the calling station.
When no GPS receiver is connected or if there is a prob-
lem with the connected receiver, all Geographical Area
calls are received, regardless of your position.
