8
3
BASIC OPERATION
New2001
n Call channel programming
The Call channel is used to select Channel 9 (default). How-
ever, you can program the Call channel in each channel
group with an often-used channel, for quick recall.
q
Push [U/I/C] (both [Y] and [Z]) one or more times to
select a desired channel group (U.S.A., International or
Canada).
w
Hold down [9](16) for 1 second to select the Call channel
of the selected channel group.
•“CALL” and the Call channel
number appear.

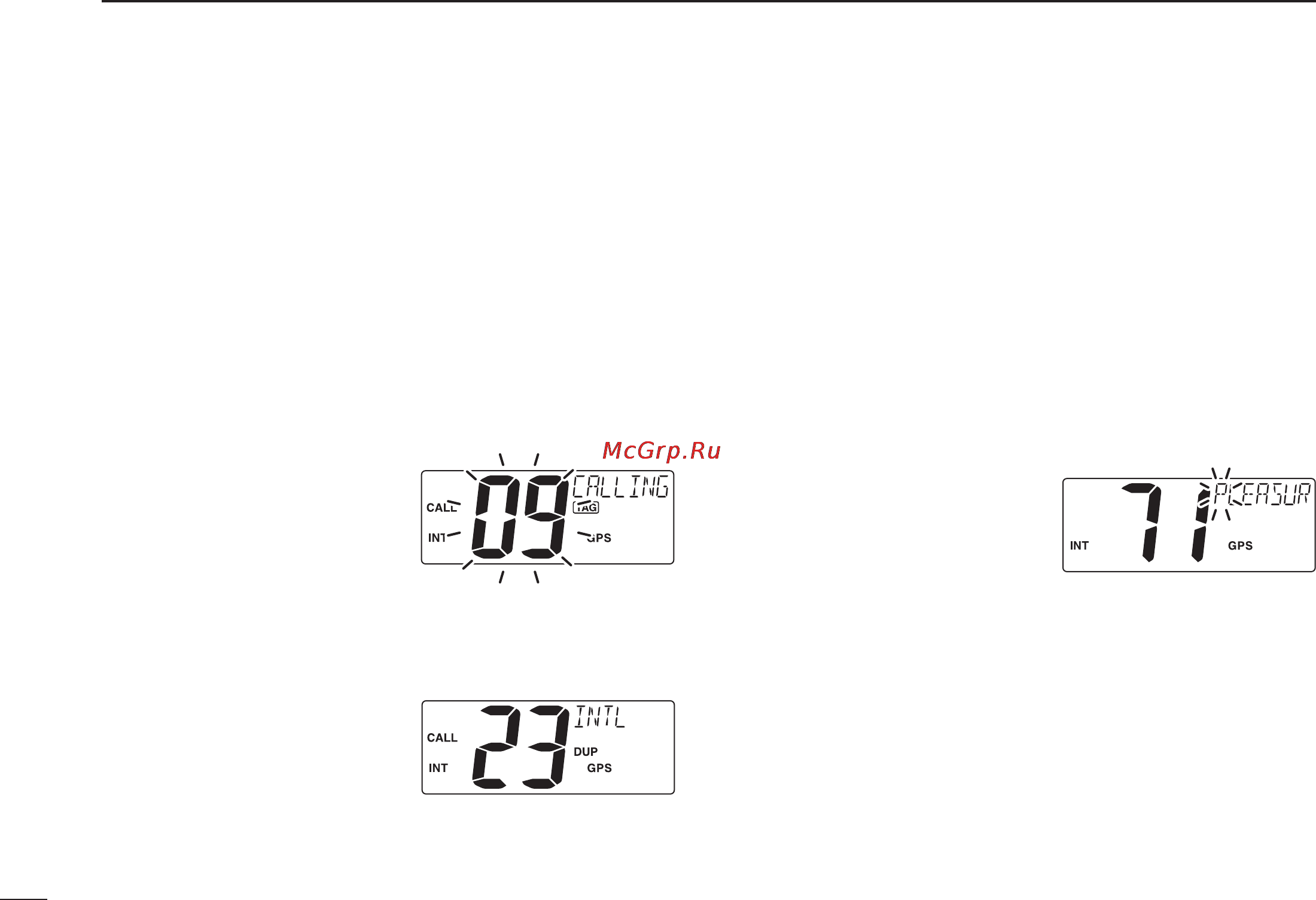

e Hold down [9](16) again for
3 seconds (until a long beep
changes to two short beeps)
to enter the Call channel
programming mode.
•The channel number starts
blinking.
r Push [Y] or [Z] to select a
desired channel.
t Push [9](16) to program the
displayed channel as the
Call channel.
•Push [CLR] to cancel, if de-
sired.
•The channel number stops
blinking.
n Channel comments
The channels can be labeled with a unique alphanumeric ID
of up to 10 characters.
The comment appears in the channel comment display for
about 10 seconds after the channel selection, and the com-
ment, more than 7 characters long, automatically scrolls.
Capital letters, small letters (except f, j, k, p, s, v, x, z), 0 to 9,
some symbols (= M + – . /) and space can be used.
q Select a desired channel.
•CancelDualwatch,Tri-watchorScaninadvance.
w While holding down [CH/
WX], push [16] to enter the
channel comment program-
ming mode.
•Acursorandtherstcharacter
start blinking alternately.
e Push [Y] or [Z] to select a desired character.
•Push[CH/WX] or [16] to move the cursor forward or backward.
r Repeat step e to input all characters.
t Push [ENT] to input and set the comment.
•Push[CLR] to cancel and exit the programming mode, if de-
sired.
•Thecursorandthecharacterstopblinking.
y If desired, repeat steps q to t to program other channel
comments.
