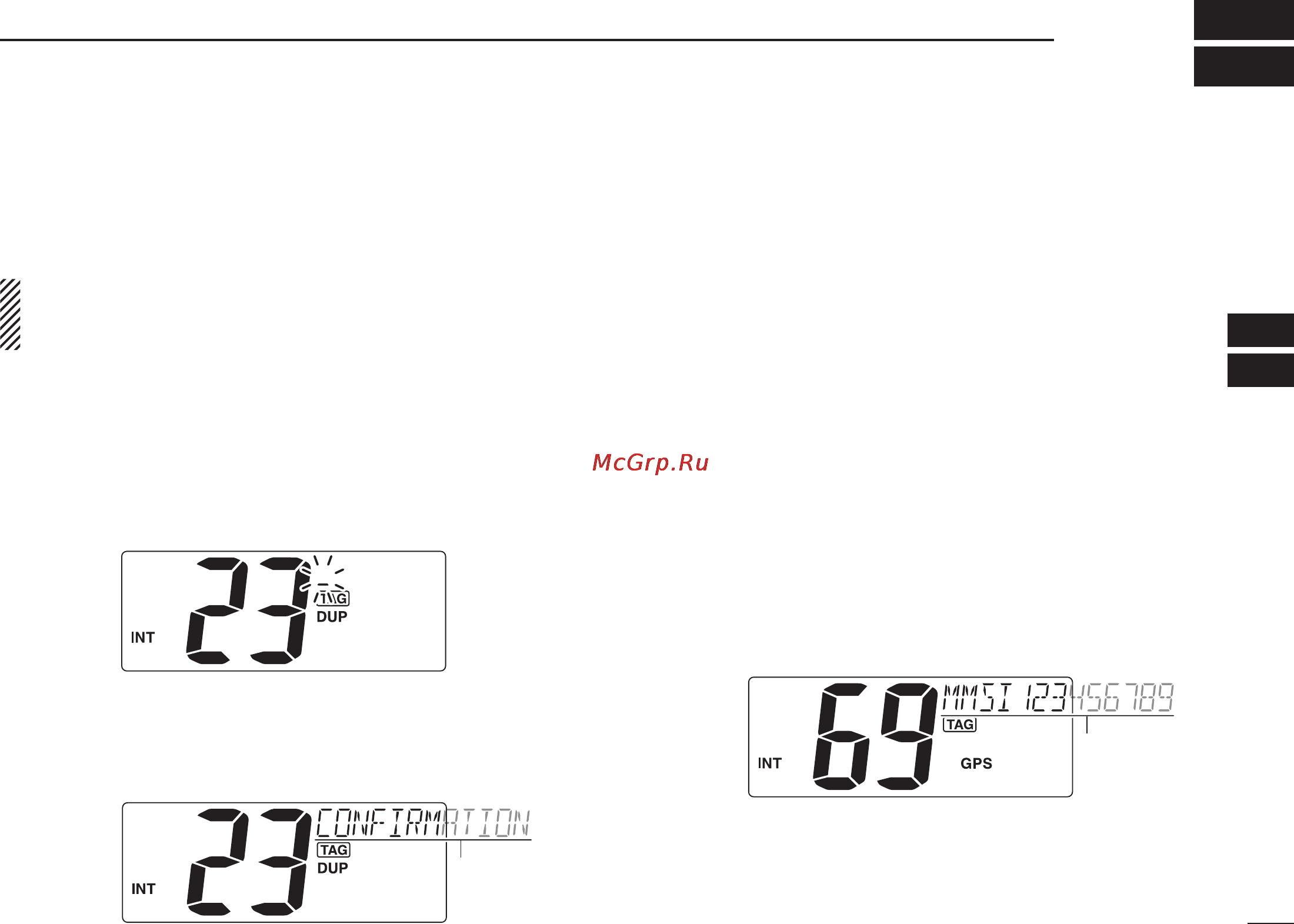

Icom IC-M412 [21/68] Dsc operation
![Icom IC-M412 [21/68] Dsc operation](/views2/1074279/page21/bg15.png)
13
6
DSC OPERATION
5
6
n MMSI code programming
The 9-digit MMSI (Maritime Mobile Service Identity: DSC self
ID) code can be programmed at power ON.
This code programming can be performed only twice. After
the code programming, it can be changed only by your
dealer or distributor.
q Turn OFF the power.
w While holding down [MMSI](MENU), turn ON the power to
enter the MMSI code programming mode.
e
After the display appears, release [MMSI](MENU).
r Push [MENU] to enter the DSC menu.
t Push [Y] or [Z] to select “MMSI,” then push [ENT].
•Acursorstartsblinking.
y Push [Y] or [Z] to select the specified MMSI code.
•Push[CH/WX] or [16] to move the cursor forward or backward.
u After programming the 9-digit MMSI code, push [ENT].
•“CONFIRMATION”scrollsinthechannelcommentdisplay.
Scrolls
i Push [ENT], then input the same MMSI code as step y
for the confirmation.
o Push [ENT] to set the code.
•Selectstonormaloperation.
•Push[CLR] to cancel and exit the programming mode, if de-
sired.
•Ifadifferentcodeisinput,“INCORRECT” appears. In that case,
push [ENT] to repeat steps y to i again.
D MMSI code check
The 9-digit MMSI (DSC self ID) code can be checked.
➥While in the stand-by mode, hold down [MMSI](MENU) for
1 second to display the 9-digit MMSI (DSC self ID) code.
•TheMMSIcodeisdisplayedandscrollsinthechannelcomment
display.
•WhennoMMSIcodeisprogrammed,“NOMMSI”appearsand
warning alarm sounds.
Scrolls
