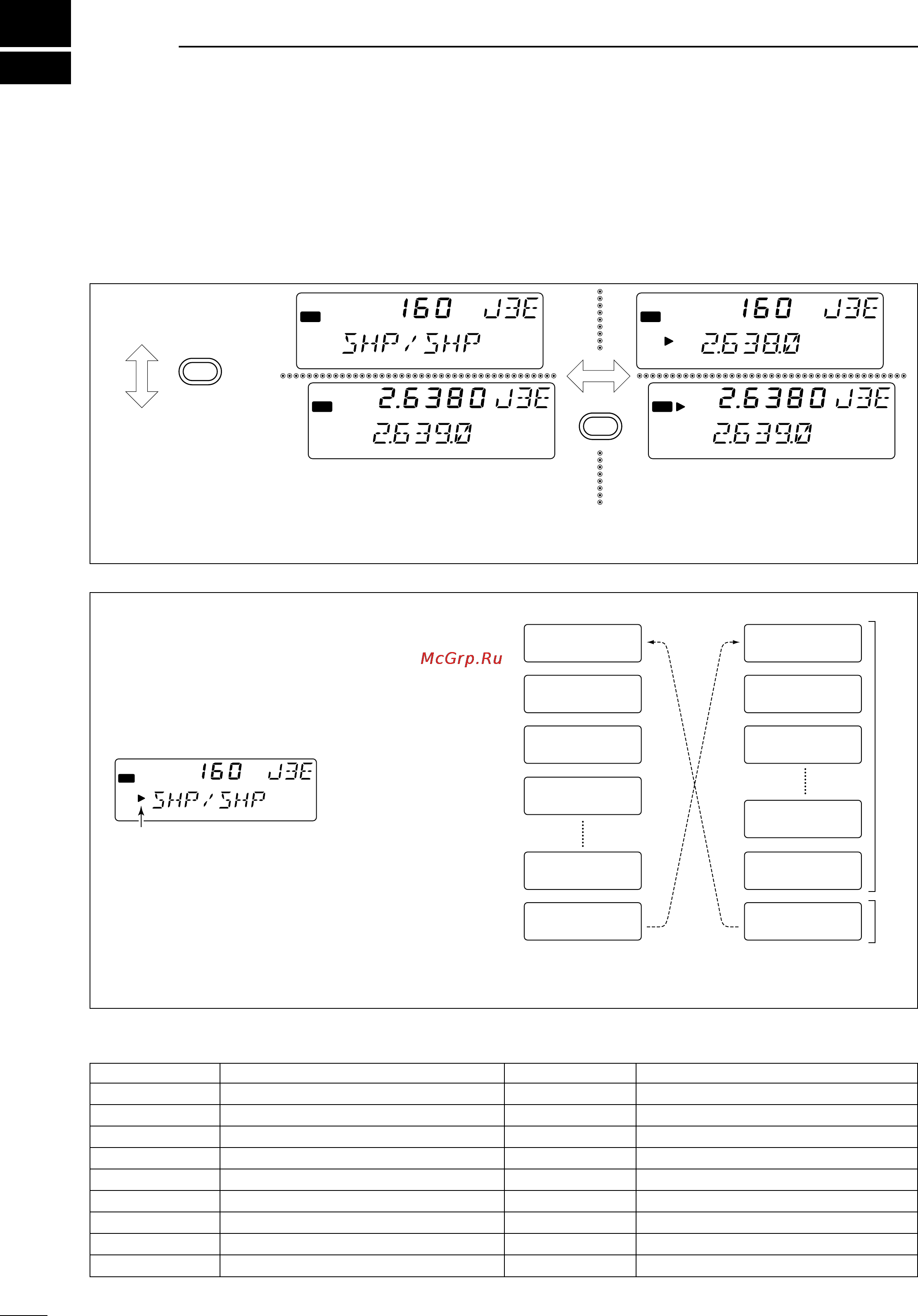

SELECTING A CHANNEL/FREQUENCY
■ Selecting a channel
The transceiver has 160 user channels and ITU chan-
nels. However, the number of user channels can be
optionally restricted and ITU channels are not available
with some versions.
☞ NOTE: When channel 0 and/or 2182 kHz is se-
lected with the [2182KHz] switch, channel selection
is NOT possible. In such cases, push [2182KHz] in
advance.
DUP
TX
RX
DSC
F
AGC
ALM
DUP
TX
RX
DSC
F
AGC
ALM
DUP
TX
RX
DSC
F
AGC
ALM
DUP
TX
RX
DSC
F
AGC
ALM
CHANNEL INDICATION
FREQUENCY INDICATION
CHANNEL SELECTION MODE
Channel can be selected
FREQUENCY SELECTION MODE
Frequency can be changed
CH/FREQ
CE
D Using the channel selector
The transceiver has two large controls for group se-
lection and channel selection. The [GROUP] selector
changes channels in 20 channel increments and se-
lects ITU channel groups*; and the [CHANNEL] se-
lector selects each channel.
➀ Make sure no “s” indicator appears on the display.
➁ Rotate the [GROUP] selector to select the desired
channel group as shown at right and/or below.
➂ Rotate the [CHANNEL] selector to select the de-
sired channel.
[EXAMPLE]: Selection with the [GROUP] selector
*All ITU channels are not available with some versions and ITU
FSK channels can be hidden using set mode. (p. 13)
1 J3E
WWV
21 J3E
KMI
41 J3E
WOM
61 J3E
WOO
121 J3E
FAX
141 J3E
SHP/SHP
401 J3E
4.357.0
4-1 J3E
4A LTD
601 J3E
6.501.0
2501 J3E
26.145.0
25-1 J3E
FAX
4001 FSK
4.210.5
ITU FSK
channels*
ITU SSB channels*
DUP
TX
RX
DSC
F
AGC
ALM
If appears, push [CE] to delete it.
☞ NOTE: Channel name (alphanumeric) may not
appear during channel indication depending on
set mode settings (p. 14).
CHANNEL GROUPS
CHANNEL NO. DESCRIPTION
1 to 160 User channels*
1
401 to 427 4 MHz ITU duplex channels
4-1 to 4-9 4 MHz ITU simplex channels
601 to 608 6 MHz ITU duplex channels
6-1 to 6-9 6 MHz ITU simplex channels
801 to 832 8 MHz ITU duplex channels
8-1 to 8-9 8 MHz ITU simplex channels
1201 to 1241 12 MHz ITU duplex channels
12-1 to 12-9 12 MHz ITU simplex channels
CHANNEL NO. DESCRIPTION
1601to 1656 16 MHz ITU duplex channels
16-1 to 16-9 16 MHz ITU simplex channels
1801 to 1815 18 MHz ITU duplex channels
18-1 to 18-9 18 MHz ITU simplex channels
2201 to 2253 22 MHz ITU duplex channels
22-1 to 22-9 22 MHz ITU simplex channels
2501 to 2510 25 MHz ITU duplex channels
25-1 to 25-9 25 MHz ITU simplex channels
4001 to 25040 ITU FSK duplex channels*
2
*
1
[GROUP] selector changes in 20 channels steps.
*
2
SITOR use—no group separation.
