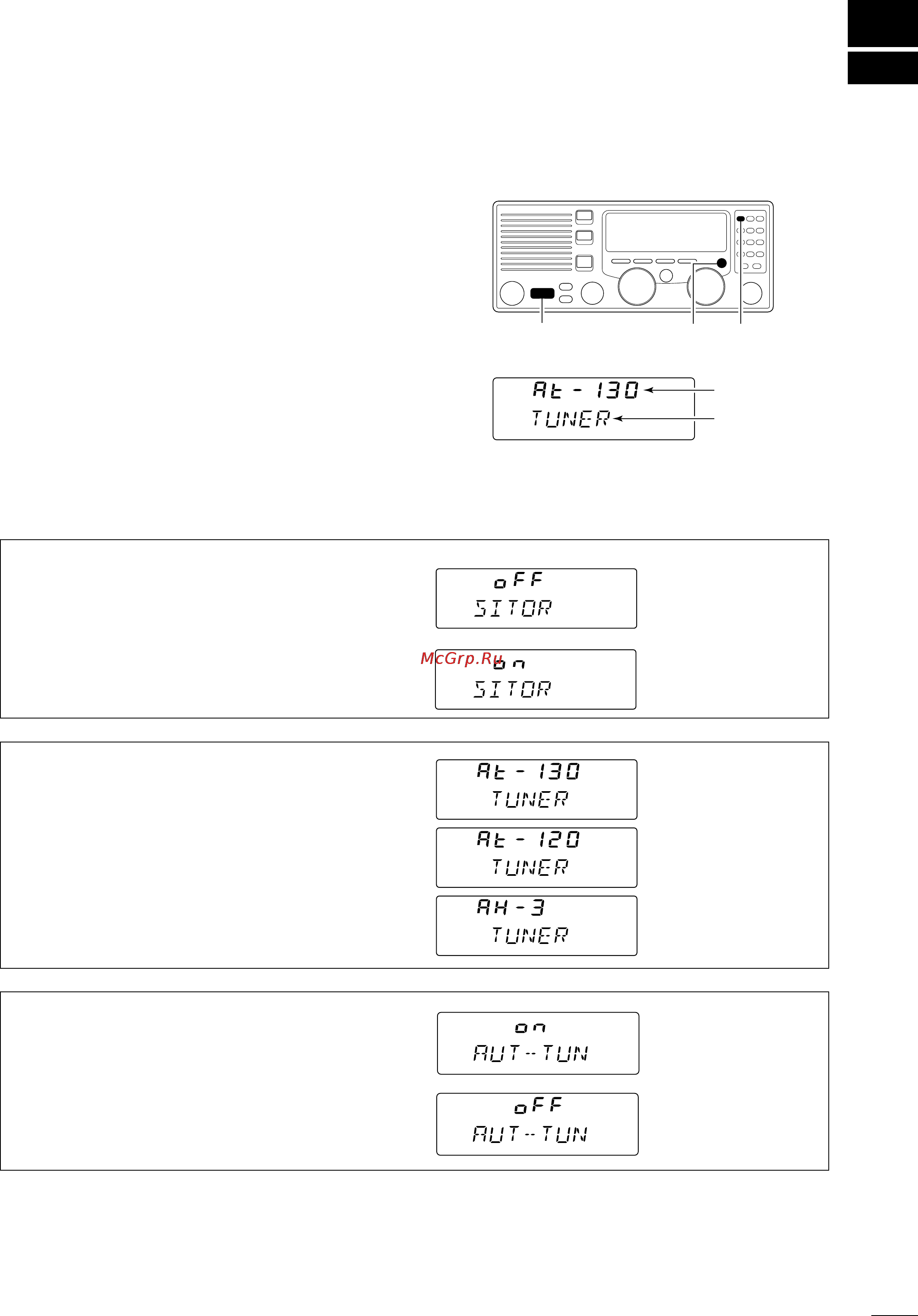

SET MODE
■ Set mode operation
Set mode operation is used for programming infre-
quently changed values or conditions of functions.
✍ NOTE: Some of the set mode items described in
this section are not available on some transceiver
versions.
➀ Push [POWER] to turn power off, if necessary.
➁ While pushing [FUNC] + [1], push [POWER] to turn
power on and enter set mode.
➂ Rotate the [GROUP] selector to select the desired
item.
➃ Rotate the [CHANNEL] selector to set the values or
conditions for the selected item.
➄ Turn power off and on again to exit set mode.
TX
RX
DSC
F
AGC
ALM
[POWER] [FUNC] [1]
Condition
Item
■ Set mode contents
(2) Connected antenna tuner
The transceiver has several tuner control systems for
use with an optional Icom antenna tuner. Select the
condition depending on the connected antenna tuner.
☞ NOTE: Internal switch selection may be required
when using a non-Icom tuner (p. 23).
AT-130
(default)
AT-120
AH-3
(3) Automatic tuning condition
When the optional AT-130 or AT-130E automatic an-
tenna tuner is connected, tuning can be started auto-
matically without the [TUNE] switch, for instant
operation.
If manual tuning is required, this automatic operation
can be deactivated.
Tuning starts when pushing
[PTT] on a new frqeuency.
Tuning starts only when
[TUNE] is pushed.
(default)
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
(1) FSK ITU channels
FSK ITU channels appear as a group between the
ITU 25 MHz band and user channels. This FSK chan-
nel group can be hidden for voice communication
only.
FSK channels don’t appear
(no SITOR operation).
(default)
FSK channels appear (for
SITOR operation).
