24
7
CONNECTIONS AND INSTALLATION

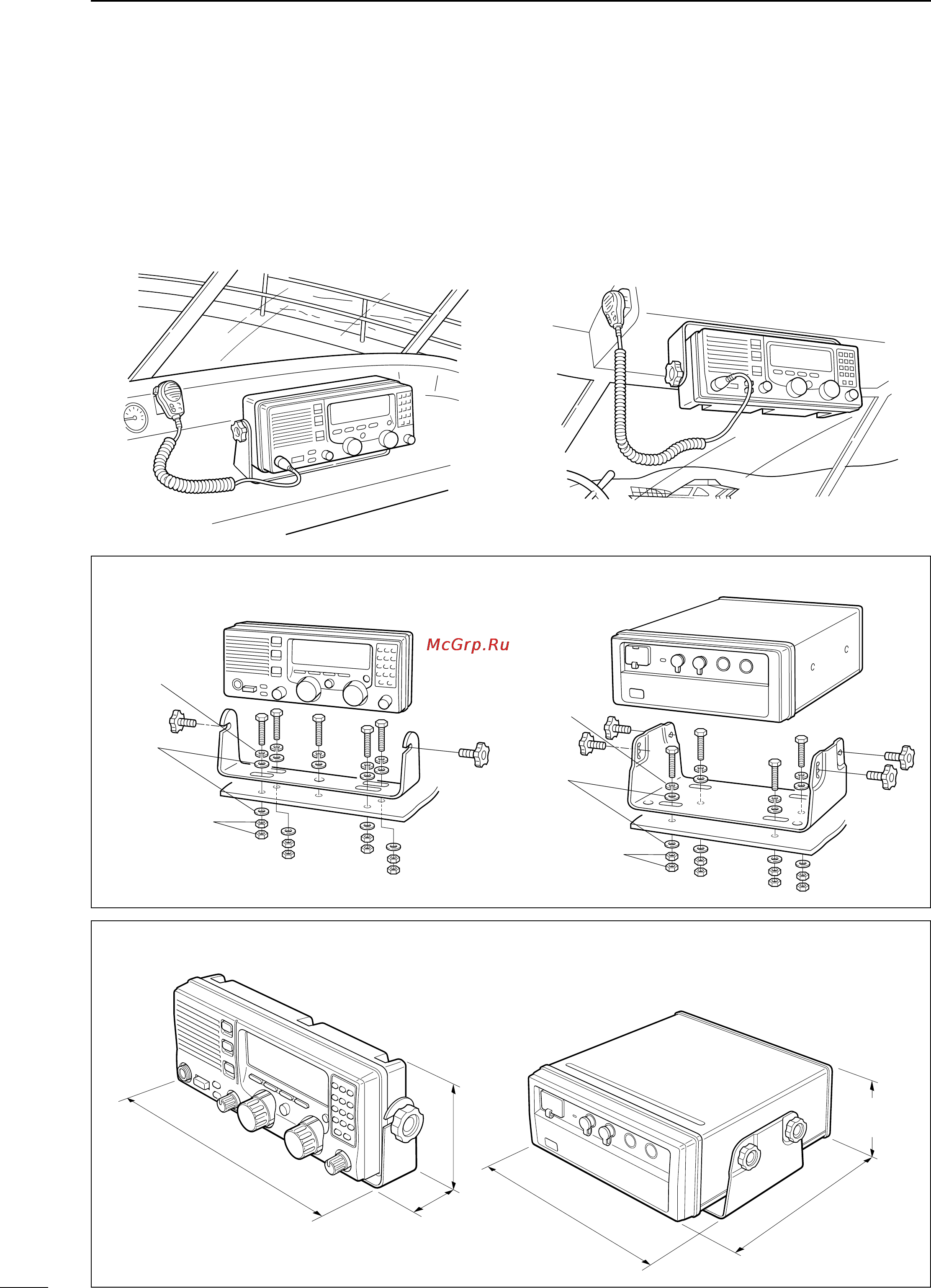

■ Mounting
D Mounting location
Select a location that provides easy access to the front
panel for navigation safety, has good ventilation and is
not subject to sea spray. The controller should be at 90
degrees to your line of sight when operating it.
u CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic nav-
igation compass.
Check the installation angle; the display may not be
easy to read at some angles.
D Mounting the controller/main body
D Transceiver dimensions
Spring washer
Flat
washers
Nuts
(Use two nuts to
prevent loosening)
Spring washer
Flat
washers
Nuts
(Use two nuts to
prevent loosening)
292 mm (11
1
⁄2 in)
66 mm
(2
19
⁄32 in)
116 mm
(4
9
⁄16 in)
317 mm
(12
15
⁄16 in)
292 mm
(11
1
⁄2 in)
116 mm
(4
9
⁄16 in)
IC-M710RT.qxd 02.1.9 9:03 Page 24
