SELECTING A CHANNEL/FREQUENCY
■ Selecting a frequency
The transceiver has 0.5 to 30.0 MHz general coverage
receive capability with 100 Hz resolution. The receive
frequency can be changed instantly, independent of
the transmit frequency.
☞ NOTE: The selected frequency is used for tempo-
rary receiving (transmitting is not available). This
frequency is cleared once the channel is changed.
If you want to program a frequency, refer to p. 12.
D Using the keypad
☞ CAUTION: A frequency can be entered into a
user channel or ITU simplex channel by pushing
the [RX] key. However, when pushing and hold-
ing the [RX] key after entering a frequency, the
previously programmed contents are erased and
cannot be retrieved. Therefore, keypad entry
should be used only on spare channels.
➀ Select the memory channel to be used for general
coverage use.
➁ Push [CE] to select frequency selection mode.
➂ Enter the desired frequency with 5 or 6 digits.
➃ Push [RX] to input the frequency.
• Do not hold [RX] for more than 0.5 sec., otherwise the
frequency will be programmed into the channel.

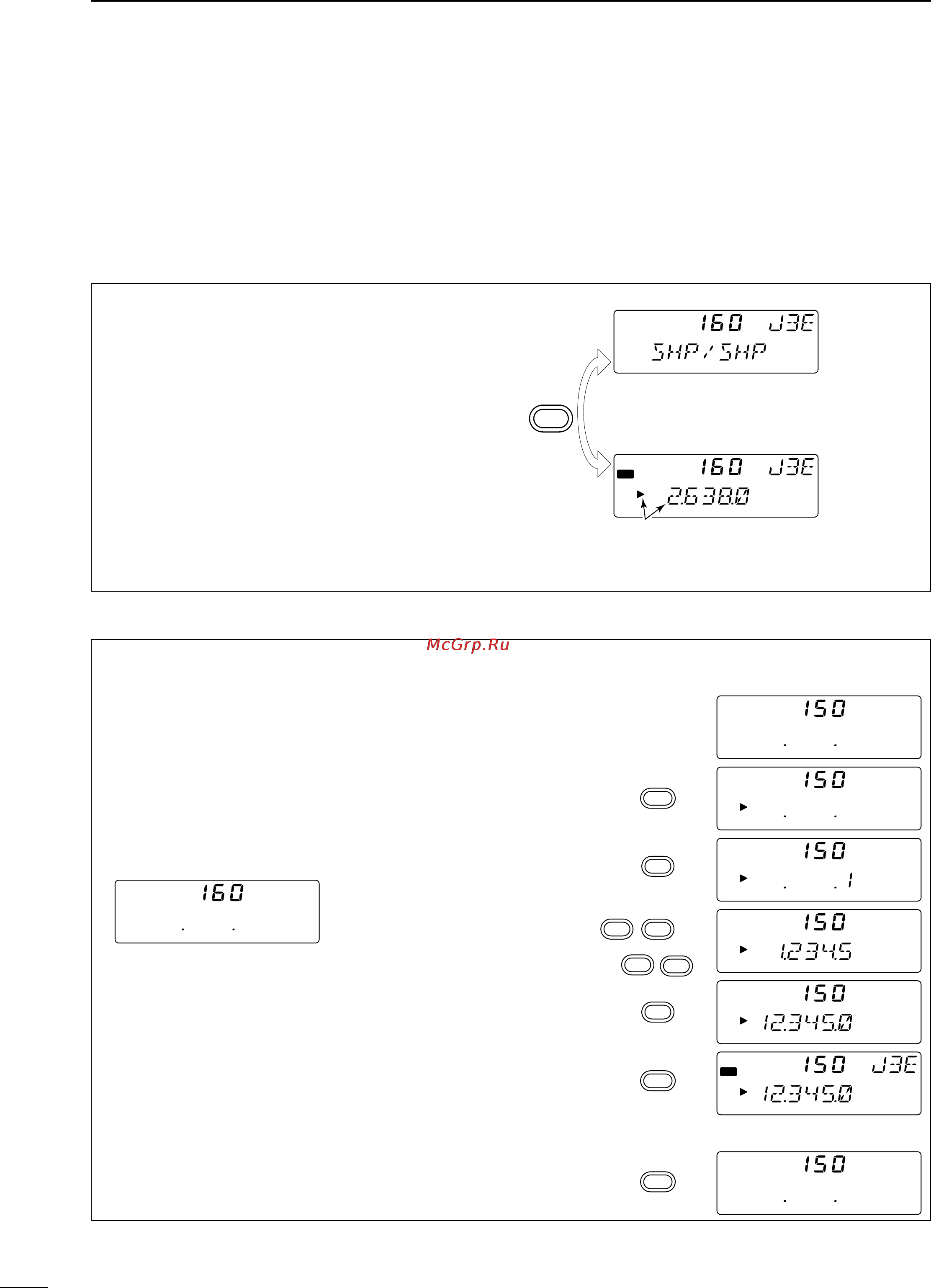

[EXAMPLE]: Setting 12.3450 MHz
D Using the channel selector
➀
Select a channel which is programmed near the
frequency you want to receive.
➁ Push the [CE] key to select frequency selection
mode.
•“s” appears on the display.
➂ Rotate the [CHANNEL] selector to change the fre-
quency.
➃ To return to the previous frequency, push [CE].
•“s” disappears and the previous frequency or channel
name appears.
TX
RX
DSC
F
AGC
ALM
No frqeuency programmed channel for general
coverage use.
(mode and channel name do not appear)
DUP
TX
RX
DSC
F
AGC
ALM
DUP
TX
RX
DSC
F
AGC
ALM
No “≈” indicator shows that the channel will
be changed when rotating [CHANNEL].
“≈” and frequency show that the frequency
will be changed.
CE
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
Select non frqeuency
programmed channel.
After temporarily receiving.
1
5
3
RX
2
4
0
CE
CE
(momentarily)
