Icom IC-M710RT [6/32] Panel description
![Icom IC-M710RT [6/32] Panel description](/views2/1074674/page6/bg6.png)
2
2

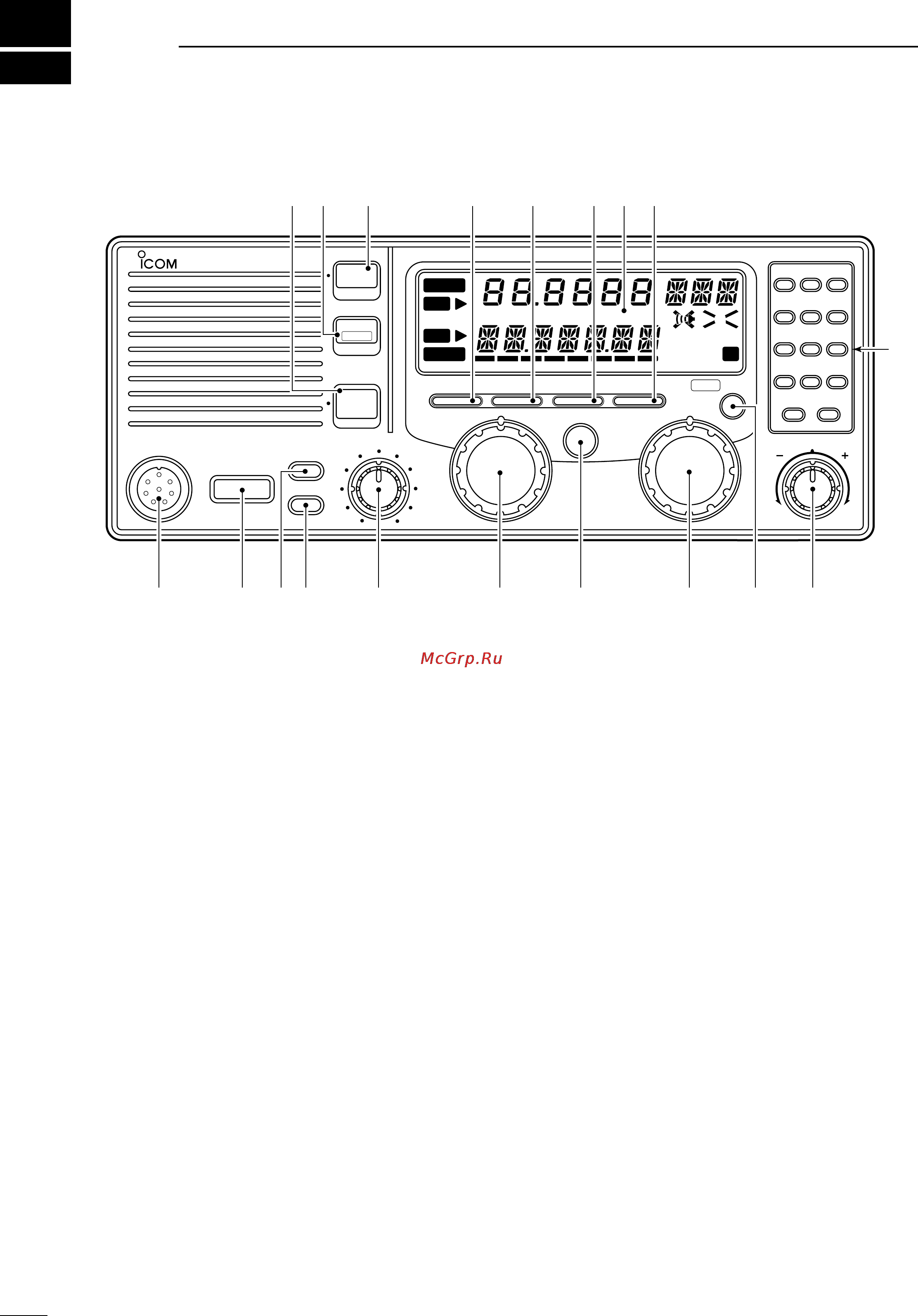

PANEL DESCRIPTION
■ Front panel (controller)
q MICROPHONE CONNECTOR (p. 20)
Accepts the supplied microphone or an optional
handset.
☞ NOTE: No audio is output via the speaker when the
microphone or handset is not connected.
w POWER SWITCH [POWER]
Turns power on and off.
e SPEAKER SWITCH [SPEAKER]
Turns the built-in speaker on and off.
•“è” appears in the display while the speaker is turned
off.
• Any external speaker connected to the rear panel is not
turned off.
r DISPLAY INTENSITY SWITCH [DIMMER]
➥ Toggles the display backlight on and off.
➥ While pushing, rotate [CHANNEL] to adjust the
backlighting to one of 4 levels.
➥ While pushing, rotate [GROUP] to adjust the dis-
play contrast to one of 10 levels.
t VOLUME CONTROL [VOLUME]
Adjusts the audio output level.
• Audio does not come from the speaker when:
➟ A microphone is not connected.
➟ The [SQL] switch is turned on and no signal is being
received.
y GROUP CHANNEL SELECTOR [GROUP]
Selects groups in 20 channel steps and ITU marine
channel groups.
☞ NOTE: Some versions have no ITU channels.
u ANTENNA TUNE SWITCH [TUNE] (p. 9)
Tunes the connected tuner to the antenna.
• Activates only when an optional antenna tuner such as
Icom’s AT-130/E is connected.
☞ NOTE: When selecting “automatic tuning” in set
mode, pushing this switch is not necessary to tune
the antenna. (p. 13)
i CHANNEL SELECTOR [CHANNEL] (p. 6)
➥ Selects an operating channel within the selected
channel group such as ITU channels.
• User channels can be selected from 1 to 160 (max.)
in sequence regardless of the channel group.
➥ Changes the operating frequency* after [CE] is
pushed (while “s” appears).
• The changed frequency is not programmed in this
way.
o FUNCTION SWITCH [FUNC]
After pushing, activates the secondary functions of
these switches:
[RESET] . . Deactivates external control such as
from a DSC terminal unit when con-
nected.
[SQL] . . . . . Starts and stops scan (p. 7).
[SPEAKER] Activates intercom function (p. 17).
[RX] . . . . . . Sets RF gain (p. 10).
[TX] . . . . . . Selects transmit power (p. 9).
[CE] . . . . . . Reprograms the channel name (p.
12).
☞ NOTE: Function availability depends on version.
!0 CLARITY CONTROL [CLARITY] (p. 10)
Shifts the receive frequency ±150 Hz for clear re-
ception of an off frequency signal.
TUNE
DUP SIMP STANDBY
TX
RX
DSC
FSCAN
SQL N B
AGC
AGC
A43210
ALM
MICROPHONE
POWER
VOLUME
ALARM
TX FREQ
2182KHz
RESET
MODE
TUNE
MF/HF MARINE TRANSCEIVER
AGC SQL FUNC
CLARITY
NB
SPEAKER
[ALARM] [TX FREQ]+
FOR ALARM TX
DIMMER
GROUP CHANNEL
123
456
789
CE
RX TX
0
–
CH/FREQ
iM 710
q w e r t y u i !0
!1
o
!2!3!4!5 !6!7!8!9
IC-M710RT.qxd 02.1.9 9:03 Page 2
