19
7
CONNECTIONS AND INSTALLATION
u TUNER RECEPTACLE
Connects a control cable to an optional AT-130 or
AT-130E
ANTENNA TUNER
. A female connector is
supplied for connection.
i DC POWER RECEPTACLE
Connects to a regulated 12–16 V DC power source
such as a 12 V battery or DC power supply using
the supplied DC power cable.
➣ CAUTION: DO NOT connect to a 24 V battery.
This will damage the transceiver.
o FUSE HOLDERS
Hold two 30 A fuses for +ve and –ve terminals. Re-
place both fuses when one fuse is blown.

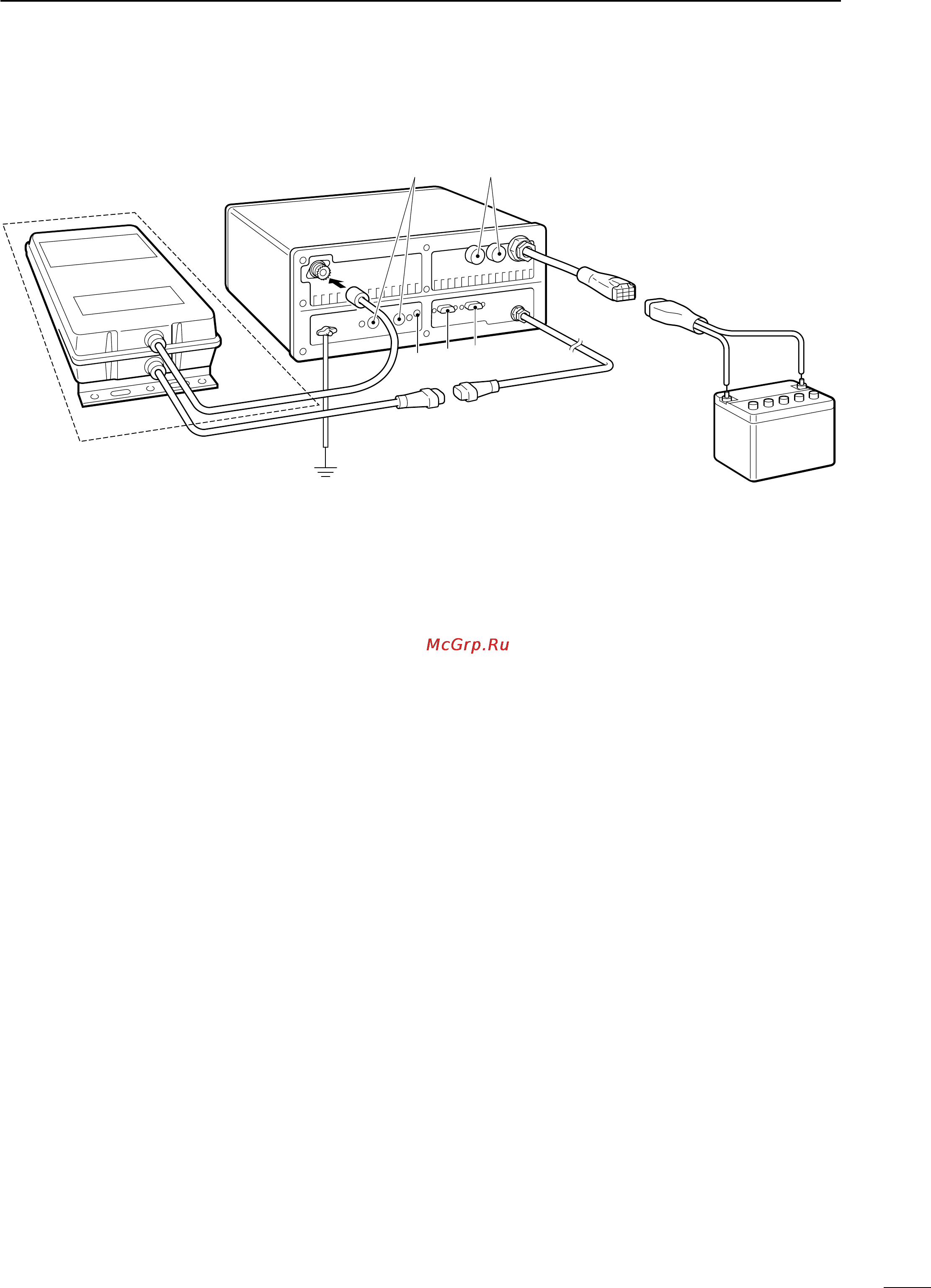

■ Connections on rear panel
q ANTENNA CONNECTOR (p. 23)
Connects a 50 Ω HF band antenna with a 50 Ω
matched coaxial cable and a PL-259 plug.
w GROUND TERMINAL
IMPORTANT! Connects a ship’s (or vehicle’s)
ground. See p. 22 for details.
e ACC(1) and ACC(2) SOCKETS
See p. 20 for details.
r CLONE JACK
For Dealer use only.
t DSC or REMOTE SOCKETS (p. 21)
➥ DSC socket for GMDSS versions—connects an
optional GM-110DSC
DSC TERMINAL UNIT
.
➥ REMOTE socket for Marine and General ver-
sions.
y MOD/AF SOCKET (GMDSS versions only)
Connects an external terminal unit.
q
w
r
t
y
u
i
oe
Optional AT-130
12 V battery
✍ NOTE: To meet European GMDSS reg-
ulations, the following must be con-
nected to the IC-M710RTGMDSS:
GM-110
DSC TERMINAL UNIT
PS-65 (or 66)
DC
-
DC CONVERTER UNIT
AT-130E
AUTOMATIC ANTENNA TUNER
IC-M710RT.qxd 02.1.9 9:03 Page 19
