5
2
PANEL DESCRIPTION

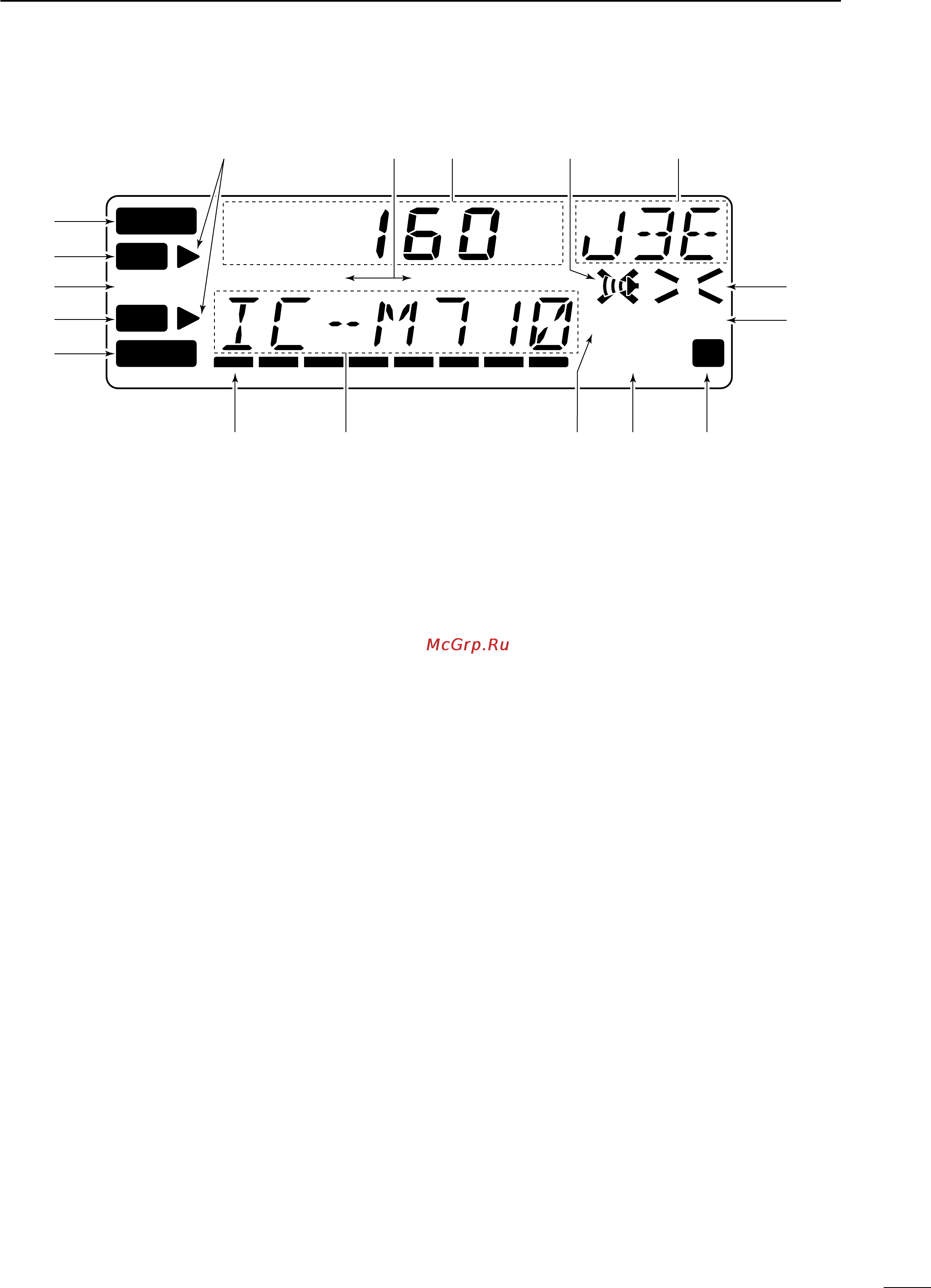

■ Display
q ALARM INDICATOR (p. iii)
Appears when the alarm function is activated such
as for an alarm test or distress alarm transmission.
• Not available in General version.
w RECEIVE INDICATOR (p. 10)
Appears while receiving and when the squelch is
open.
e TUNE INDICATOR (p. 9)
Flashes while the connected antenna tuner, such as
Icom’s AT-130, is being tuned.
• Tuning starts when transmitting on a new frequency or
pushing the [TUNE] switch.
r TRANSMIT INDICATOR
➥ Appears when transmitting. (p. 9)
➥ Flashes when the [TX] key is pushed for transmit
frequency programming. (p. 12)
t DSC INDICATOR (p. iii)
Appears when an optional GM-110DSC
DSC TERMI
-
NAL UNIT
controls transceiver functions.
• The GM-110DSC can be connected to GMDSS versions
only.
y S/RF METER
➥ Shows the relative received signal strength while
receiving.
➥ Shows output power while transmitting.
➥ Shows antenna current level when an optional
AT-130E
HF ANTENNA TUNER
is connected (Europe
versions only).
u CHANNEL/VFO INDICATOR
➥ Shows the pre-programmed channel name (al-
phanumeric) during channel indication. (p. 6)
• Some versions have no channel name function and
show receive frequency instead.
➥ Shows the transmit frequency during frequency
indication. (p. 6)
➥ Shows transmit channel number during cross
channel operation (Europe versions only). (p. 11)
TUNE
DUP SIMP
TX
RX
DSC
FSCAN
SQL N B
AGC
AGC
A43210
ALM
q
w
e
r
t
yu io!0
!1
!2
!3!4!5!6!7
i SQUELCH INDICATOR (p. 10)
Appears when the squelch is on.
o SCAN INDICATOR (p. 7)
Appears when the scan function is in use.
• The scan function is not available on some versions.
• Pushing [FUNC] then [SQL] starts and stops scan.
!0 FUNCTION INDICATOR
Appears when the [FUNC] switch is pushed.
!1 NOISE BLANKER INDICATOR (p. 10)
Appears when the [NB] switch is turned on.
!2 AGC OFF INDICATOR (p. 10)
Appears when the [AGC] switch is pushed to indi-
cate the AGC function is deactivated.
!3 MODE READOUT
Shows the selected operating mode (type of emis-
sion).
!4 SPEAKER OFF INDICATOR
Appears when the [SPEAKER] switch is pushed to
indicate the front panel speaker is deactivated.
!5 CHANNEL READOUT
➥ Shows the selected channel number during
channel indication. (p. 6)
➥ Shows the receive frequency during frequency in-
dication. (p. 9)
!6 SIMPLEX/DUPLEX INDICATORS
These appear to show whether the selected chan-
nel is simplex or duplex.
!7 FREQUENCY INDICATORS (p. 8)
Appear when the frequency entry condition* is se-
lected for frequency selection.
• The [CE] key toggles the indicator ON and OFF.
* Some versions have no frequency entry condition.
IC-M710RT.qxd 02.1.9 9:03 Page 5
