15
6
SET MODE
(11) Microphone keys
This item activates/deactivates the keys on the HM-
120
HAND MICROPHONE
(“P”, “Y” and “Z”). Refer to
p. 4 to program the “P” key.
Microphone keys
activated.
(default)
Microphone keys
deactivated.
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM
(12) Remote control busy timer
This sets the time for which operation of one remote
controller is inhibited while operating the other. The
timer can be set from 0 to 180 sec.
(13) ID number setting for remote control
When connecting an external controller such as a
personal computer, 2-digit ID codes are required to
access the transceiver. The IC-M701RT adopts
NMEA0183 format and uses a “proprietary sentence”
for remote control. ID 01 to 99 are available.
(14) Remote control input terminal
Remote control signals can be input via the [RS-
232C] socket or [CLONE] jack.
[REMOTE] socket
(default)
[CLONE] jack
TX
RX
DSC
F
AGC
ALM
TX
RX
DSC
F
AGC
ALM

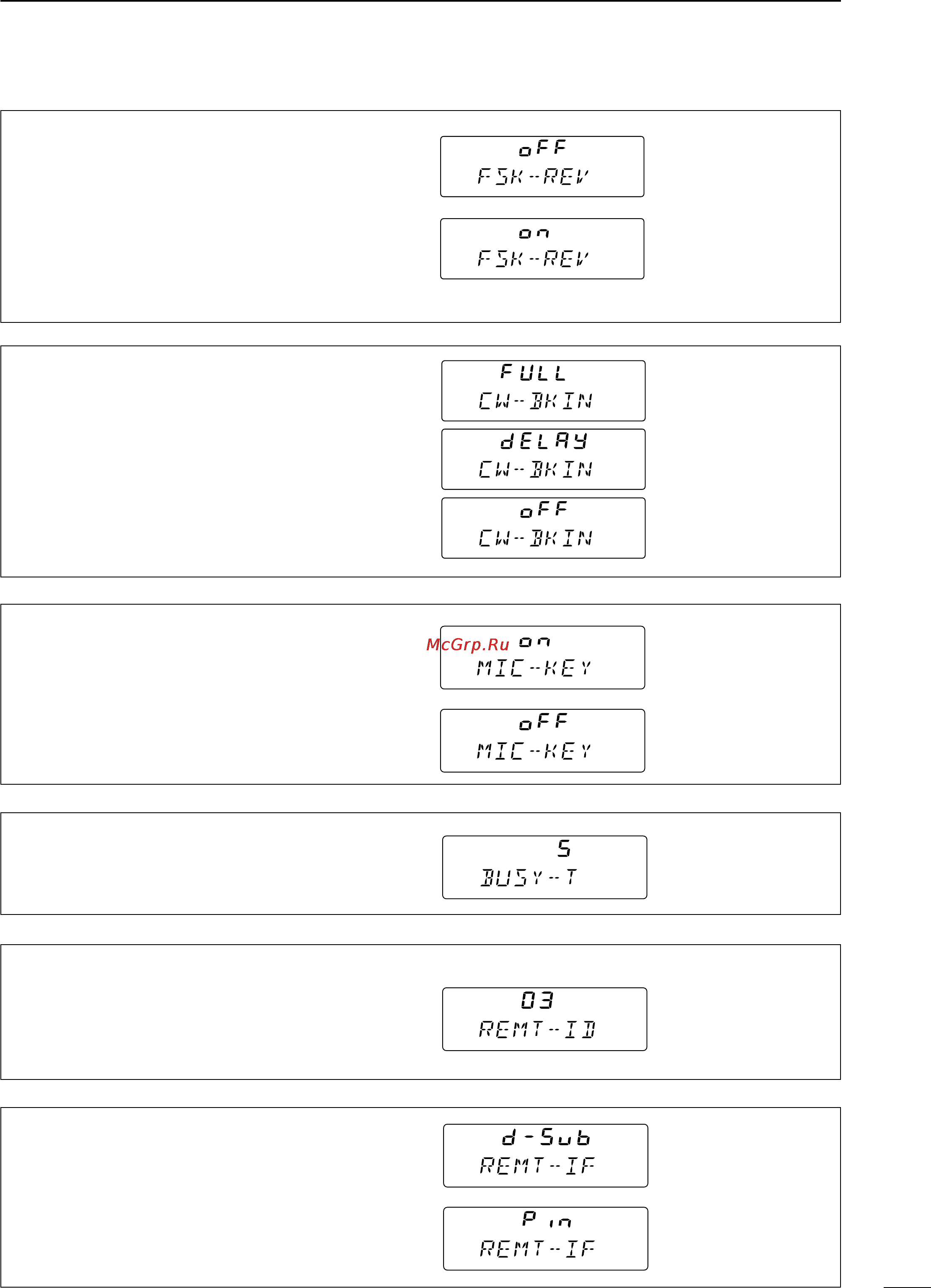

(9) FSK polarity
Normal and reverse polarities are available for FSK
operation. This item allows you to select one of these
polarities.
“FSK-REV off” (normal):
key open (mark); key close (space)
“FSK-REV on” (reverse):
key open (space); key close (mark)
FSK normal
(default)
FSK reverse
(10) CW break-in
The CW break-in function (in A1A mode) toggles
transmit and receive with CW keying. Full break-in al-
lows you to receive signals between transmitted key-
ing pulses during CW transmission. Semi break-in
allows you to mute receiving until keying stops with
some delay time.
Full break-in
Automatic keying without
delay time
(default)
Semi break-in
Automatic keying with delay
time
OFF
Manual transmission
necessary for keying
Busy timer: 5 sec.
(default)
TX
RX
DSC
F
AGC
ALM
NMEA ID: 03
(default)
TX
RX
DSC
F
AGC
ALM
