Si12-308A Outdoor Unit (80 / 90 Class)
Removal Procedure 219
3

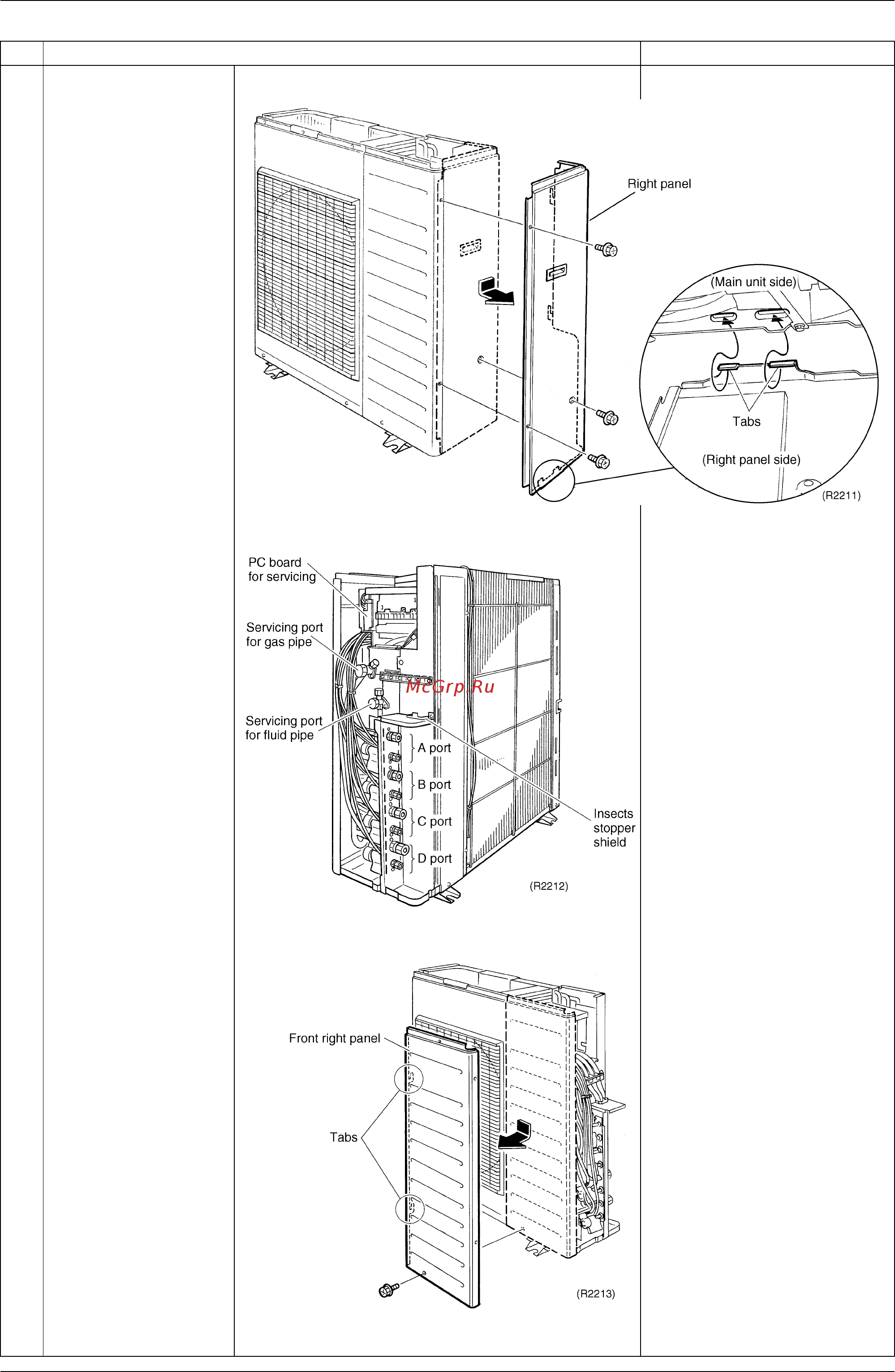

Unscrew 3 screws of
the right panel, slide it
downwards and release
the tabs to remove.
4
The figure shows the
view of piping
connections.
5
Unscrew 1 screw of the
front right panel, slide it
downwards and release
the tabs to remove.
Step
Procedure Points
