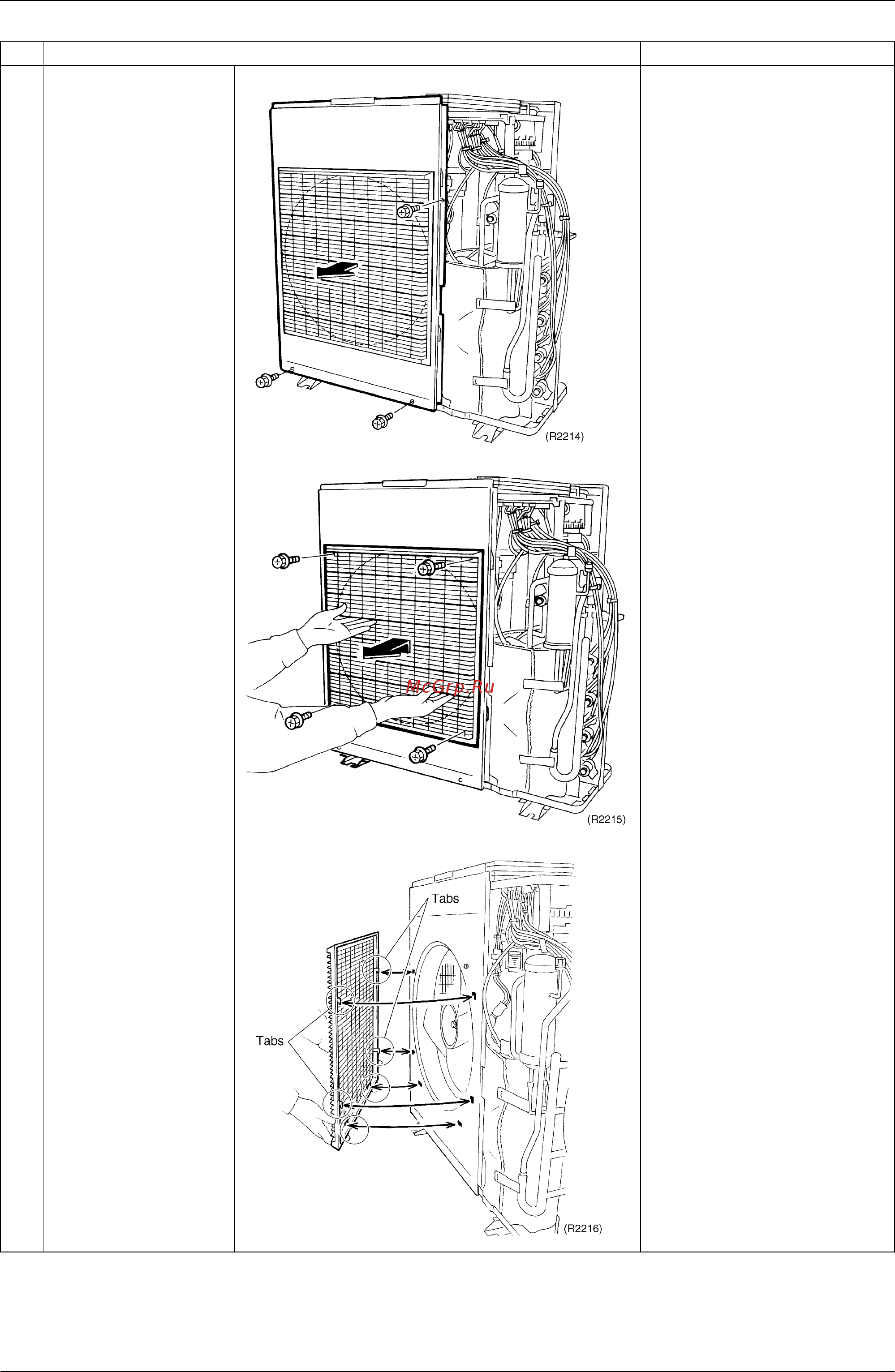

Outdoor Unit (80 / 90 Class) Si12-308A
220 Removal Procedure
6
Unscrew 3 screws of
the front panel to
remove.
7
Remove 4 screws of
the discharge outlet
grill.
8
Slide the discharge
outlet grill upwards and
release 6 tabs to
remove.
Step
Procedure Points
