Daikin FDBG71AVE [37/50] Overall sound level
![Daikin FDBG71AVE [37/50] Overall sound level](/views2/1764572/page37/bg25.png)
Sound Level ED41-015B
36 FDBG-A Series

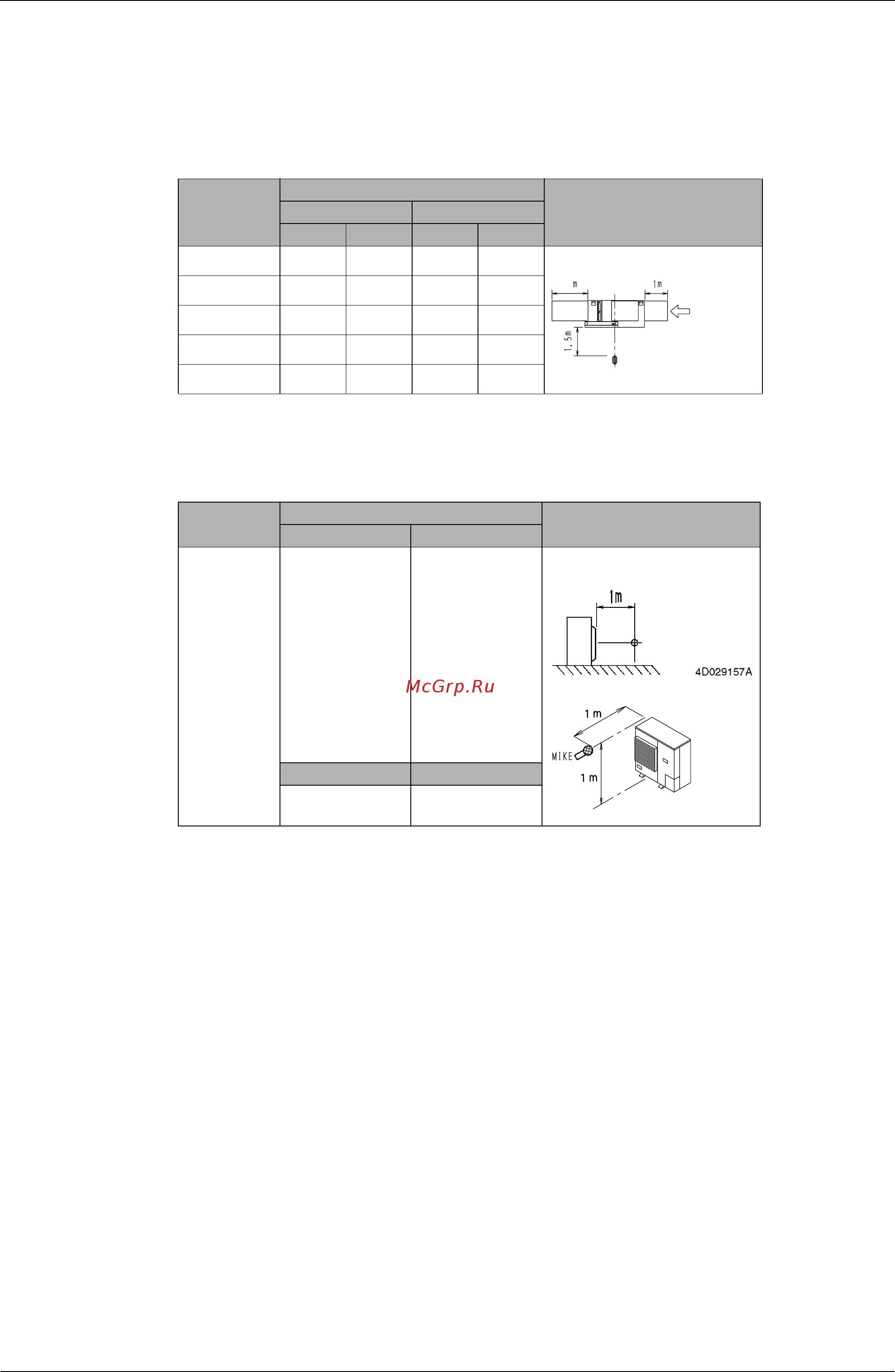

12.Sound Level
12.1 Sound Level
12.1.1 Overall Sound Level
Indoor Unit
Note : Sound level will be raised more than 5dB, if a suction grille is put exactly under the fan.
Outdoor Unit
Note: Operation sound is measured in an anechoic chamber.
dB(A)
Model
50Hz
Measuring Location220V 240V
H L H L
FDBG25AVE 41 38 43 40
FDBG-A
FDBG35AVE 41 38 43 40
FDBG50AVE 41 38 43 40
FDBG60AVE 42 39 45 42
FDBG71AVE 42 39 45 42
Microphone
(P1022)
2
AIR
(SUCTION SIDE)
DUCT
DUCT
dB(A)
Model
50Hz
Measuring Location
220V 240V
R25JV1 46 48
R25 · 35J
R50 · 60G
R71FU
R35JV1 48 49
R50GV1 49 50
R60GV1
R60GV1K
54
54
55
55
R71FUV1 52 —
380V 415V
R71FUY1 52 —
4D002309
