ED41-015B Installation
FDBG-A Series 45

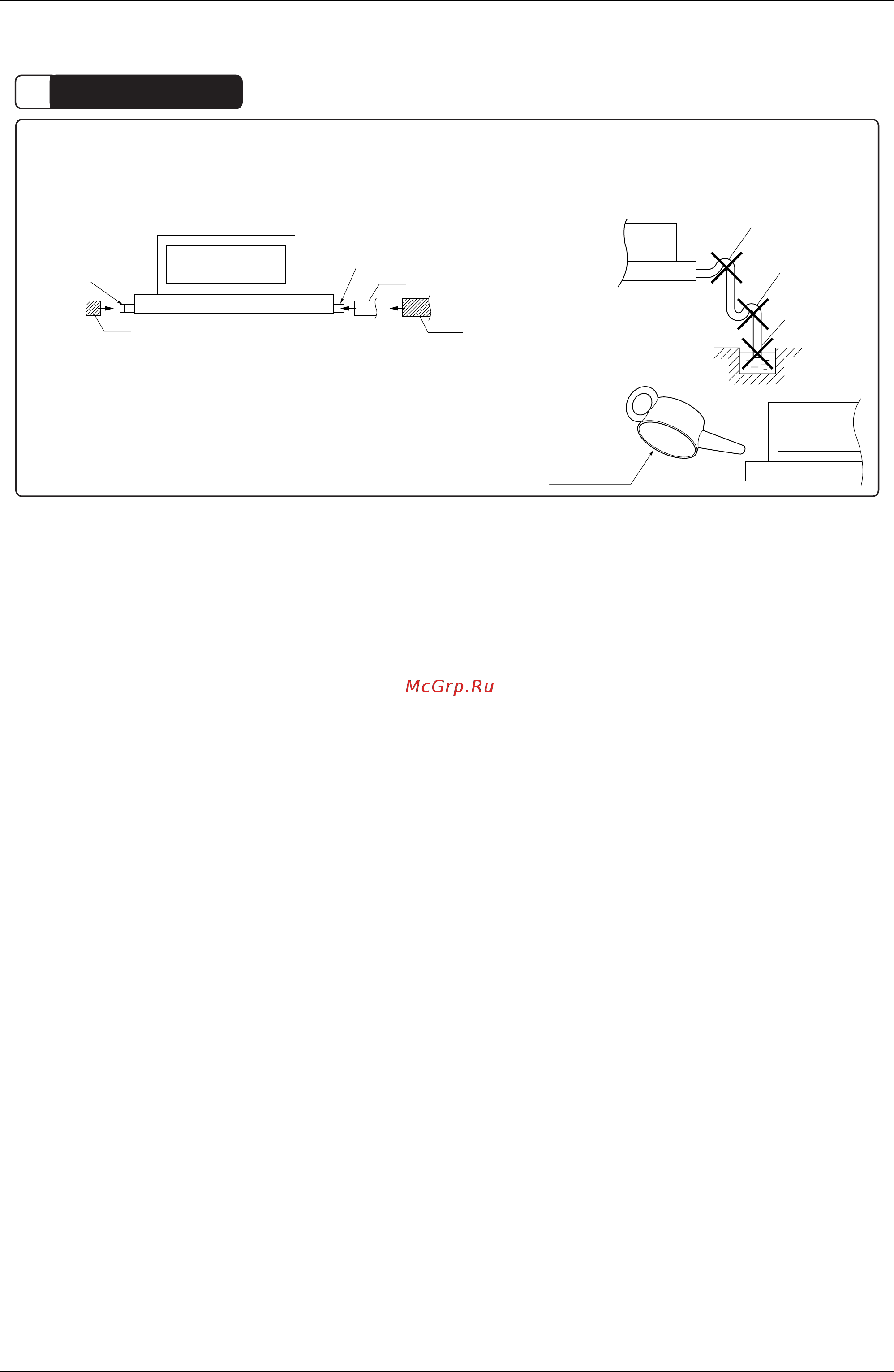

7 Drain Piping Work
■ Connect the drain pipe as described below.
• It is necessary to clean the drainpan.
• The drain pipe outlet can be either on the right or left side.
• After making the connection, wrap the drain pipes completely with insulation.
• When connecting the drain pipe to the outlet on the left side, remove the rubber plug and attach it to the outlet on the right side.
■ Pour some water into the drain pan to check that the water drains smoothly.
■ Make sure that water does not leak from the drain piping,
connecting parts and the drain plug.
Completely insulate.
Drain pipe (3/4 B)
Nominal diameter 26
Completely insulate.
Rubber plug
Watering can
Do not raise.
Do not leave
in water.
Do not bend.
Units: mm
C : 1PN04069-1A-5
