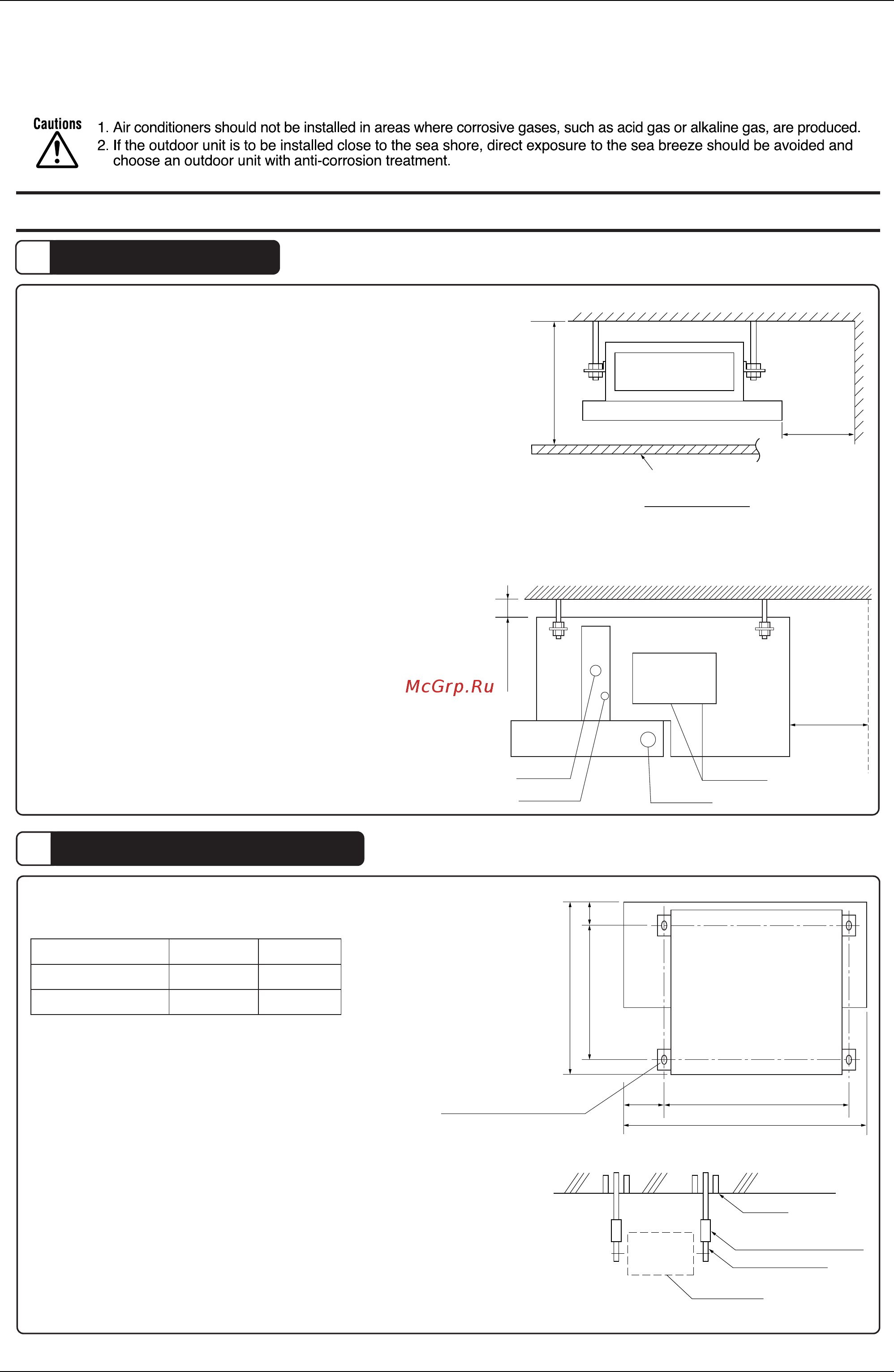

ED41-015B Installation
FDBG-A Series 41
15.Installation
15.1 FDBG-A Series
1 Selecting the Location
■ Select an installation site that fulfills the following condi-
tions and meets the customer’s approval.
• Optimum air distribution is ensured.
• The air passage is not blocked.
• Condensate can drain properly.
• The ceiling is strong enough to bear the weight of the indoor unit.
• A false ceiling does not seem to be at an incline.
• Sufficient clearance for maintenance and servicing is ensured.
• Piping between the indoor and outdoor units is within the allowable
limits. (Refer to the installation manual for the outdoor unit.)
• The indoor unit, outdoor unit, power supply wiring and transmission
wiring is at least 1 meter away from televisions and radios. This
prevents image interference and noise in electrical appliances.
(Noise may be generated depending on the conditions under which
the electric wave is generated, even if a one-meter allowance is
maintained.)
• Ambient air of the indoor unit is not so dusty.
Drain piping may be clogged with dust and may result in water leak-
age and property damage.
(When obliged to install the indoor unit in a dusty place, install the
optional Dust Cover which prevent dust from falling into drainpan.)
■ When exposing the body of this unit, install the unit where
the bottom is move than 2.5 m high so that the user can not
touch.
■ Use suspension bolts to install the unit. Check whether or
not the ceiling is strong enough to support the weight of
the unit. If there is a risk that the ceiling is not strong
enough, reinforce the ceiling before installing the unit.
2 Preparations Before Installation
■ Relation of the unit to the suspension bolt positions
Units: mm
Model A B
FDBG25 · 35 · 50AVE 755 900
FDBG60 · 71AVE
1 155 1300
Units: mm
(Suspension
bolt
pitch)
500
55
(Suspension bolt pitch)
A
126
B
580
Suspension bolt (M10x4)
Suspension bolt
(Installation example)
Ceiling slab
Long nut or turn-buckle
Anchor
Indoor unit
NOTE) All of the above parts are commercially available.
■ Install the suspension bolts.
(Use M10-size bolts for the suspension bolts.)
In order to reinforce the ceiling bearing the weight of the unit, use anchors
when installing onto an existing ceiling or use sunken inserts, sunken
anchors or other commercially available parts when installing onto a new
ceiling.
NOTES)
• Above H* is the minimum size of the indoor unit.
• Extra 20-30 mm is necessary to connect gas pipes.
Determine size H* based on 1/100 of the required
downward inclination indicated in “DRAIN PIPING
WORK”.
Gas pipe
Liquid pipe
Drain pipe
Wiring port
H* 270
(Min.)
300 or more
Units: mm
(Service space)
Ceiling
10 or more
C : 1PN04069-1A-1
INSTALLING THE INDOOR UNIT
400 or more
In case of
bottom
suction
( )
