Service Mode ESIE15-13C
22 Remote Controller
3.2 BRC1E52/53
3.2.1 Display service data

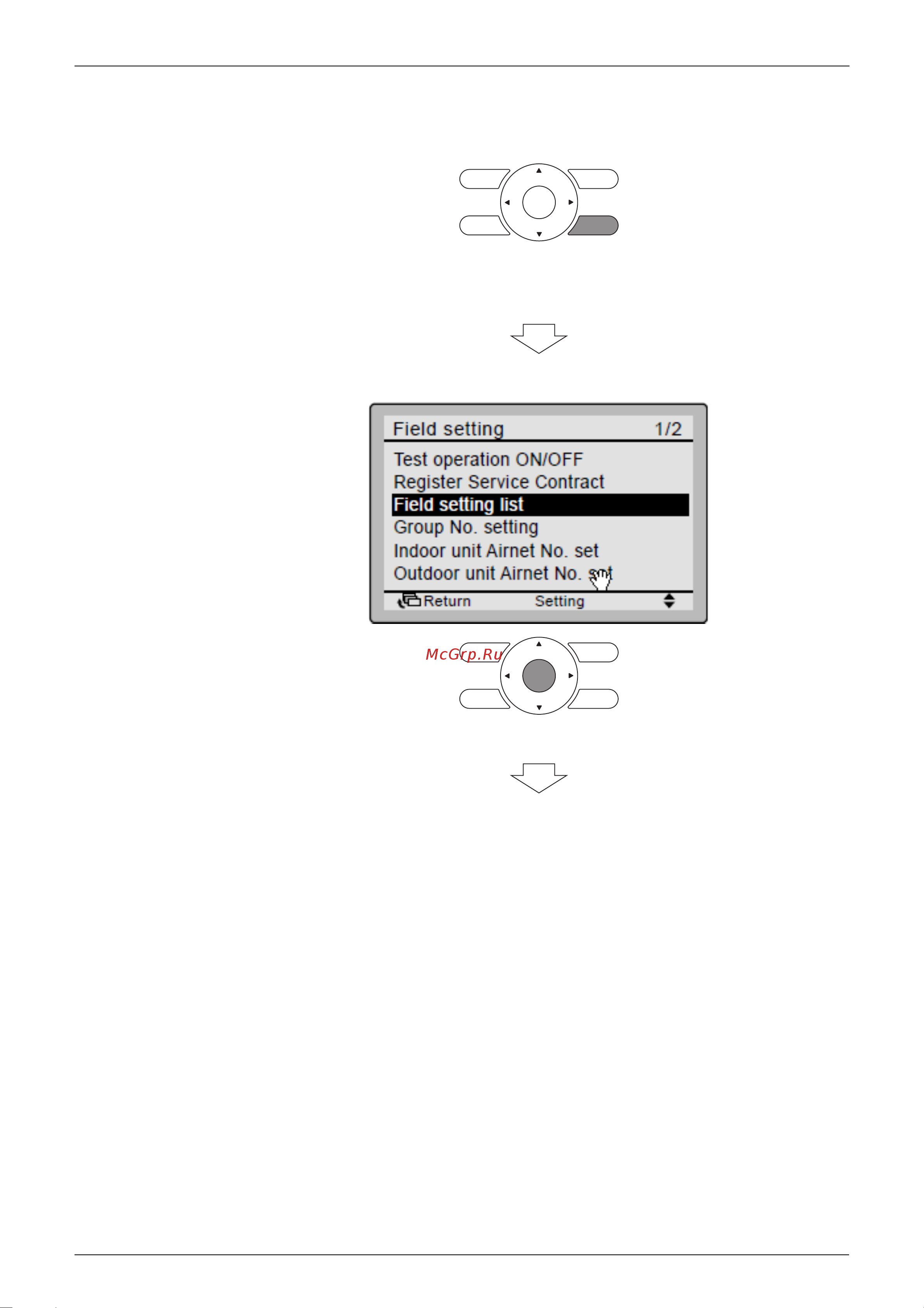

Press and hold Cancel button
for 4 seconds or longer during
backlight lit.
Select “Field setting list”
Press Menu/Enter button.
In the case of setting per indoor unit during group control
(When Mode No. such as 20, 21, 22, 23, 25 are
selected), highlight the unit No. and select "Indoor unit
No." to be set by using
(Up/Down) button. (In the
case of group total setting, this operation is not needed.)
