Indoor Unit SiBE05-312
116 Removal Procedure
4

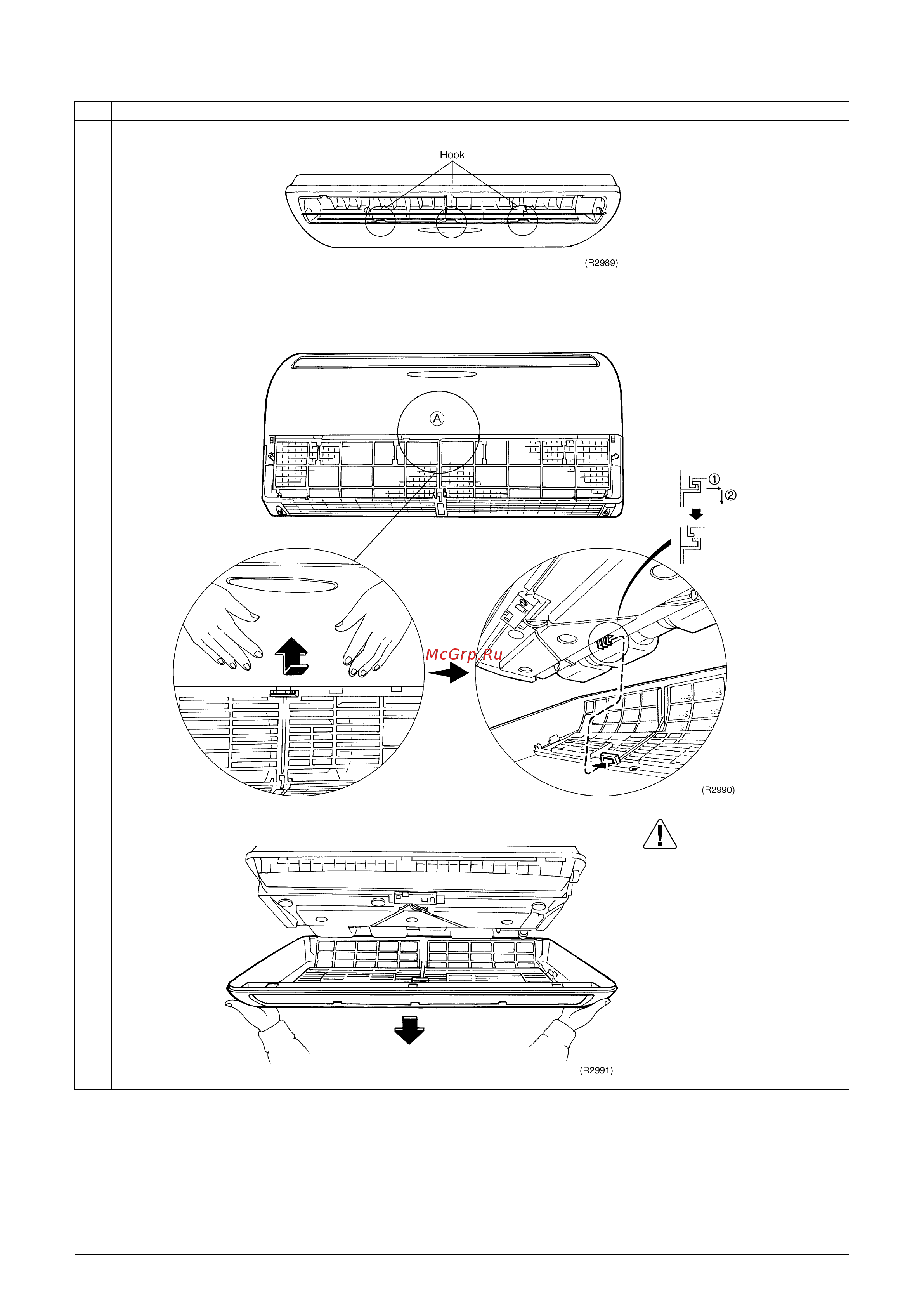

Disengage the three
hooks of the front panel
located at discharge
port.
5
Press A-section slightly
at the center of the front
panel, and disengage
hook.
6
Remove the front panel.
Caution
For ceiling-suspended type,
be careful that the front panel
may fall when hooks are
disengaged. To prevent the
front panel from falling down,
this service work should be
done by two persons.
