Daikin RXS50BVMB [129/178] Removal of the drain pan
![Daikin RXS50BVMB [129/178] Removal of the drain pan](/views2/1773512/page129/bg81.png)
Indoor Unit SiBE05-312
120 Removal Procedure

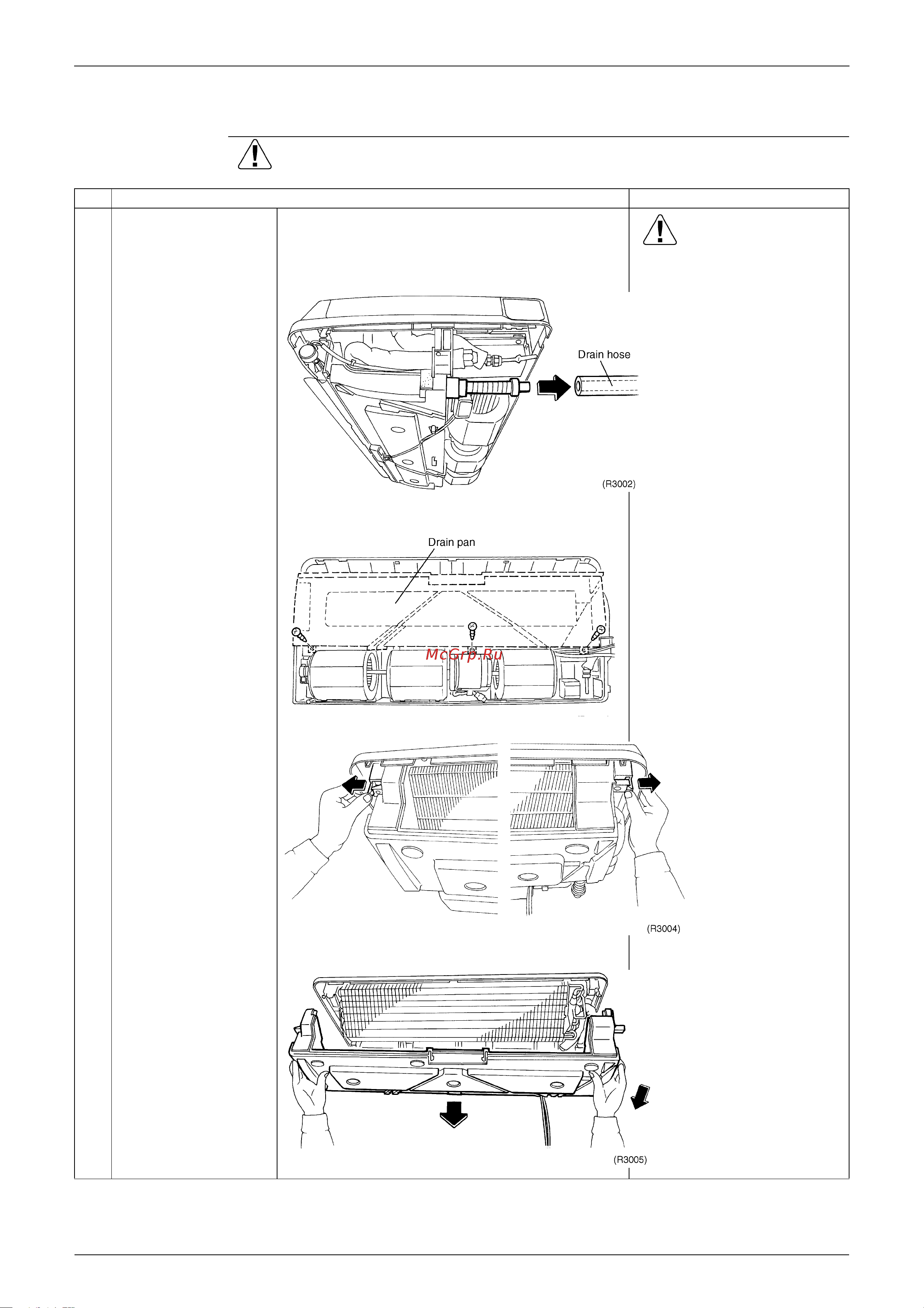

1.6 Removal of the Drain Pan
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Disconnect the drain
hose.
Caution
Be careful not to wet the floor
with drain water.
2
Remove the three
screws securing the
suction side of the drain
pan.
3
Disengage the two
hooks located at both
left and right sides of
discharge port.
4
Slide the drain pan
toward the suction side
and remove it.
