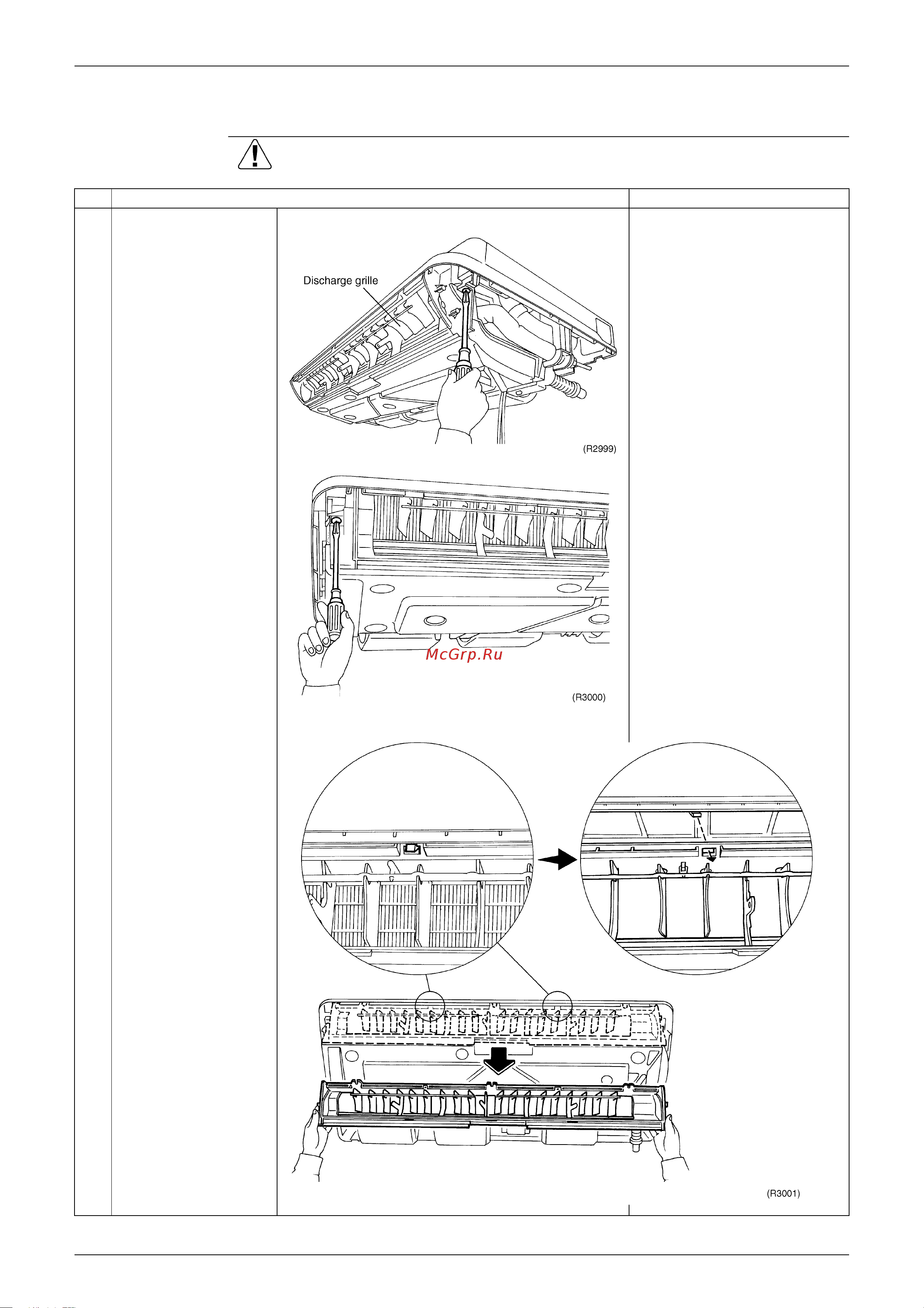

SiBE05-312 Indoor Unit
Removal Procedure 119
1.5 Removal of the Discharge Grille
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Remove the two screws
securing discharge
grille.
2
Disengage the two
hooks (left and right
sides) and remove the
discharge grille by
pulling forward.
