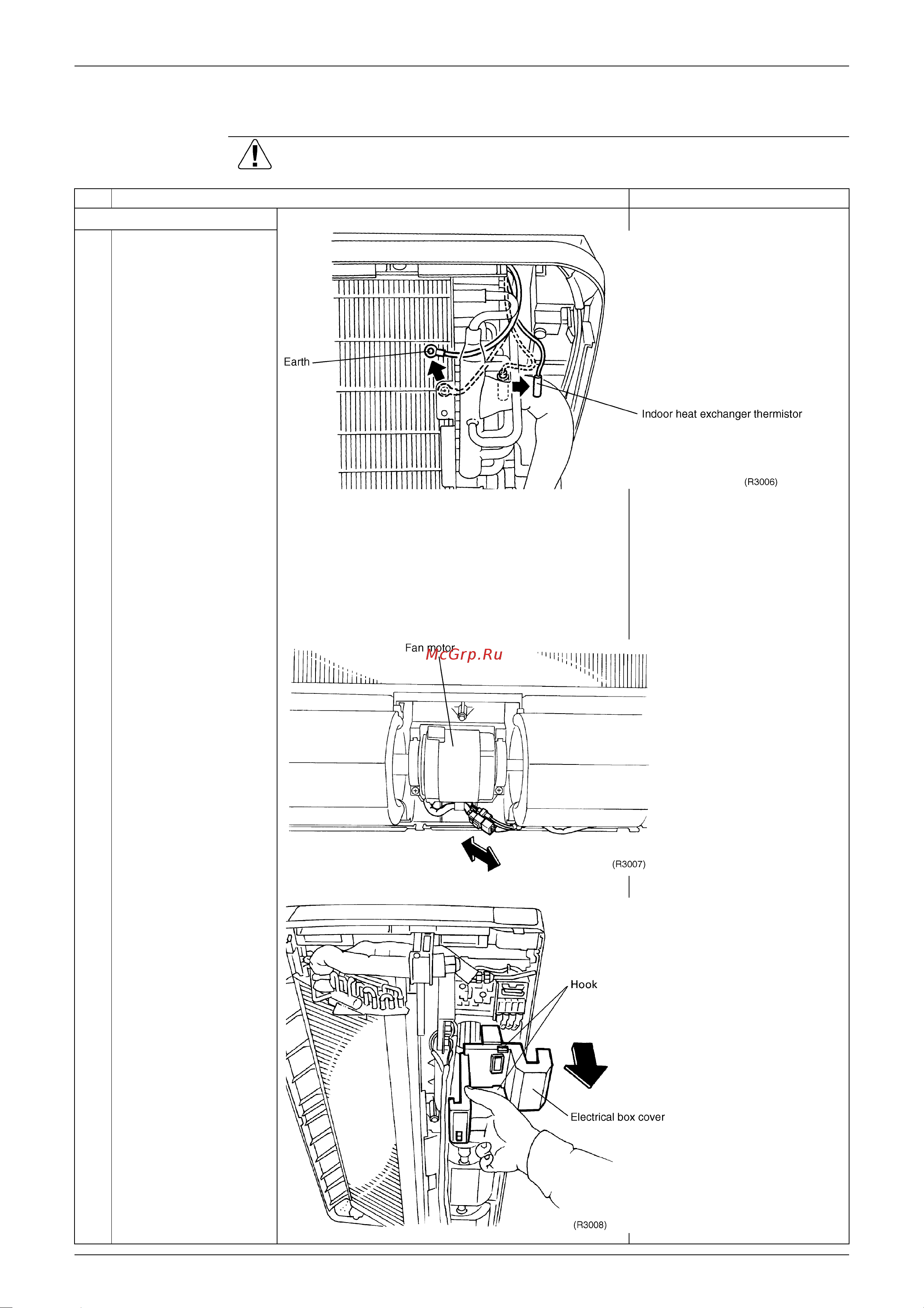

SiBE05-312 Indoor Unit
Removal Procedure 121
1.7 Removal of the Electrical Box / PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the PCB.
Clamp harnesses and wires
with clips as they were when
reassembling. Negligence of
above procedure may result
in catching wire with front
cover and causes
malfunction.
1
Disconnect the earth
wire and the indoor
heat exchanger
thermistor harness.
2
Remove the two
connection wirings at
the rear side of the fan
motor.
3
Remove the electrical
box cover.
(Disengage the two
hooks.)
