SiBE05-312 Indoor Unit
Removal Procedure 115

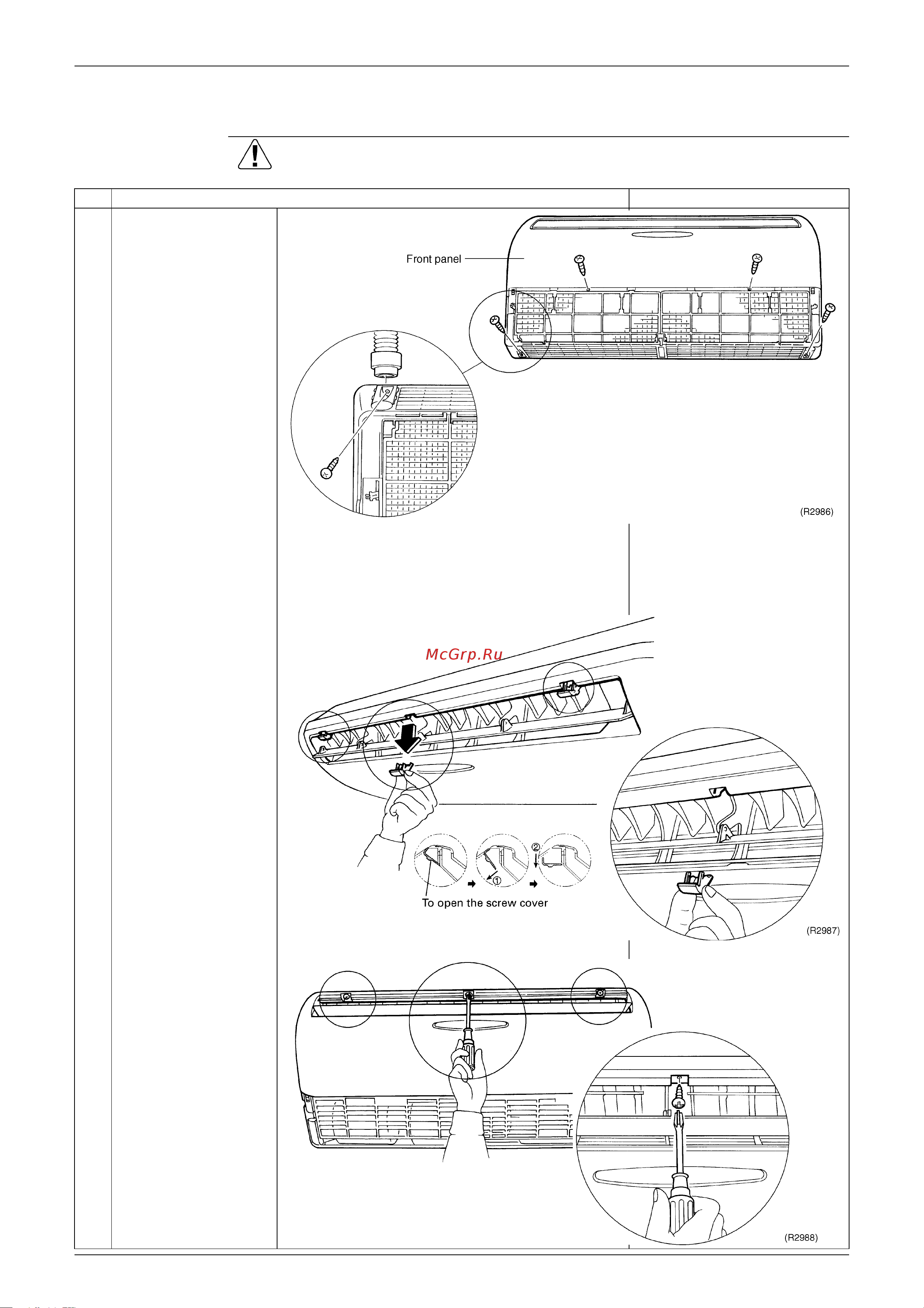

1.2 Removal of the Front Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Remove the four
screws located at the
back of the front panel.
Note:
For the ceiling-suspended type,
remove drain hose before
removing the screws.
2
Remove the three
screw covers at the
front of the front panel.
3
Remove the three
screws.
