Indoor Unit SiBE05-312
114 Removal Procedure
2

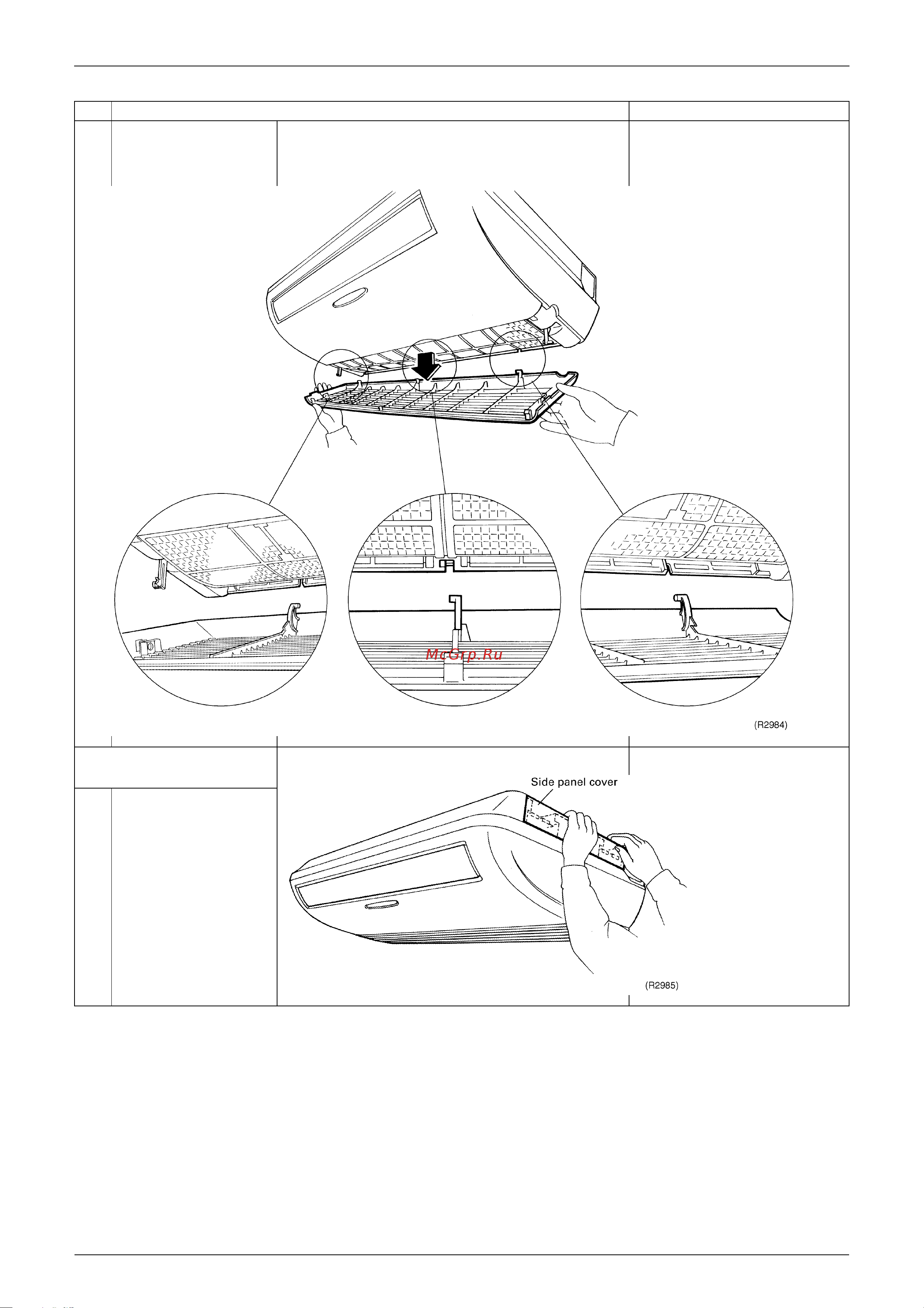

To remove the front
grille, disengage hooks
at three locations.
4. Remove the side panel
cover.
1
Remove the side panel
cover for removing of
suspension parts.
Note:
If it is difficult to remove
side panel from outside
with finger, remove
front panel first, then
push side panel from
inside of unit to outside.
